AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 11

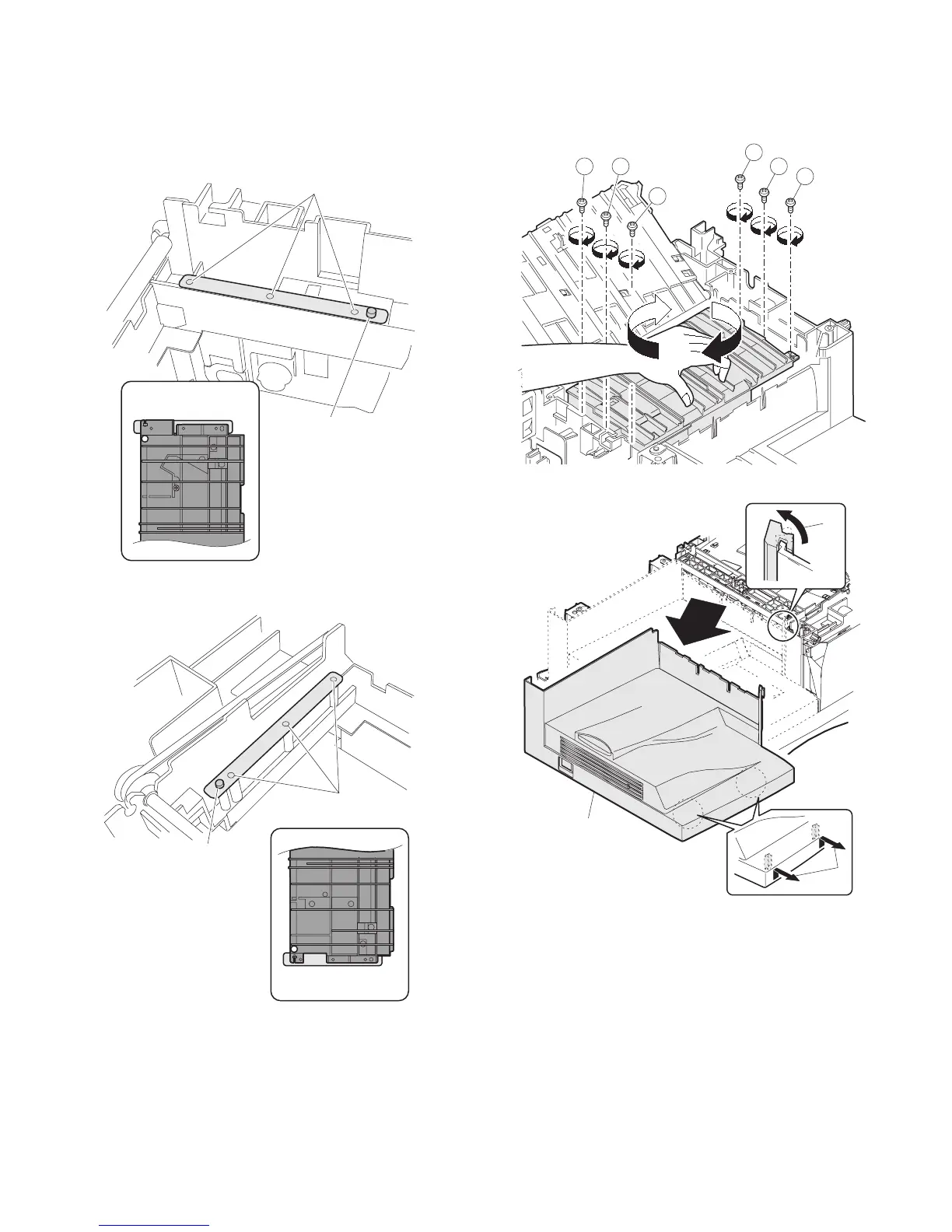

Addition of the spacer
Scan inclination classification 1: Add the LSU spacer to the rear
side of the machine.
Scan inclination classification 2: No need to add the spacer.
Scan inclination classification 3: Add the LSU spacer to the front
side of the machine.
[Note for assembling the LSU]
When installing the LSU, turn the LSU clockwise and fix with
screws in order to provide an attachment backlash in the proper
direction.
Observe the following sequence of fixing screws.
16) Remove each pawl, and remove the paper exit tray.
Insert into the
positioning boss.
Fit the holes and attach.
<Machine rear side>
Machine front side
Insert into the
positioning boss.
Fit the holes and attach.
<Machine front side>
1
3
5
2 4
6
2)
1)
3)
