AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 25

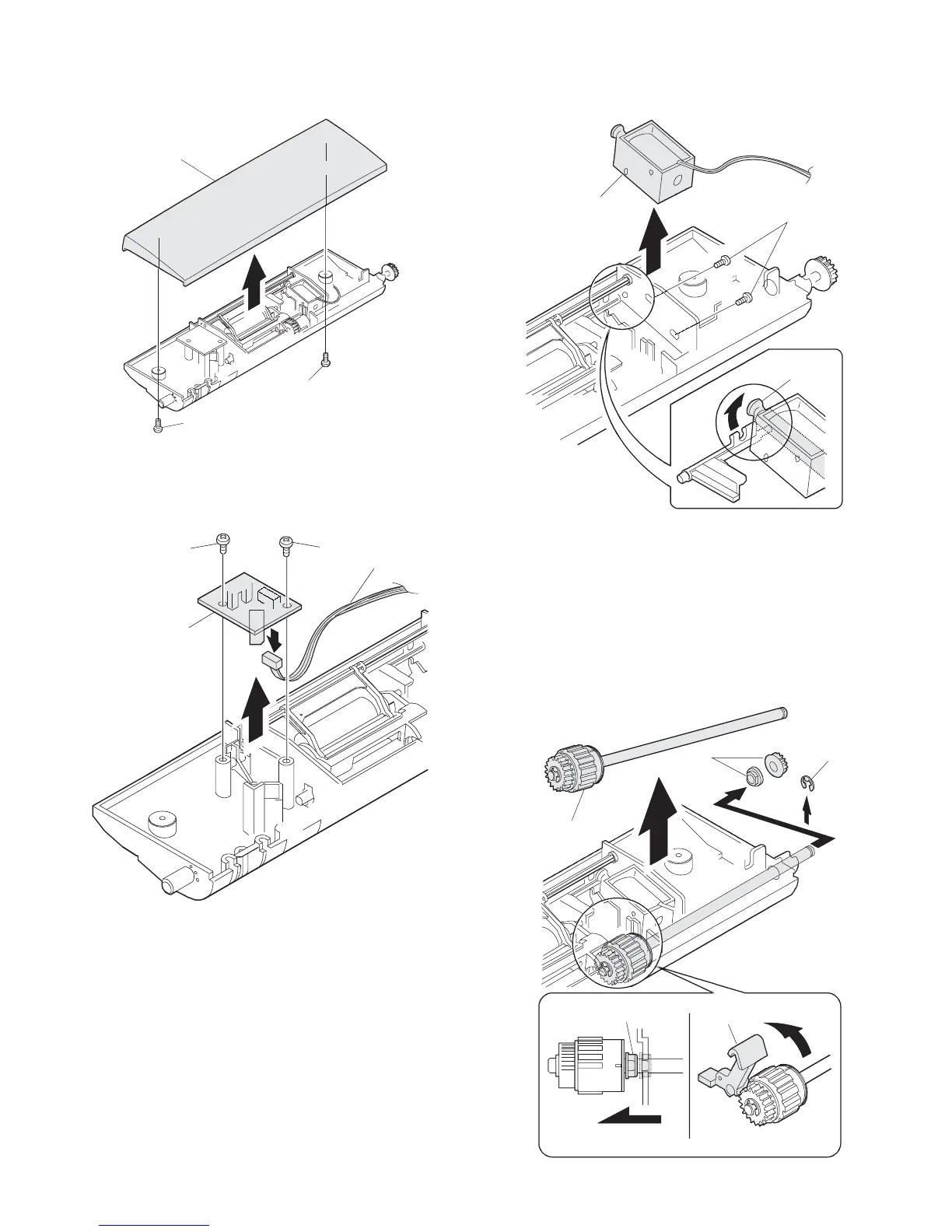

E. Upper cover of the pickup unit.
1) Remove two screws from the bottom of the pickup unit.
2) Remove the upper cover.
F. Sensor PWB
1) Remove two screws.
2) Remove the sensor PWB.
3) Remove the harness.
G. Pickup solenoid
1) Remove two screws.
2) Remove the pickup solenoid.
Note: When reassembling, hang the iron core on the solenoid arm.
H. Clutch
(1) Remove the clutch unit.
1) Remove the E-ring.
2) Remove the pulley and the bush.
3) Slide the bush in the arrow direction.
4) Lift the clutch pawl.
5) Remove the clutch unit.
1
2
1
1
1
2
3
1
2
A
1
5
2
4
3
To Next Page
