E-23
ENGLISH

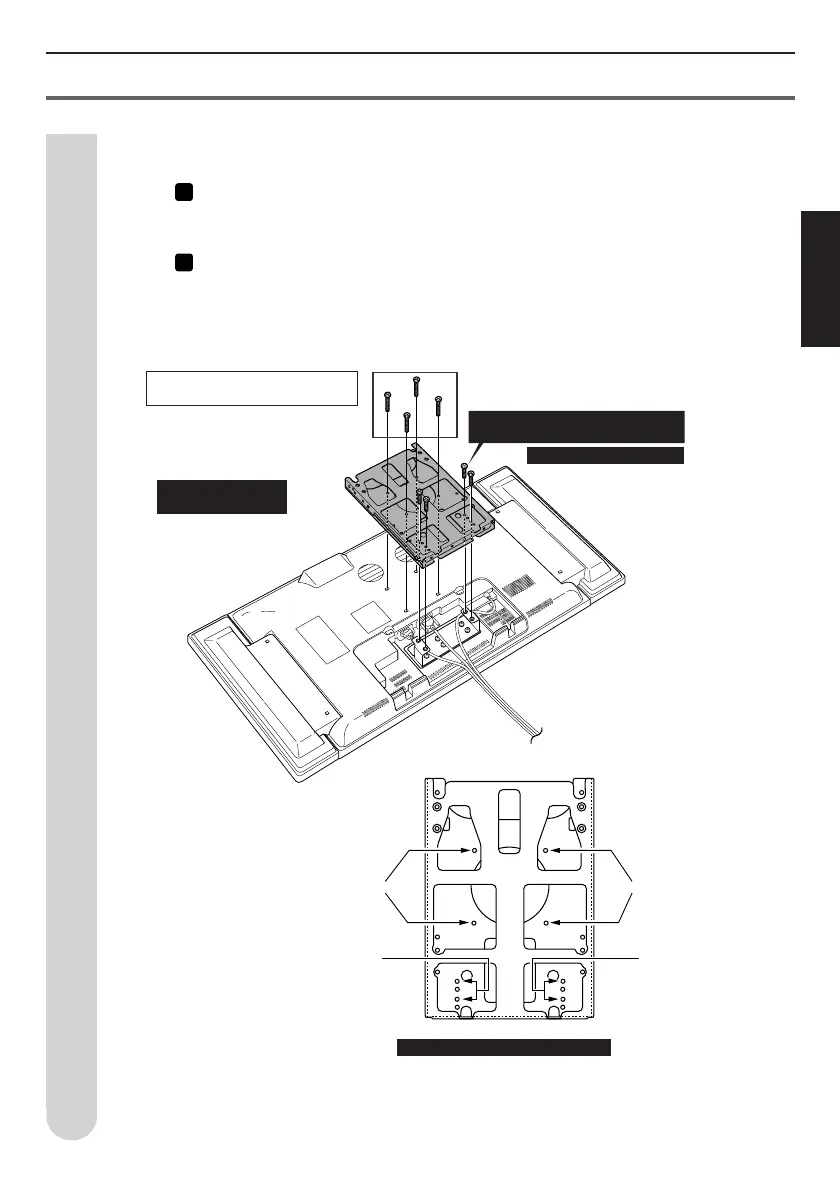

Installing the wall-mount bracket
Remove the 4 screws installed in the back of the unit and align the screw holes of
the wall-mount bracket (Mark B: 4 locations) with the locations from which the
screws were removed. Use the 4 removed screws to fasten the wall-mount bracket.
Align the wall-mount bracket screw holes (Marked “D” when using the attachment
bracket HV: 4 locations) with the attachment bracket screws (4 locations) and fasten
securely using the 4 included attachment installation screws (M4 length: 12mm).
Screws included in the back of
the LCD color TV.
Included part:
Wall-mount bracket
Included part:
M4 screws 12mm length (4 screws)
For attachment installation
Mark B
Mark D
(Attachment bracket HV)
(Attachment bracket HV)
Mark B
Mark D
Included part: Wall-mount bracket
5
Installing the wall-mount bracket (For Model 30 inch Separate Type) (Continued)
AN-37AG2E 04.8.10, 7:00 PMPage 23 AdobePageMaker6.5J/PPC
To Next Page
