SD Card Memory
Stores MFP PWB program data, fax image data and font data (4GB)
2
CF Card Memory
Memory for Intel Atom Processor
3
DIMM Memory 2
Not Used
4
DSK Flash Memory
Stores the DSK program data
5
Printer Flash Memory
Stores the printer program data
6
DIMM Memory 3
Memory for the printer (DDR 512MB 800MHz)
7
DIMM Memory 4
Memory for XPS (DDR 1GB 800MHz)
3
1
2
4
5
6

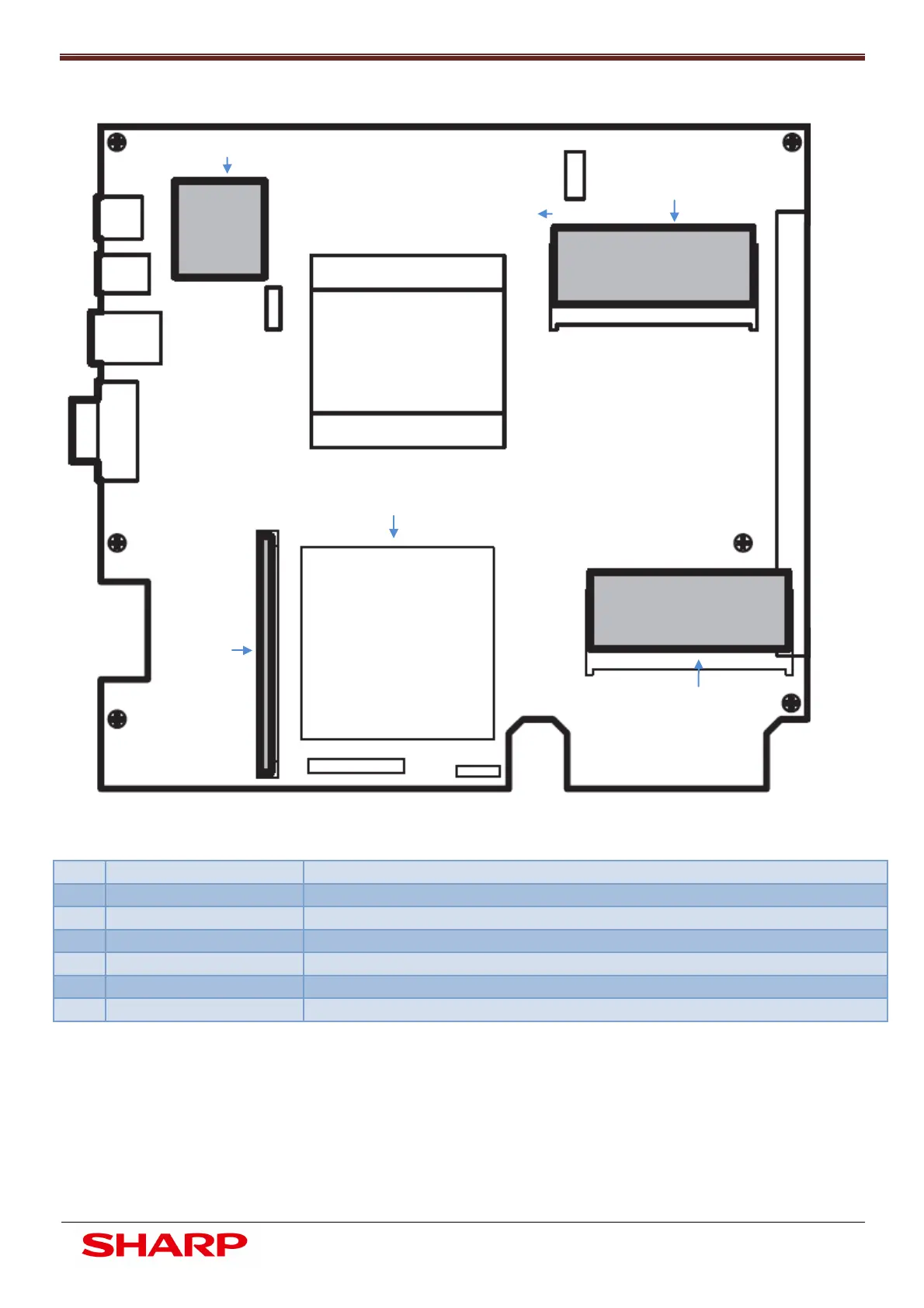

MFP & MX-PB14 Memory locations
