AQUOS LINK connection
First connect the AQUOS AUDIO speaker system or an AQUOS BD player that supports the HDMI CEC protocol.
NOTE
• Refer to the operation manual of the device to be connected for further details.
• After unplugging connection cables or changing the connection pattern, turn on the power of the TV after all relevant devices’
power have been turned on. Change the external input source by pressing TV/VIDEO on the remote control or INPUT on the TV,
select the appropriate external source and verify the audiovisual output.

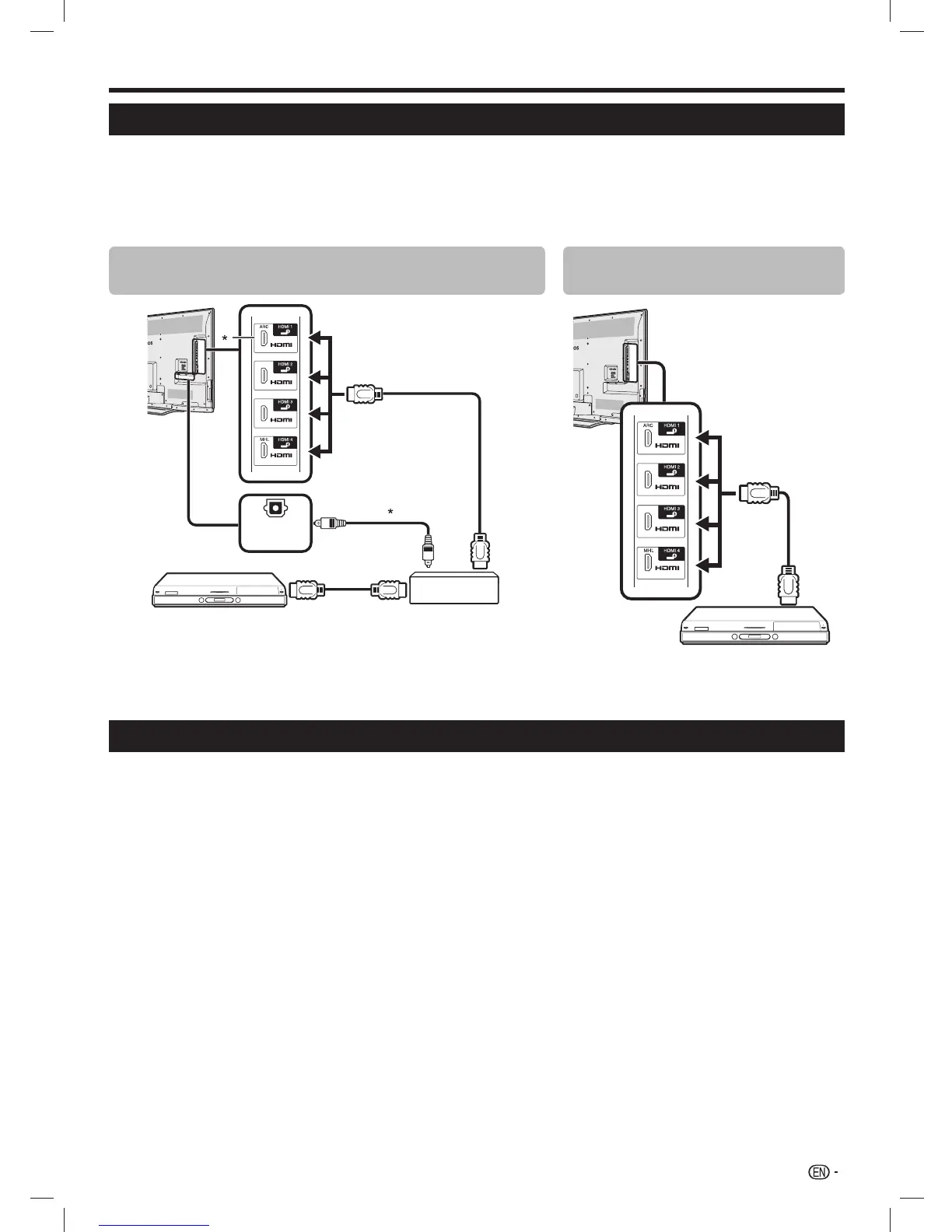

Connecting an AQUOS BD player via the AQUOS
LINK-compatible audio system
n
n
o
2
DIGITAL
AUDIO
OUTPUT
(DC 5V 900mA)
1
AQUOS BD player
AQUOS LINK-compatible audio system
n HDMI-certified cable
(commercially available)
o Optical audio cable
(commercially available)
*1
The ARC (Audio Return Channel) function works only when using the HDMI1 terminal.
*2
When you use an audio system compatible with the ARC function of the TV, you do not
need to connect an optical audio cable to the TV.
Connecting an AQUOS BD player
only
n
(DC 5V 900mA)
AQUOS BD player
Regarding “Select recording device”
Select the device for recording from connected devices.
NOTE
• This function enables you to select either the USB storage device for USB recording use or the HDMI device with CEC protocol.
1 Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Select recording device”.
2 Select the device for recording using the REC E on the remote control unit.
• Select “USB-HDD” when using the REC E for USB recording.
• Select “HDMI device” when using the REC E for recording to the HDMI device.
3 Press RETURN to end the operation.
AQUOS LINK
