Sharp LCD colour TV - Part Names and Functions; TV Front and Rear Views

11

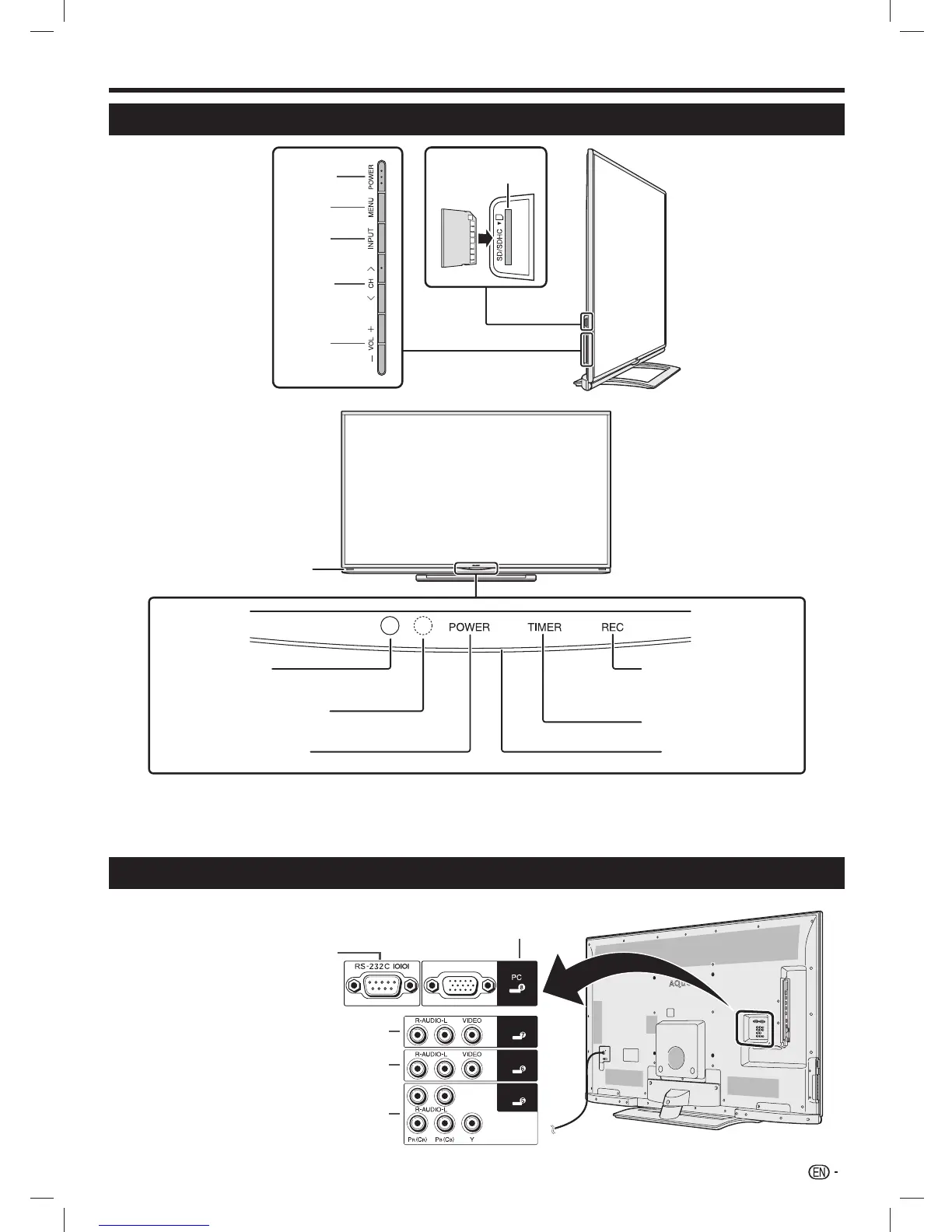

TV (front view)
3D infrared emitter*
1
SD card slot
(See page 61.)
POWER
button
MENU
button
INPUT
button
Channel
buttons
(CHr/s)
Volume
buttons
(VOLk/l)
OPC sensor*
2
REC indicator
TIMER indicator
LED illumination
Remote control sensor
POWER indicator
*1
This panel emits infrared signal towards the 3D glasses you wear when viewing 3D images. Do not place anything between the 3D infrared emitter on
the TV and the infrared receiver on the 3D glasses. Refer to page 74 for details.
*2
OPC: Optical Picture Control (Page 35).
TV (rear view)
RS-232C terminal
INPUT 7 (VIDEO/AUDIO (L/R)) terminal
INPUT 6 (VIDEO/AUDIO (L/R)) terminal
INPUT 5 (COMPONENT/AUDIO (L/R)) terminal
PC terminal
INPUT 7
INPUT 6
INPUT 5
Part names and functions
