MX-3610N MX-PNX5A/B/C/D (PUNCH MODULE) 25 – 1
MX-3610N
Service Manual
[25] MX-PNX5A/B/C/D (PUNCH MODULE)

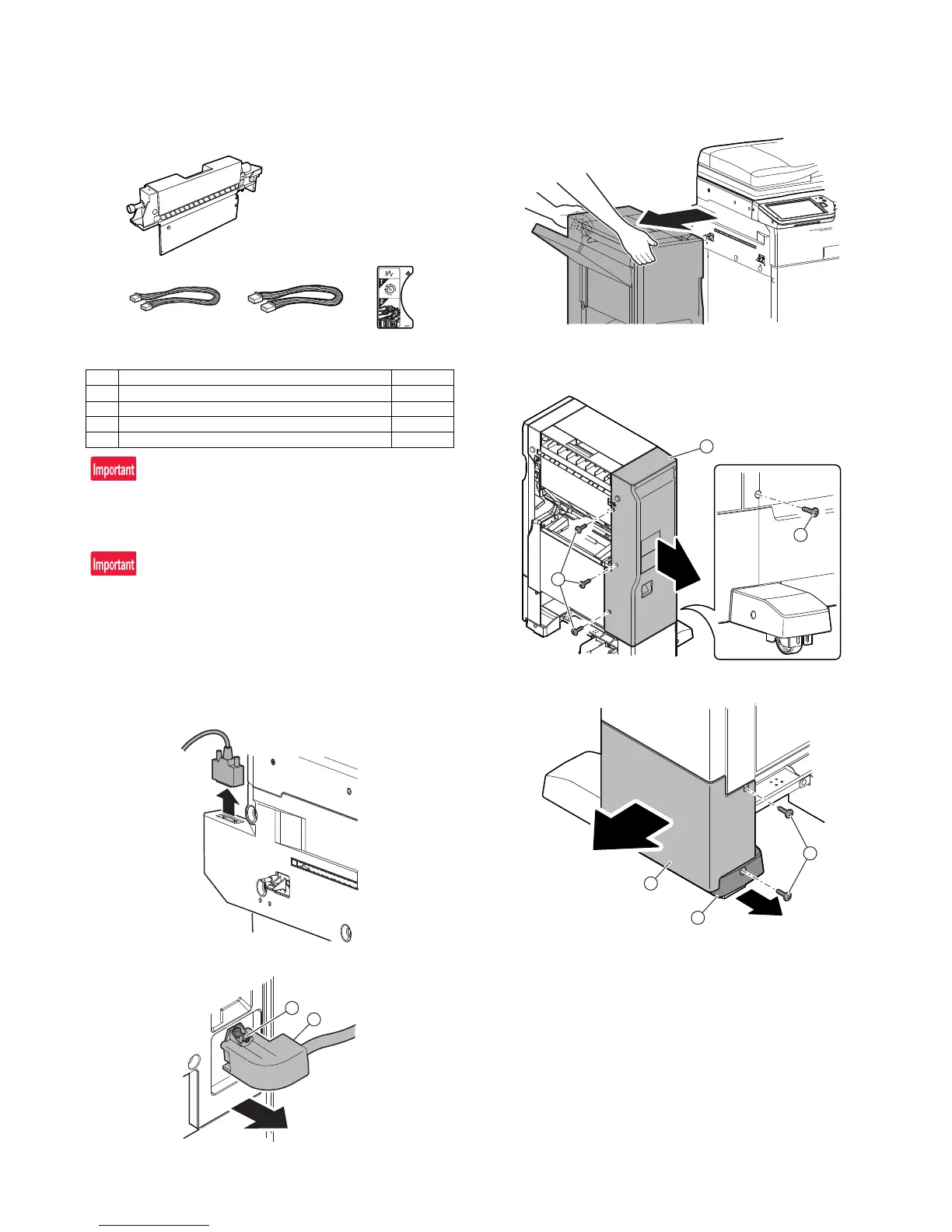

1. Unpacking
A. Packed items check
Use the punch position labels bundled with the MX-FN10.
2. Installation
Before installation, be sure to turn both the operation and main
power switches off and disconnect the power plug from the power
outlet. Make double sure that the data lamp on the operation panel
does not light up or blink when performing installation.
A. Saddle finisher disconnect
1) Disconnect the connector between the main unit and the sad-
dle finisher.
2) Release the lock and separate the saddle finisher from the
main unit.
B. Saddle finisher exterior removal
1) Remove the rear cover.
2) Remove the front lower cover.
No. Name Quantity
1 Punch unit 1
2 Harness A (Purple) 1
3 Harness B (Gray) 1
4 Punch jam processing label 1
000
-
0000
1
32
4
2
1
1
1
2
1
2
3
