MX-3610N Dehumidifying heater 3 – 1
MX-3610N
Service Manual
[3] Dehumidifying heater

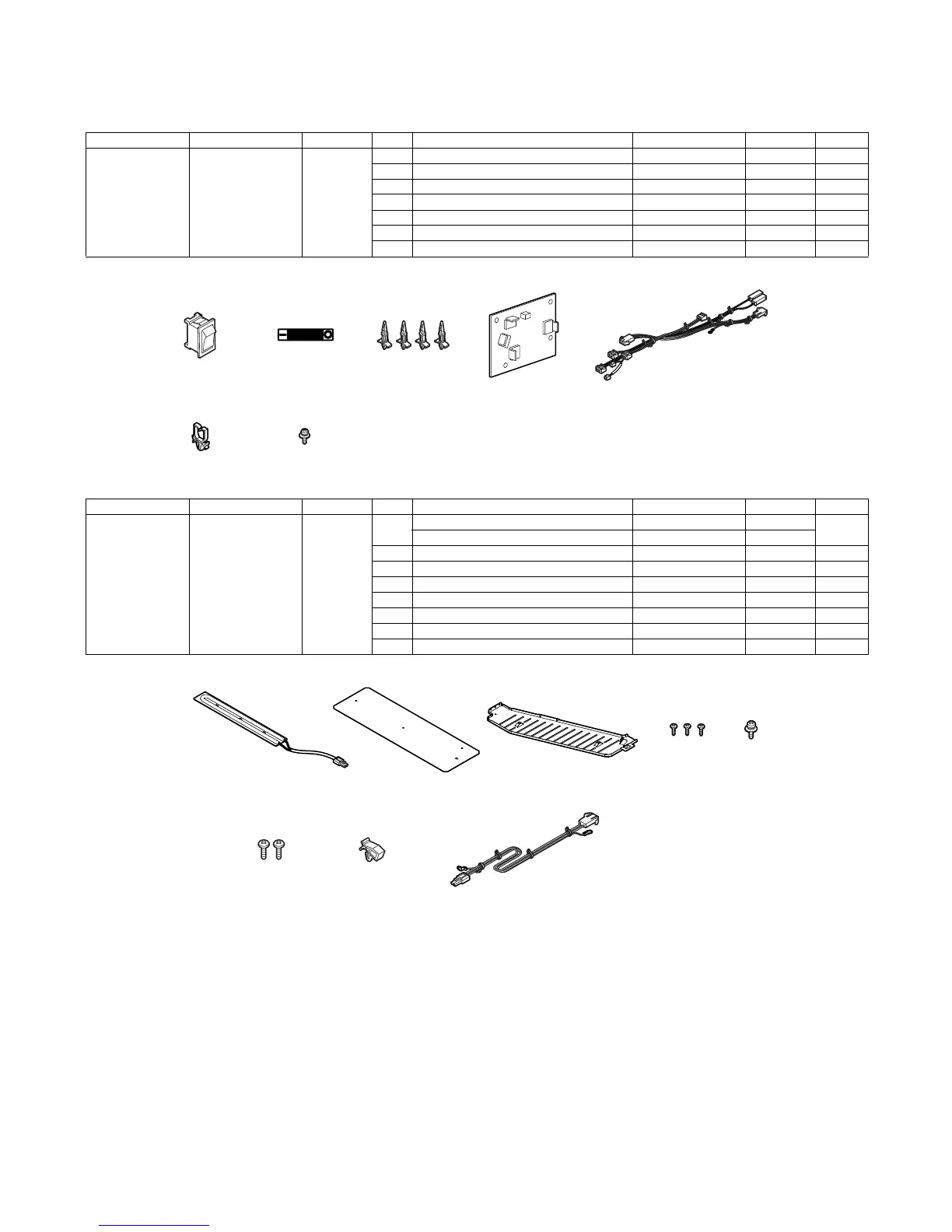

1. Parts list
Kit name Kit code Price rank No. Part name Part code Price rank Q'ty
Heater electric
component kit
DKIT-0425FCZZ 1 Dehumidifier heater control switch QSW-C9294QCZZ AF 1
2 Dehumidifier heater control switch label TLABZ5256FCZZ AH 1
3 Supporter LSUPP0140FCPZ AC 4
4 WH PWB CPWBF1935FCE1 1
5 WH harness DHAI-4701FCPZ BF 1
6 Clamp LHLDW2037FCPZ AC 1
7 Screw XBPS730P08KS0 AB 1
DH POWER
1324
7
5
6
Kit name Kit code Price rank No. Part name Part code Price rank Q'ty
Heater kit DKIT-0426FCZZ
(120V series)
DKIT-0426FC11
(230V series)
1 Heater (120V series) RHETP0166FCPZ BA 1
Heater (230V series) RHETP0167FCPZ BA
2 Heater mounting plate LPLTM6089FCZZ AK 1
3 Heater mounting plate LPLTM8118FCZZ AN 1
4 Screw (M3 x 6 S-tight) XHBS730P06000 AC 3
5 Screw XEBS740P10000 AA 1
6 Screw XBPS730P08KS0 AB 2
7 Clamp LHLDW1013FCZZ AB 1
8 CSS-WH harness DHAI-4711FCPZ AN 1
1
8
2345
67
