Sharp MX-2010U Installation Manual

MX-3610N MX-KB11 (KEYBOARD) 5 – 1
MX-3610N
Service Manual

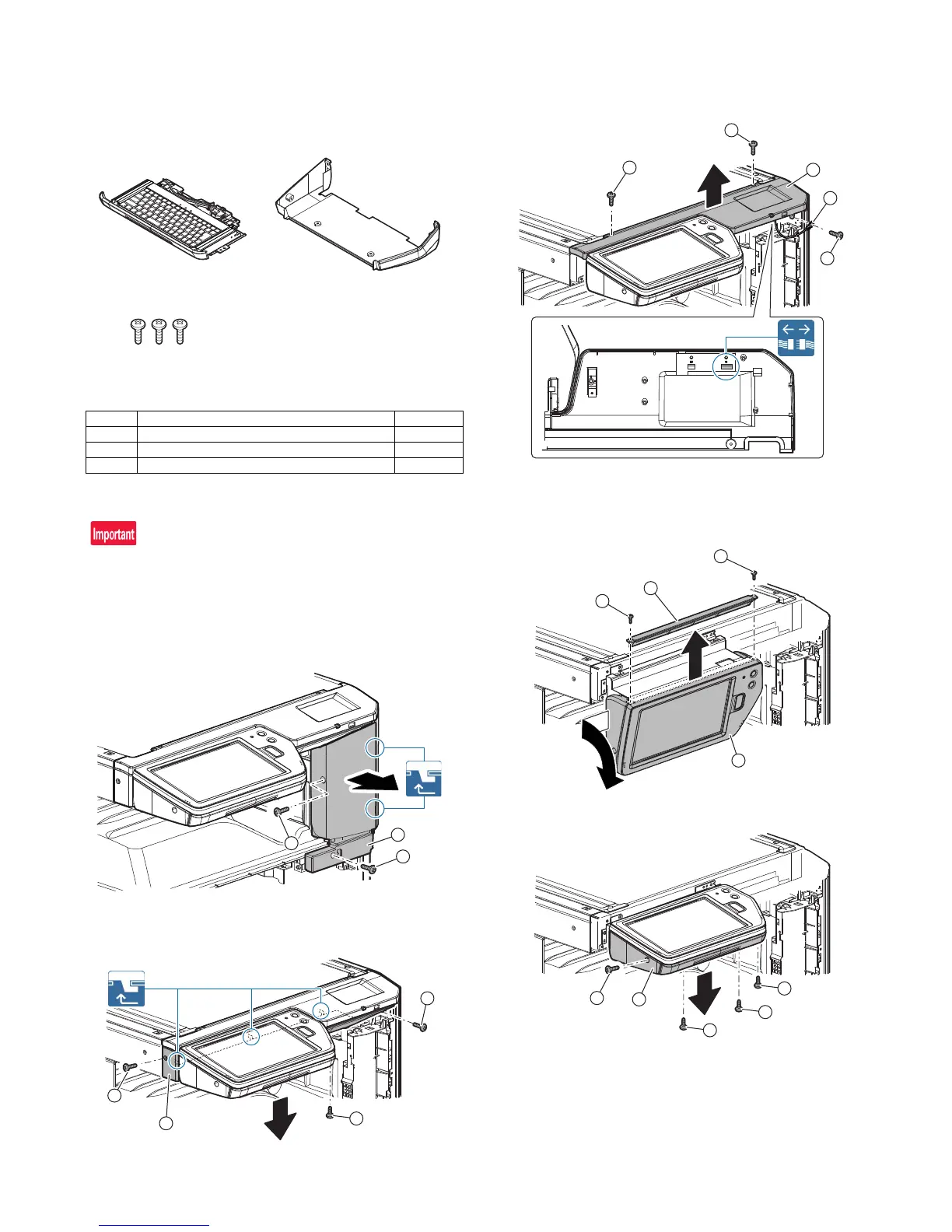

[5] MX-KB11 (KEYBOARD)
1. Unpacking
A. Check the packed items
2. Installation
Before installation, be sure to turn both the operation and main
power switches off and disconnect the power plug from the power
outlet. Make double sure that the data lamp on the operation panel
does not light up or blink when performing installation.
A. External fixture removal
1) Remove the front cabinet upper.
2) Remove the operation panel cover.
3) Remove the operation panel upper cover.
B. Operation panel removal
1) Slide the operation panel unit to the left, and put it down.
Remove the operation panel cover.
2) Remove the operation panel lower cover.
No. Name Quantity
1 Keyboard unit 1
2 Operation panel lower cover (For keyboard) 1
3 Fixing screw (M4 x 8 S-tight) 3
2
3
1
2
1
1
1
1
1
2
3
2
1
1
1
1
2
3
2
1
1
1
1
2

Sharp MX-2010U Specifications

General

Print Technology	Laser
Print Speed	20 ppm
Print Resolution	600 x 600 dpi
Scan Type	Color Scanner
Functions	Print, Copy, Scan, Fax
Copy Speed	20 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 kbps
Duplex Printing	Yes
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Hard Drive	80 GB
Weight	73 kg
