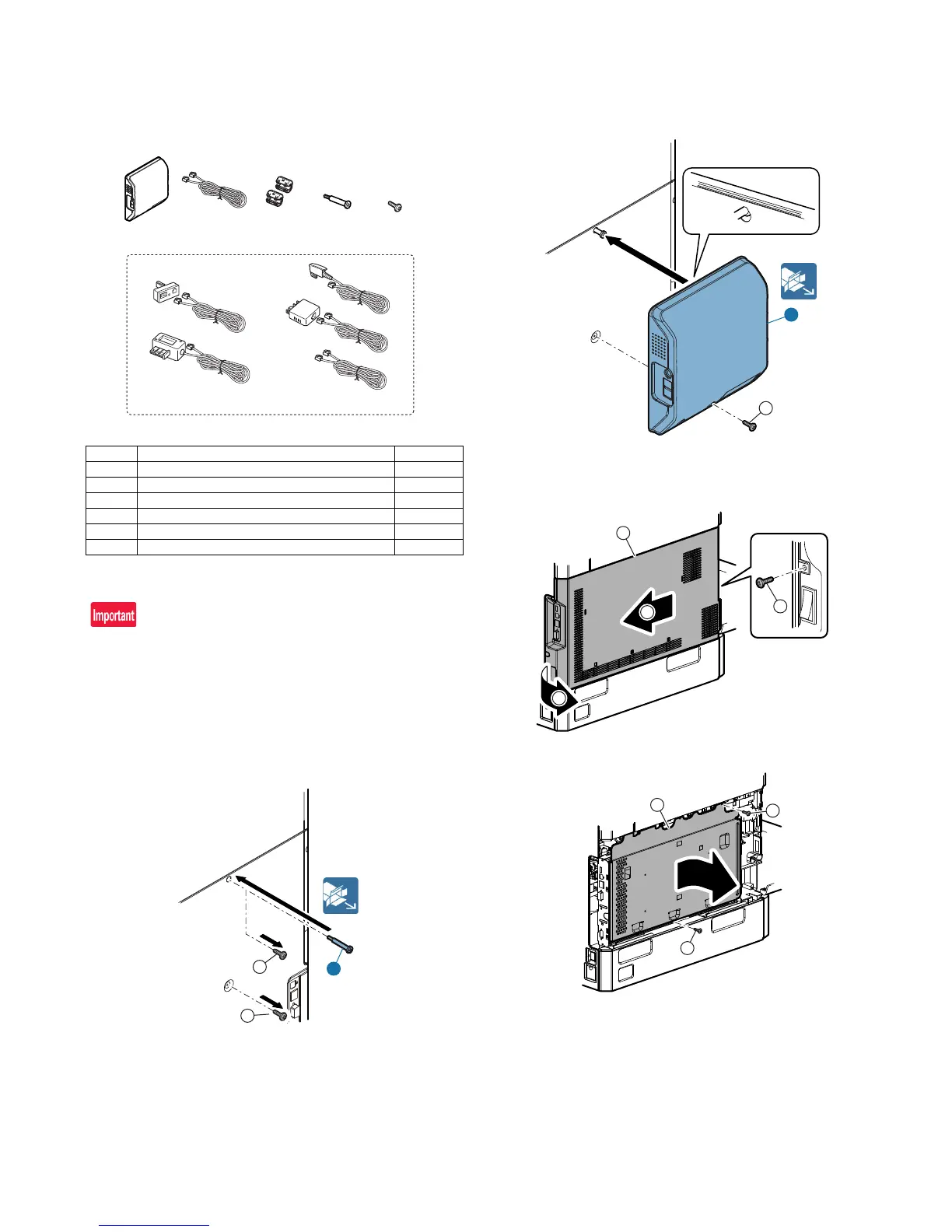

MX-3610N MX-FX11 (FACSIMILE EXPANSION KIT) 19 – 1
MX-3610N
Service Manual
[19] MX-FX11 (FACSIMILE EXPANSION KIT)
1. Unpacking
A. Packed items check
2. Installation
Before installation, be sure to turn both the operation and main
power switches off and disconnect the power plug from the power
outlet. Make double sure that the data lamp on the operation panel
does not light up or blink when performing installation.
A. FAX unit installation
1) Remove the two screws on the rear cabinet of the main unit.
Attach the step screw (included in the package) to one of the
removed screw positions.
2) Hang the Fax unit on the step screw. Fix the Fax unit with the
screws which were removed in the step 1).
B. Left cabinet and shield plate removal
1) Remove the left cabinet.
2) Remove the shield plate.
No. Name Quantity
1Fax unit 1
2 Line cable 1
3 Ferrite core 2
4 Step screw 1
5 M3 screw 1
6 Line cable 1
21435
6
U.K
France
Germany
Australia
For othe destinations
2
1
1
2
1
2
1
1
2
2
1
1
