MX-3610N MX-HD10 (HARD DISK EXPANSION KIT) 6 – 1
MX-3610N
Service Manual
[6] MX-HD10 (HARD DISK EXPANSION KIT)

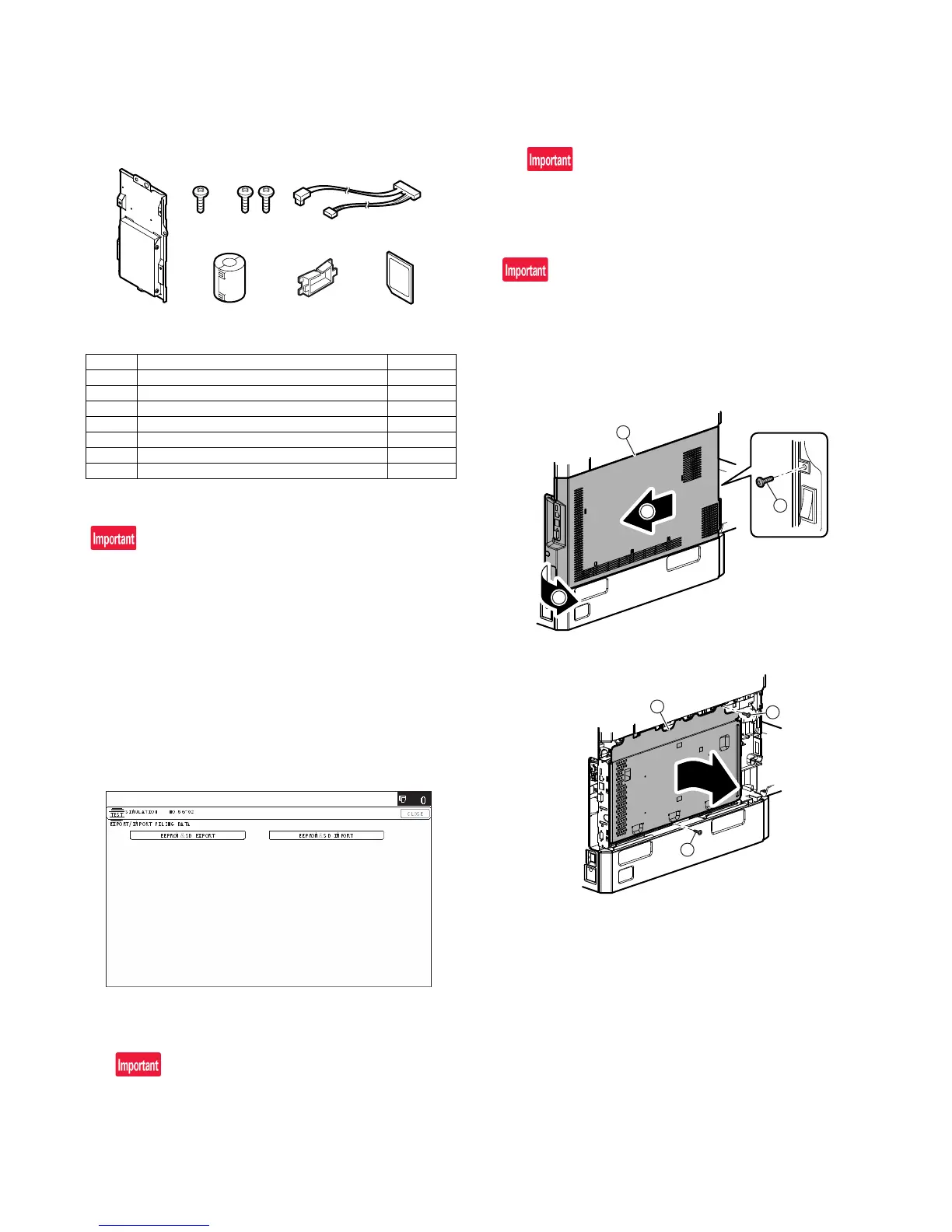

1. Unpacking
A. Packed items check
2. User data backup
When installing a HDD option to a machine which has been used
by a user, the backup procedure of the user data must be per-
formed.
When installing a HDD option to a machine which has not been
used, the procedure is not required.
1) Use SIM56-2 to backup the SD card data into a USB memory.
Insert a USB memory to the machine, and enter the SIM56-2
mode.
Select [EEPROM & SD EXPORT], and press [EXECUTE] key
and then [YES] key.
When the backup operation is completed, "COMPLETE" is dis-
played. Check to confirm the display.
2) When the home screen of the operation panel has been cus-
tomized, use the device cloning function to backup the SD
card data.
The backup data must be restored to the machine after install-
ing an option HDD.
(Refer to the page of "4. User data restore.")
3) If there are some FAX/IFAX image data, use SIM66-62 to
backup the image data into a USB memory. Then give the PDF
file to the user.
The FAX/IFAX receive data can be transferred to a USB mem-
ory, but cannot be restored.
3. Installation
Before installation, be sure to turn both the operation and main
power switches off and disconnect the power plug from the power
outlet. Make double sure that the data lamp on the operation panel
does not light up or blink when performing installation.
A. Left cabinet and shield plate removal
1) Remove the left cabinet.
2) Remove the shield plate.
No. Name Quantity
1 HDD unit 1
2 Screw (M3 x 6 S-tight) 1
3 Screw (M4 x 10 P-tight) 2
4 SATA cable 1
5 Ferrite core 1
6 Edge saddle 1
7 SD card 1
To Next Page
