MX-3610N AR-SU1 (STAMP UNIT) 17 – 1
MX-3610N
Service Manual
[17] AR-SU1 (STAMP UNIT)
1. Unpacking
A. Packed items check
*1: When replacing the stamp cartridge, Refer to “Stamp cartridge
replacement” in the “Operation Guide” (PDF document). The user
must be notified of that. (Do not refer to “Stamp cartridge replace-
ment procedure” (package part).)
*2: This is not used for the MX-2310 series.
2. Installation
Before installation, be sure to turn both the operation and main
power switches off and disconnect the power plug from the power
outlet. Make double sure that the data lamp on the operation panel
does not light up or blink when performing installation.
A. RSPF unit removal
1) Remove the rear upper cabinet.
2) Disconnect the connector. Remove the harness guide.
When disconnecting the connector, be careful of the harness
of the scanner home position sensor.
3) Remove the RSPF unit from the main unit.
4) Put the RSPF unit on a stable table with the OC mat upside.

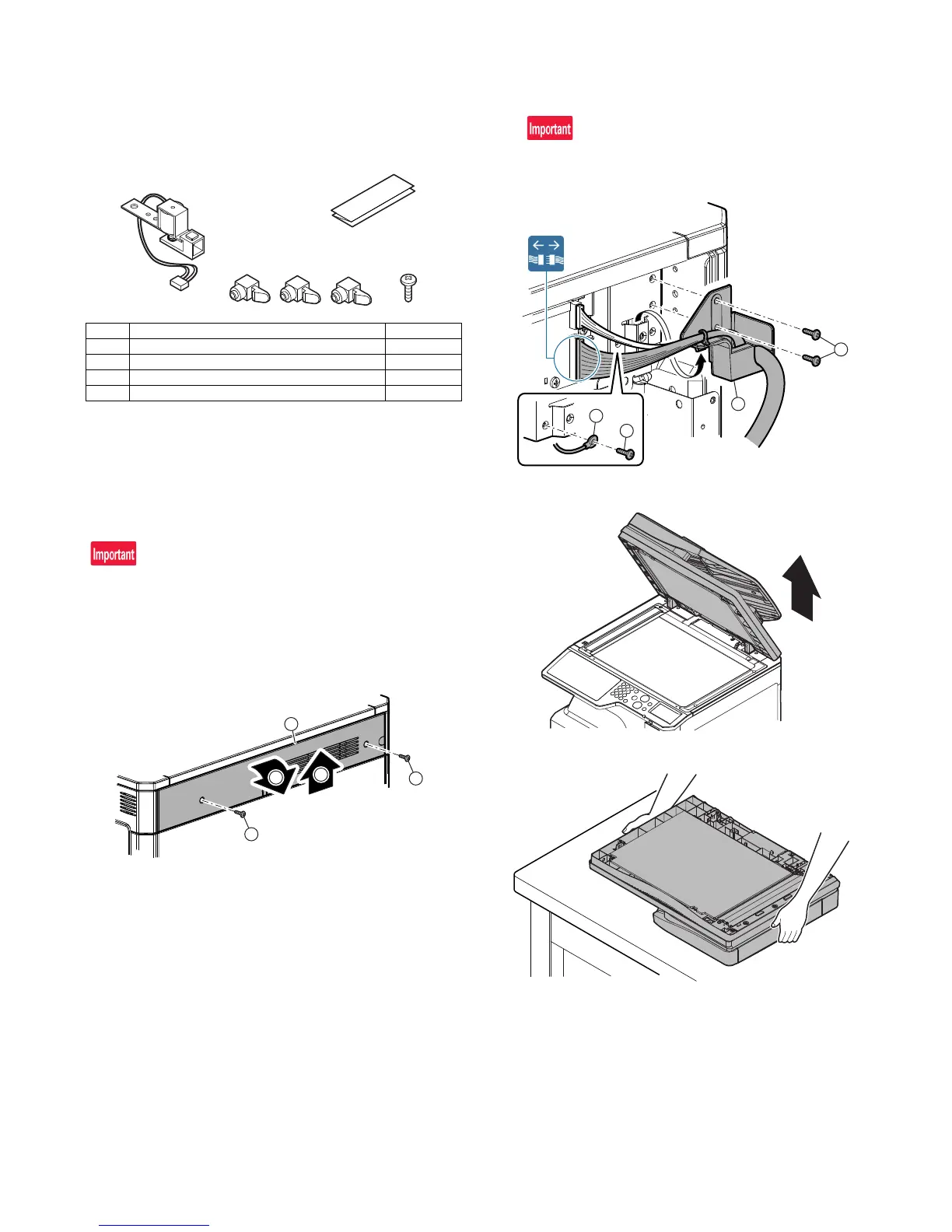

No. Name Quantity
1 Stamp unit 1
2 Stamp cartridge replacement procedure
*1
1
3 Stamp cartridge 3
4 Installing screw
*2
1
1
2
34
2
1
1
1
2
3
4
2
1
