Sharp MX-2010U Installation Manual

MX-3610N MX-TU12 (EXIT TRAY CABINET) 21 – 1
MX-3610N
Service Manual
[21] MX-TU12 (EXIT TRAY CABINET)
1. Unpacking
A. Packed items check
2. Installation
Before installation, be sure to turn both the operation and main
power switches off and disconnect the power plug from the power
outlet. Make double sure that the data lamp on the operation panel
does not light up or blink when performing installation.

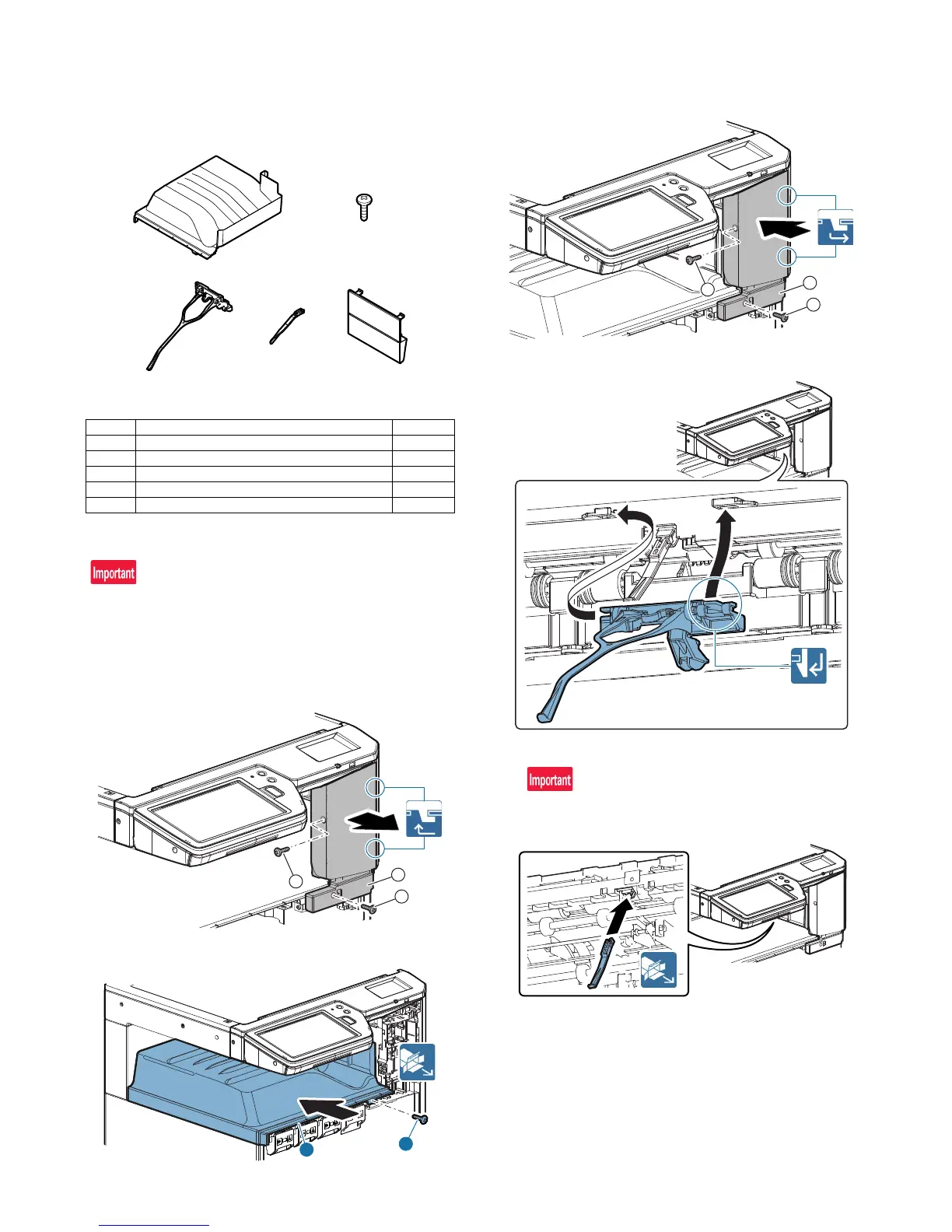

A. Paper exit tray attachment
1) Open the front cabinet, and remove the front cabinet upper.
2) Attach the paper exit tray, and fix it with the screw.
3) Attach the front cabinet upper, and close the front cabinet.
4) Attach the paper holding arm.
5) Attach the full detection actuator.
Be careful of the installing direction of the full detection actua-
tor.
No. Name Quantity
1 Paper exit tray 1
2Screw 1
3 Paper holding arm 1
4 Full detection actuator 1
5 Paper exit cover 1
21
345
2
1
1
2
1
1
2
2
