MX-3610N MX-LC11 (LARGE CAPACITY TRAY) 20 – 9
2) Loosen the stopper fixing screw on the right lower side of the
tray so that the stopper does not function.
3) Pull out the tray again until it stops.

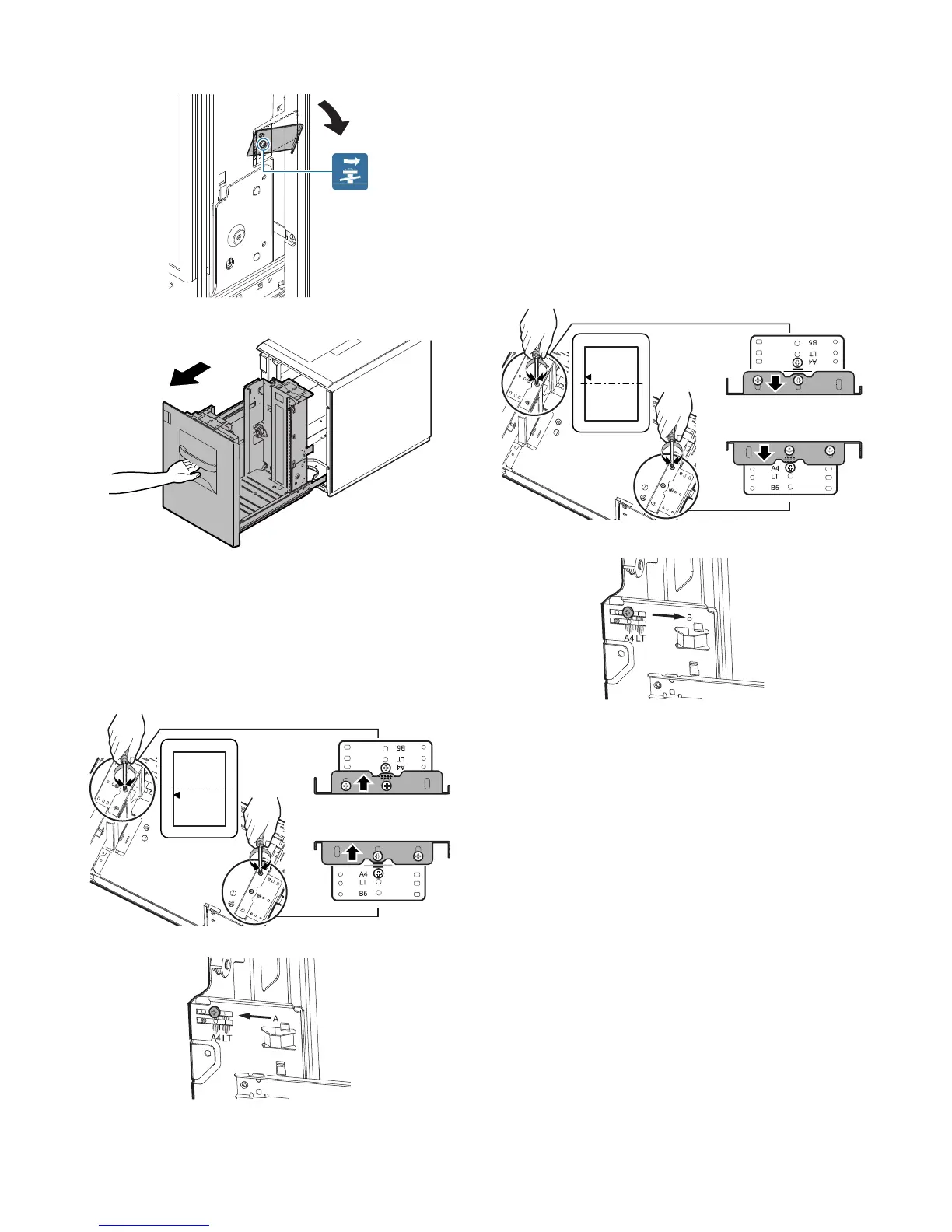

a. When the shift is in the front side
To adjust the print line in the direction A from the paper center as
shown in the figure:
1) Loosen two fixing screws (red screws) of the front/rear size
guide adjustment plate, and move the size guide adjustment
plate in the direction A (R side) by the shift amount, and tighten
the red fixing screws (2 for each). Move the auxiliary guide in
the direction A by the same size.
Slightly push the tray, restore the stopper to the original posi-
tion, and fix the fixing screw.
Check to insure that the stopper pawl is engaged with the stop-
per reception of the large capacity tray.
2) Slowly insert the tray to the original position.
Then make a copy to check to insure that there is no more
shift. Repeat the procedures until there is no shift.
b. When the shift is in the rear side
To adjust the print line in the direction B from the paper center as
shown in the figure:
1) Loosen two fixing screws (red screws) of the front/rear size
guide adjustment plate, and move the size guide adjustment
plate in the direction B (F side) by the shift amount, and tighten
the red fixing screws (2 for each). Restore the stopper to the
original position, and fix it with the fixing screws. Move the aux-
iliary guide in the direction B by the same size.
Check to insure that the stopper pawl is engaged with the stop-
per reception of the large capacity tray.
2) Slowly insert the tray to the original position.
Then make a copy to check to insure that there is no more
shift. Repeat the procedures until there is no shift.
