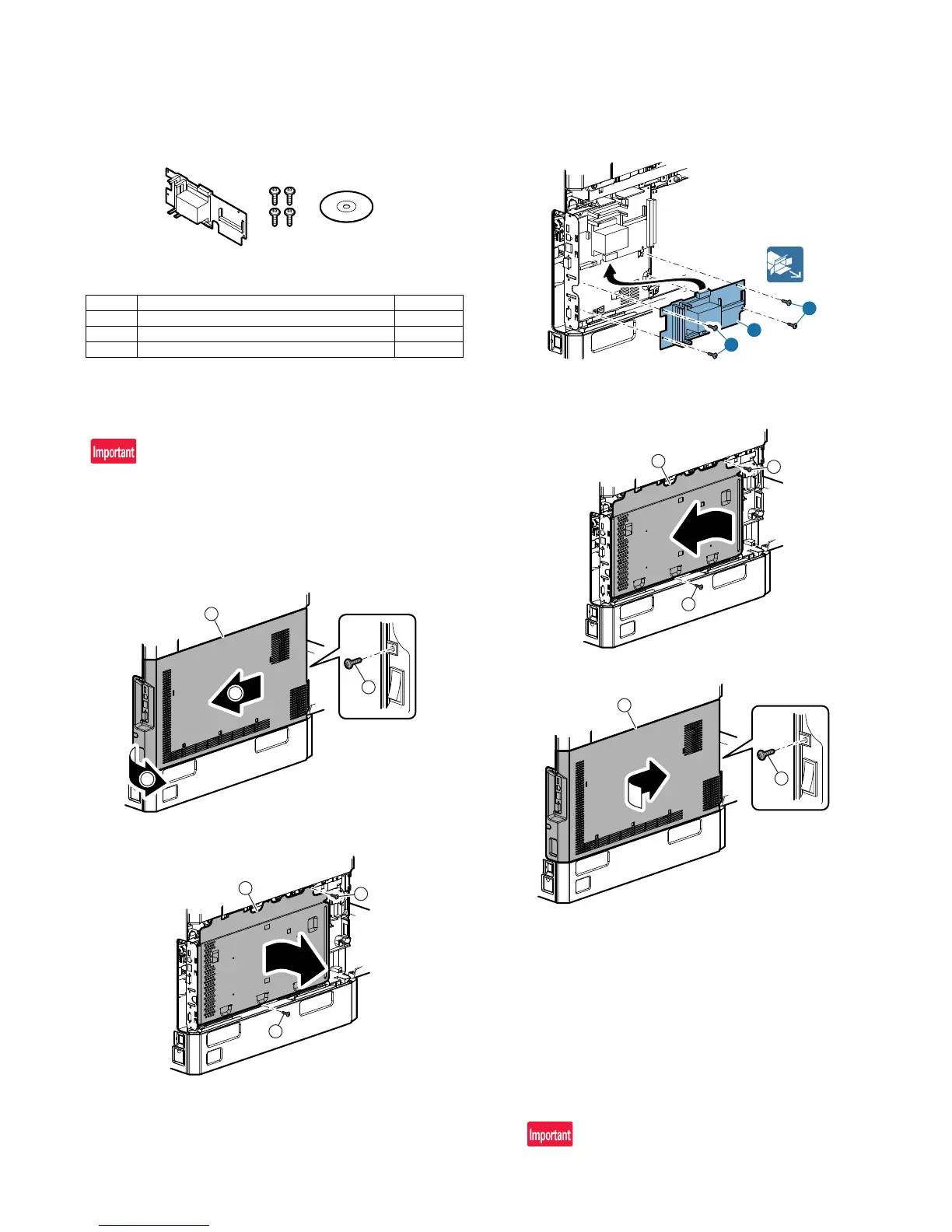

MX-3610N MX-PB14 (PRINTER EXPANSION KIT) 7 – 1
MX-3610N
Service Manual
[7] MX-PB14 (PRINTER EXPANSION KIT)
1. Unpacking
A. Packed items check
2. Installation
In the 20cpm machine, the function of this kit is enabled only when
an option HDD is installed.
Before installation, be sure to turn both the operation and main
power switches off and disconnect the power plug from the power
outlet. Make double sure that the data lamp on the operation panel
does not light up or blink when performing installation.
A. Left cabinet and shield plate removal
1) Remove the left cabinet.
2) Remove the shield plate.
B. Printer control PWB attachment
1) Connect the printer control PWB to the MFP control PWB, and
fit it with the screw included in the package.
C. Shield plate and left cabinet attachment
1) Attach the shield plate.
2) Attach the left cabinet.
D. Turn ON the power of the main unit
1) Connect the power plug of the machine to the power outlet,
and turn ON the main power switch and the operation panel
power switch.
3. Installation
1) Install the driver, and make necessary settings.
2) Execute SIM22-10 to check to confirm that the combined
machine recognizes the MX-PB14.
3) Use SIM46-74 to execute the copy/printer color balance den-
sity adjustment.
Be sure to execute this adjustment.
No. Name Quantity
1 Printer control PWB 1
2 Screw 4
3 CD-ROM 1
312
2
1
1
2
2
1
1
1
1
2
1
2
2
1
2
