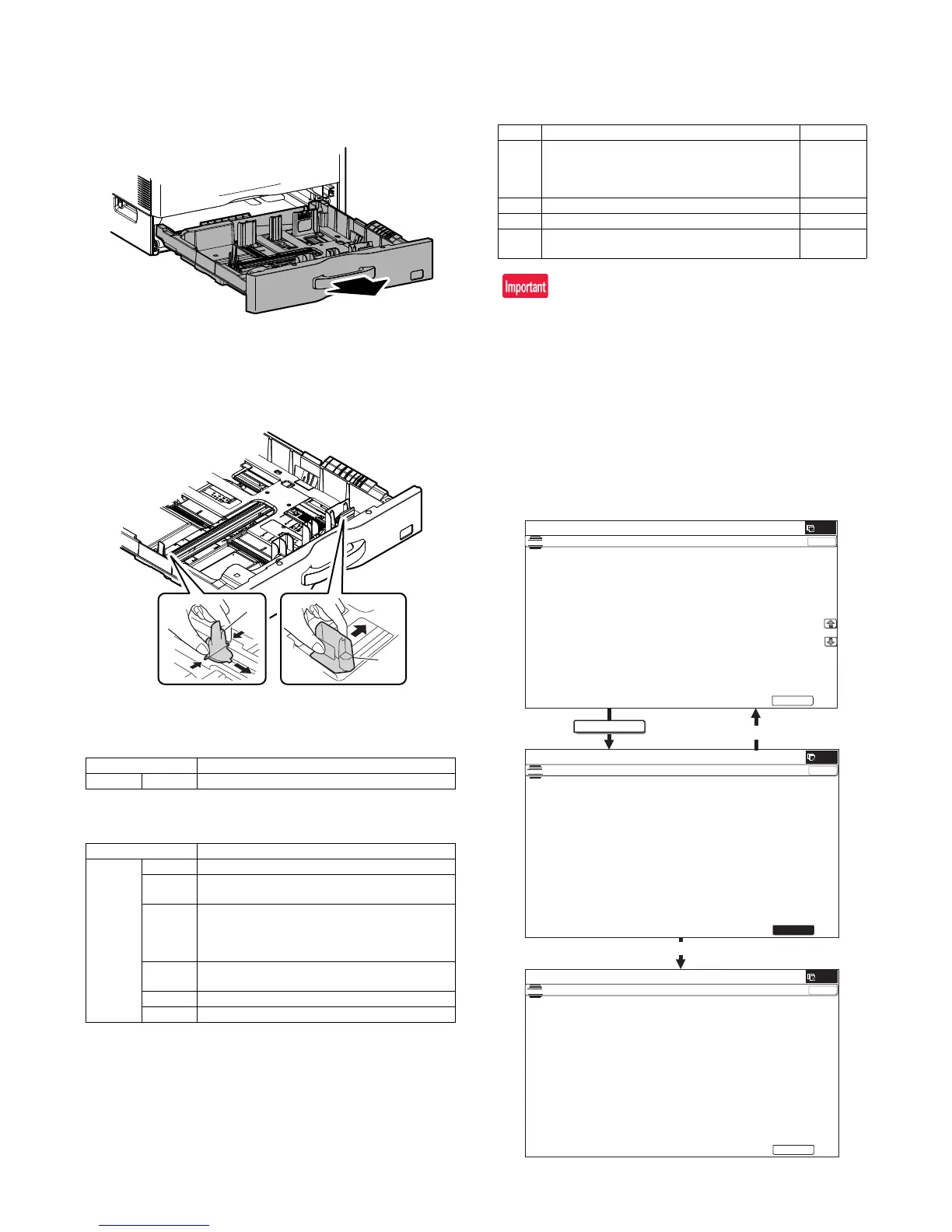

(2) Tray size setup
1) Pull out the paper tray.
Gently pull the tray out until it stops.
If paper remains in the tray, remove it.
2) Adjust the guide plates A and B by squeezing their lock levers
and sliding them to match the vertical and horizontal dimen-
sions of the paper to be loaded.
The guide plates A and B are slidable. Slide each guide plate
while squeezing its lock lever.
E. Specifications setup
Use simulation 26-6 to set the machines destination.
After completion of destination settings, change the set values to
customize the following settings.
3. Image quality check
A. Execution items
Execute the following items.
*1: When a printer option is installed, be sure to execute the above
item.
B. Description
(1) Print engine image distortion adjustment (Manual
adjustment) / OPC drum phase adjustment
(Automatic adjustment) / Color registration
adjustment (Automatic adjustment)
This adjustment performs the print engine image distortion adjust-
ment, the OPC drum phase adjustment, and the color registration
adjustment simultaneously.
1) Enter SIM50-22 mode.
SIM No Content
26 6 Used to set the destination.
SIM No Content
26 3 Used to set the auditor specification mode.
5 Used to set the count mode of the total counter and
the maintenance counter.
18 Used to set YES/NO of the toner save mode (Only
in UK and Japan versions)
* For other destination versions, this setup is
made by the user program.
52 Used to set YES/NO of counting when non-print
paper is passed through each counter.
53 Used to set YES/NO of user calibration permission.
65 Used to set the limit number of sheets for stapling.
No. Item SIM
1 Print engine image distortion adjustment (Manual
adjustment) / OPC drum phase adjustment
(Automatic adjustment) / Color registration
adjustment (Automatic adjustment)
50-22
2 Copy color balance and density check
3 Printer color balance/density check 64-5/67-25
4
*1
Copy/Printer color balance and density adjustment
(Automatic adjustment)
46-74
