Sharp MX-2010U Installation Manual

MX-3610N MX-FN17 (FINISHER) 22 – 1
MX-3610N
Service Manual
[22] MX-FN17 (FINISHER)

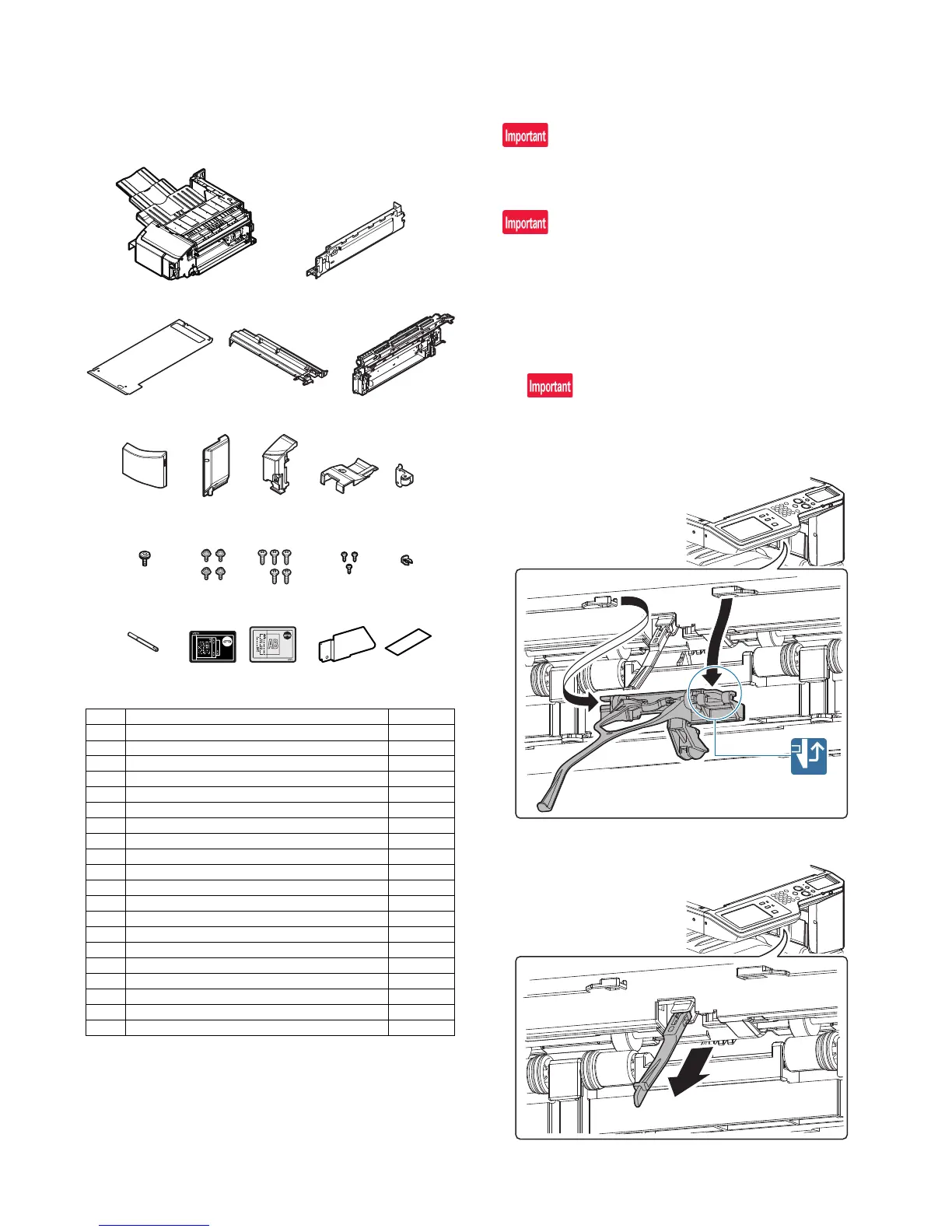

1. Unpacking
A. Packed items check
2. Installation
Check to confirm that the firmware version is later than below.
If the version is older, upgrade the firmware.
Firmware version: 01.02.03.00
Before installation, be sure to turn both the operation and main
power switches off and disconnect the power plug from the power
outlet. Make double sure that the data lamp on the operation panel
does not light up or blink when performing installation.
A. Paper holding arm and paper exit full detection
actuator removal
1) Remove the paper holding arm.
The paper holding arm must be removed together with the
paper holding arm holder. Since the paper holding arm is easy
to remove alone, be careful not to leave the paper holding arm
holder unremoved.
2) Remove the paper exit full detection actuator.
No. Name Quantity
1 Finisher 1
2 Attachment 1
3 Blinding bottom plate 1
4 Front rail guide 1
5 Path guide 1
6 Open/Close cover 1
7 Left rear cover 1
8 Punch F cover 1
9 Fulcrum upper cover 1
10 Take-up roller 1
11 Screw (M4 x 10 S tight) 1
12 Screw (M3 x 6 S tight, with flange) 4
13 Screw (M4 x 7 S tight) 5
14 Screw (M3 x 6 S tight) 3
15 Clip 1
16 Fulcrum shaft 1
17 Staple position label (For the scanner) 1
18 Staple position label (For the RSPF) 1
19 Safety cover 1
20 Protection sheet 1
11
12
13 14
15
16
17 18 19 20
2
1
43
5
8910
67

Sharp MX-2010U Specifications

General

Print Technology	Laser
Print Speed	20 ppm
Print Resolution	600 x 600 dpi
Scan Type	Color Scanner
Functions	Print, Copy, Scan, Fax
Copy Speed	20 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 kbps
Duplex Printing	Yes
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Hard Drive	80 GB
Weight	73 kg
