Sharp MX-2010U

MX-3610N MX-FN17 (FINISHER) 22 – 2

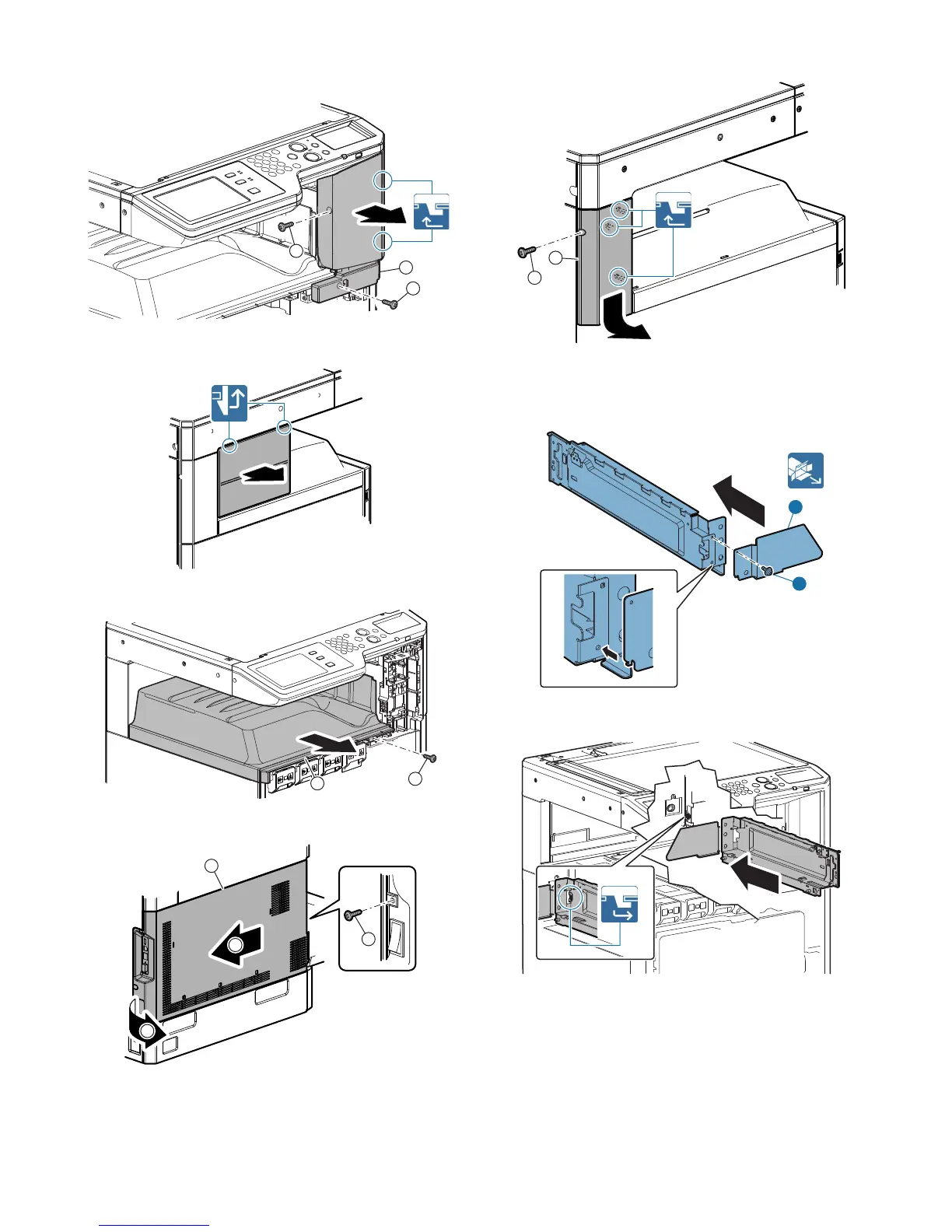

B. External fixture removal
1) Open the front cabinet, and remove the front cabinet upper.
2) Remove the paper exit cover.
3) Remove the paper exit tray.
4) Remove the left cabinet.
5) Remove the left cabinet upper.
C. Packed items attachment
1) Attach the safety cover to the attachment, and fix it with the
screw (M3 x 6 S tight, with flange).
2) Attach the attachment.
1
1
2
1
2
2
1
1
2
1
2
1
2
