MX-3610N MX-FN17 (FINISHER) 22 – 3

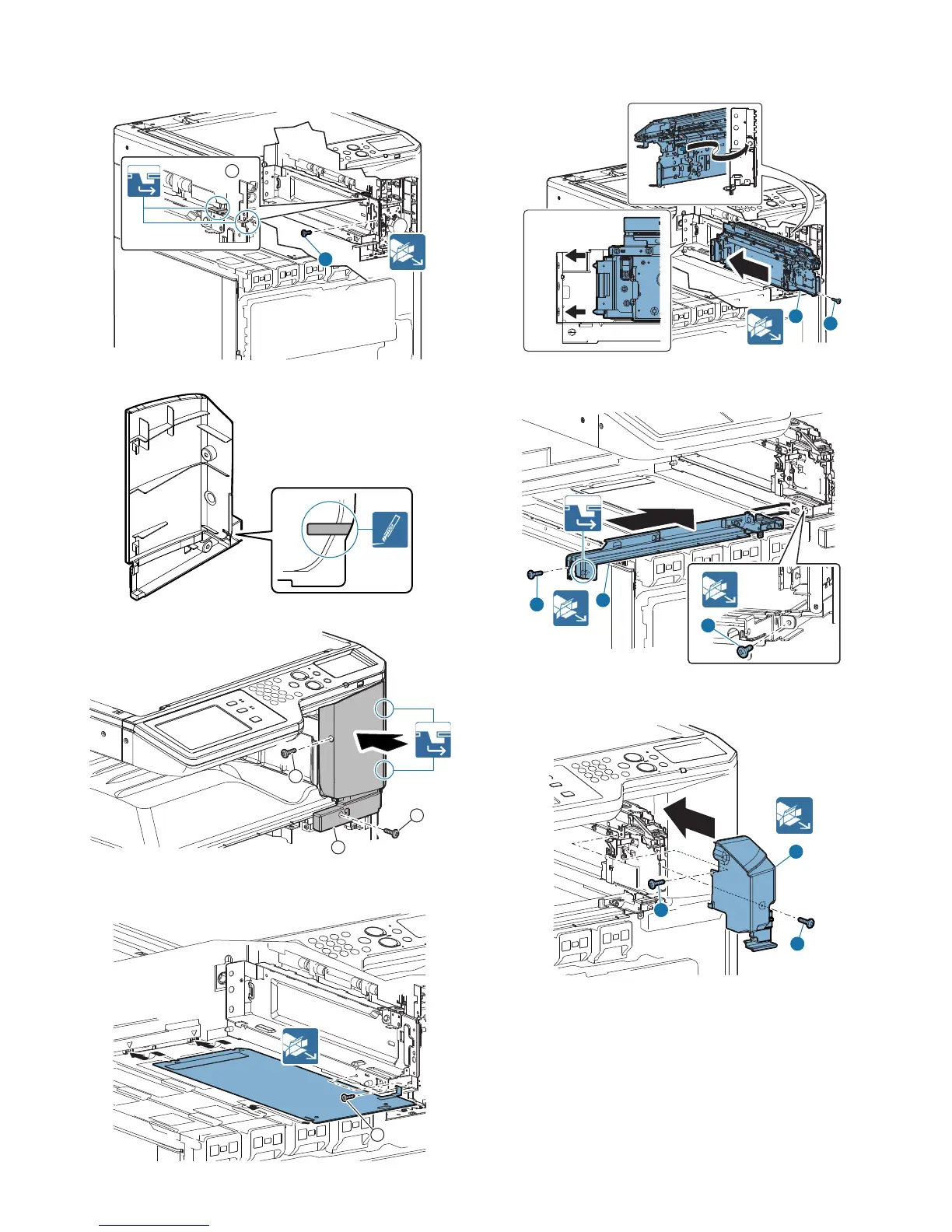

3) Hold the rib of the paper exit shifter with the fixing guide, fit it to
the notch in the attachment, and fix it with the screw (M4 x 10
S tight).
4) Cut the front cabinet upper.
5) Attach the front cabinet upper.
6) Attach the blind bottom plate and fix it with the screw (M3 x 6 S
tight, with flange).
7) Attach the path guide and fix it with the screw (M3 x 6 S tight,
with flange).
8) Attach the front rail guide and fix it with the screw (M4 x 7 S
tight, M3 x 6 S tight, with flange).
9) Attach the punch F cover and fix it with the screw (M3 x 6 S
tight).
