Sharp MX-2010U Installation Manual

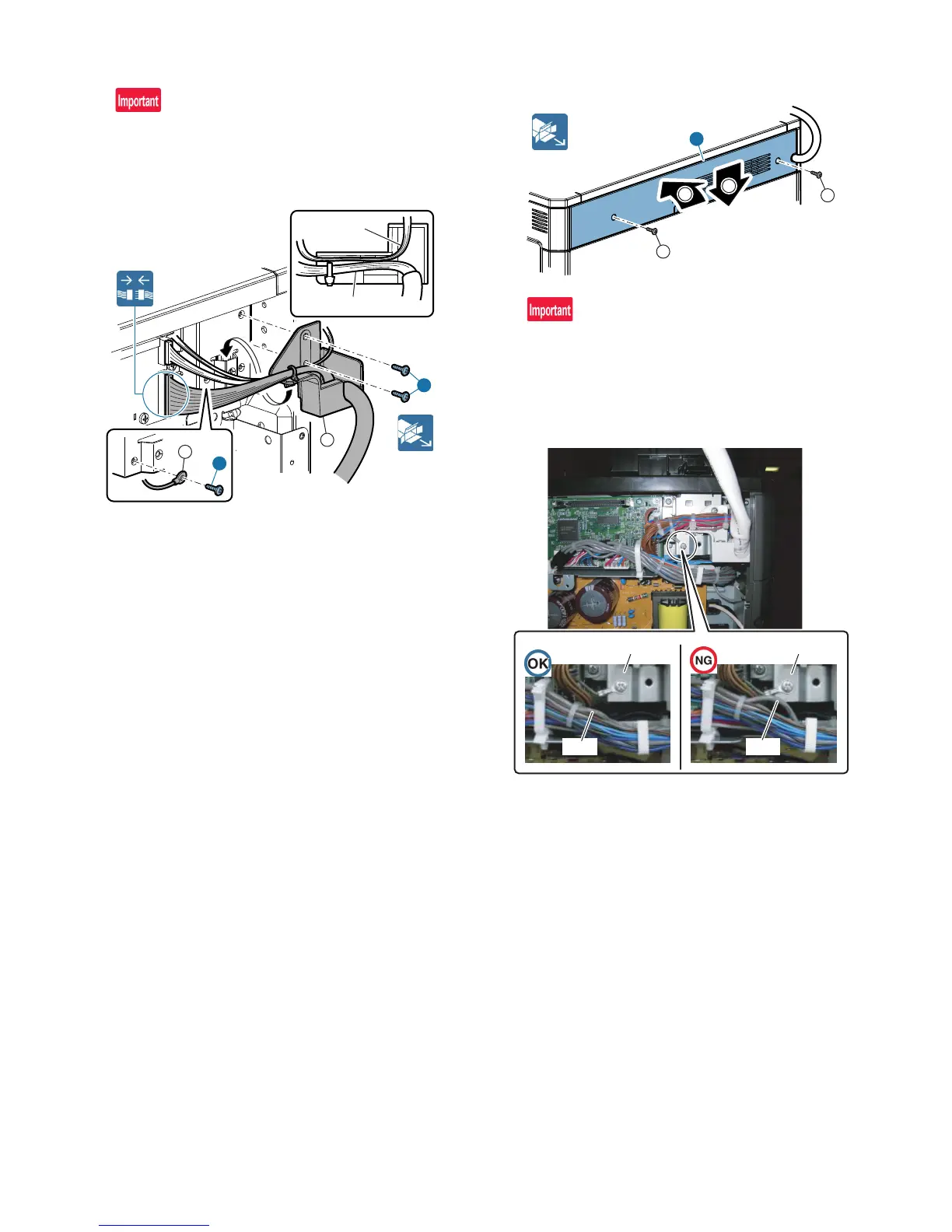

MX-3610N MX-RP12 (REVERSING SINGLE PASS FEEDER) 16 – 2
2) Attach the harness guide, and fix the screw (M3 x 6 S-tight)
included in the package. Connect the connector.
Place the harness of the scanner home position sensor at the
back of the guide and the RSPF harness. Check to confirm
that the connector of the scanner home position sensor is
securely connected.
D. Rear upper cabinet attachment
1) Attach the rear upper cabinet included in the package.
Check to confirm that the wire is not in contact with the har-
ness fixing plate.
If the wire should be in contact with the harness fixing plate
and the upper rear cabinet should be installed under this con-
dition, the wire may be caught between the both parts to be
damaged, causing a short circuit.
1
3
4
2
MHPS harness
RSPF harness
2
2
2
1
1
wire
harness fixing plate
wire
harness fixing plate

Sharp MX-2010U Specifications

General

Print Technology	Laser
Print Speed	20 ppm
Print Resolution	600 x 600 dpi
Scan Type	Color Scanner
Functions	Print, Copy, Scan, Fax
Copy Speed	20 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 kbps
Duplex Printing	Yes
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Hard Drive	80 GB
Weight	73 kg
