Sharp MX-2010U Installation Manual

MX-3610N AR-SU1 (STAMP UNIT) 17 – 2

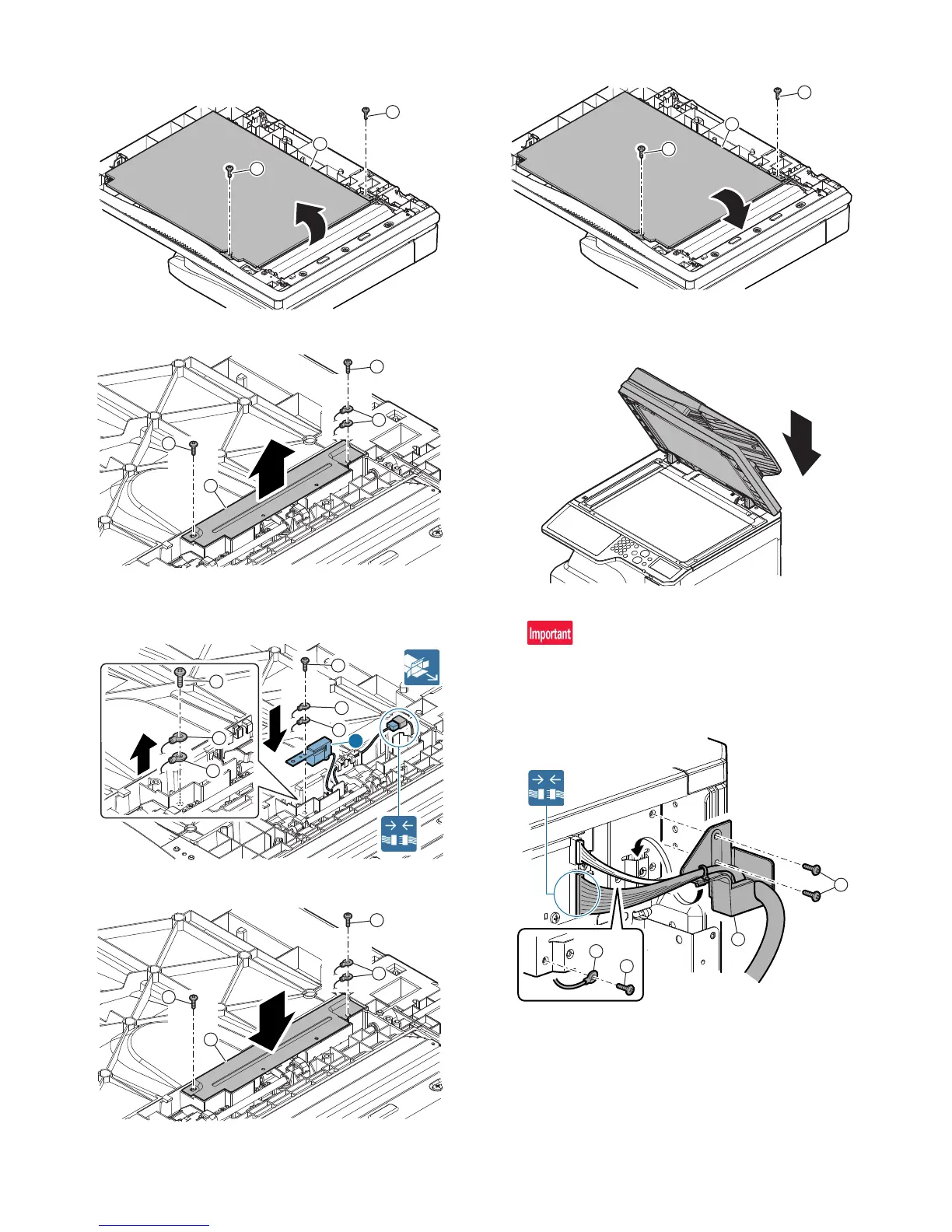

B. Stamp unit attachment
1) Open the OC mat.
2) Remove the sensor cover.
3) Remove the screw from the stamp unit mounting section. Use
the removed screw to attach the stamp unit together with the
earth wire, and connect the connector.
4) Install the sensor cover.
5) Close the OC mat.
C. RSPF unit attachment
1) Attach the RSPF unit to the main unit.
2) Attach the harness guide, and connect the connector.
Place the harness of the scanner home position sensor at the
back of the guide and the RSPF harness. Check to confirm
that the connector of the scanner home position sensor is
securely connected.
