Sharp MX-2010U

MX-3610N MX-KB11 (KEYBOARD) 5 – 2

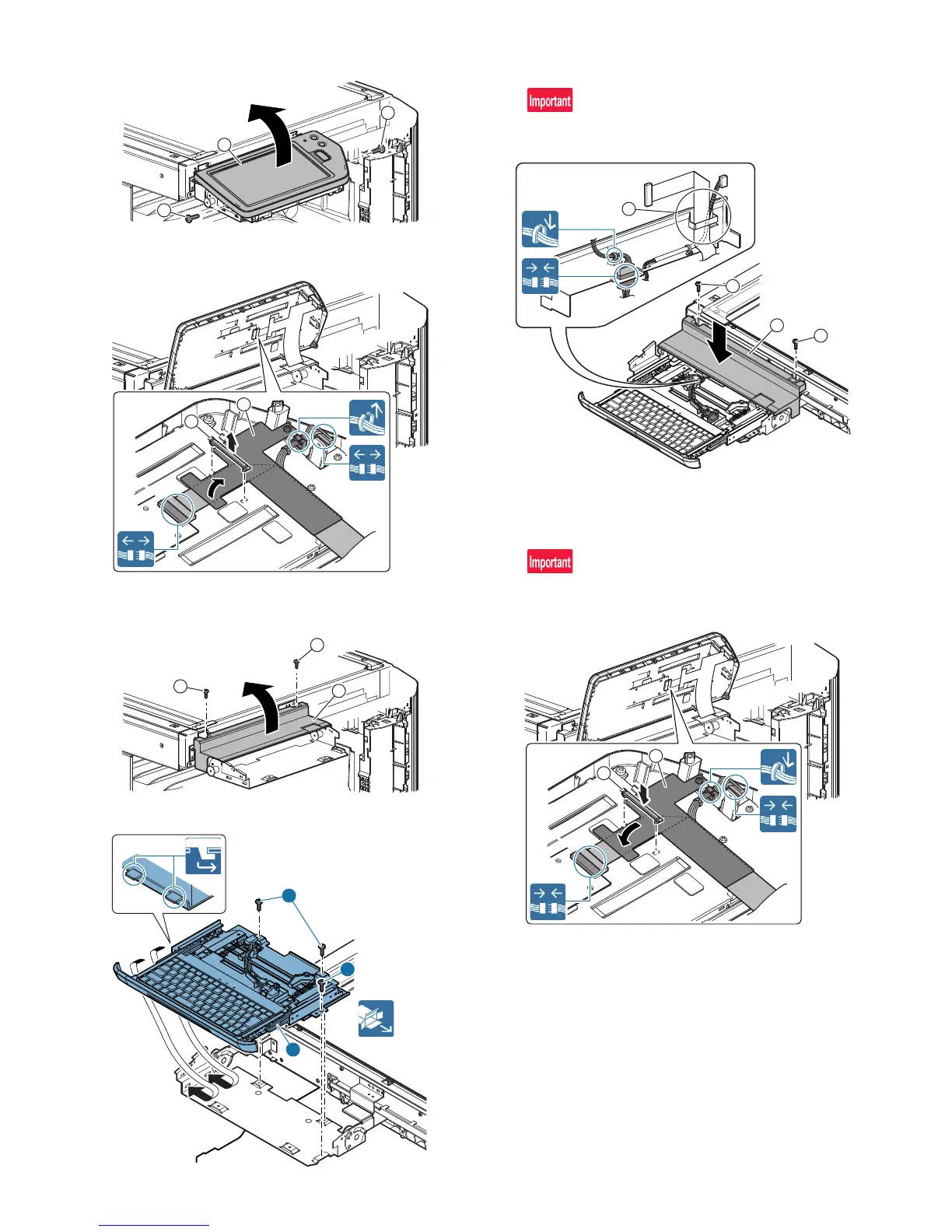

3) Turn over the operation panel unit.
4) Remove the clamp. Peel off the mylar and disconnect the con-
nector.
C. Keyboard unit attachment
1) Turn over the operation section cover.
2) Attach the keyboard unit and fix it with the fixing screw.
3) Connect the keyboard interface harness and attach the opera-
tion section cover.
Be sure to place the key interface harness between the opera-
tion section cover and the FFC. (Section A)
D. Operation panel attachment
1) Connect the connector to the operation panel unit , and fix the
harness with the clamp.
When assembling, put the mylar on the flat cable and fix them
with the clamp.
1
1
2
2
1
2
1
1
2
1
2
2
2
1
A
1
2
