MX-3610N Dehumidifying heater 3 – 4

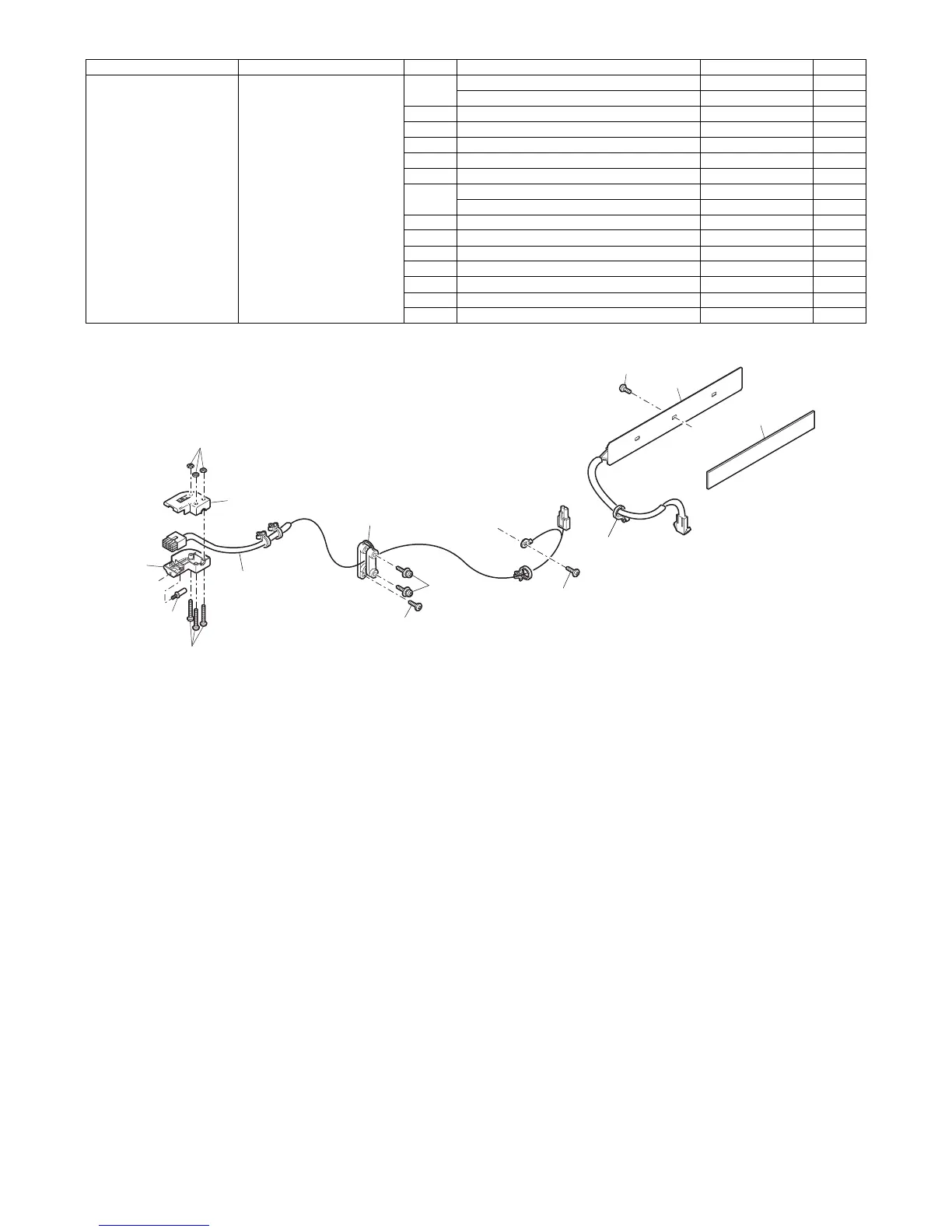

Kit name Kit code No. Part name Part code Q'ty
LCC heater kit DKIT-0424FCZZ
(120V series)
DKIT-0424FC11
(200V series)
1 Heater harness (120V series) DHAI-4742FCZZ 1
Heater harness (200V series) DHAI-3974FCZZ 1
2 Snap band LBNDJ0043FCP1 1
3 AC cord fixer LFIX-0016FCZZ 1
4 Protect sheet PFLT-0067FCP1 1
5 Connector cover A PCOVP2149FCZZ 1
6 Connector cover B PCOVP2150FCZZ 1
7 Heater (120V series) RHETP0145FCZZ 1
Heater (200V series) HETP0121FCZZ 1
8 Screw (M4 x 8K) XBPS740P08K00 1
9 Screw (M3 x 4) XHBS730P04000 1
10 Screw for EL connector LX-BZ1119FCZZ 1
11 Screw (M4 x 28K) XBPS740P28KS0 2
12 Screw (M3 x 20) XBBS730P20000 3
13 Screw (M4 x 10) XHBS740P10000 1
14 Nut (M3 = 2.4) 0EUNZ3024SCPE 3
13
8
11
3
1
14
5
6
10
12
9
7
2
4
