MX-3610N Dehumidifying heater 3 – 12

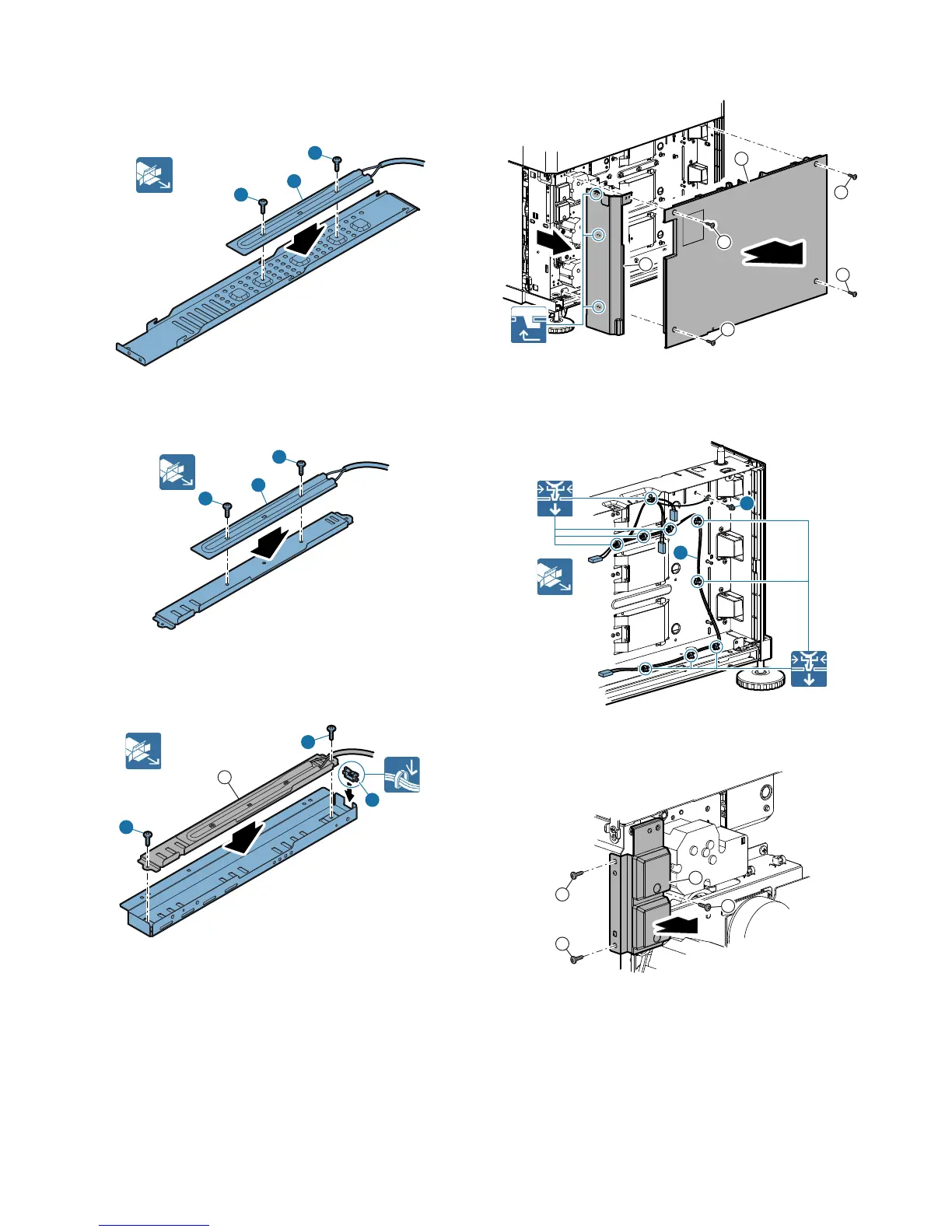

D. Desk heater kit installation
(1) Tray 2 heater unit assembly
1) Attach the desk heater to the heater mounting plate, and fix it
with a screw (M3 x 4).
(2) Tray 3/4 heater unit assembly
1) Attach the desk heater to the heater mounting plate, and fix it
with a screw (M3 x 4).
2) Attach the edge wire saddle and the desk heater mounting
plate to the heater radiating plate, and fix them with a screw
(M3 x 4). Pass the desk heater harness through the edge wire
saddle.
(3) Rear cabinet and right rear cabinet removal
1) Remove the rear cabinet and the right rear cabinet.
(4) Heater harness attachment
1) Attach the snap band of the heater harness to the frame.
Fix the earth wire to the frame with a screw (M4 x 8).
(5) Heater harness 2 attachment
1) Remove the mounting plate.
2
2
1
2
2
1
3
3
2
1
1
1
1
1
2
3
1
2
1
1
1
2
