MX-3610N MX-DE12/DE13/DE14 (STAND/1x500/2x500/3x500 SHEET PAPER DRAWER) 4 – 2
B. Main unit and desk unit connection

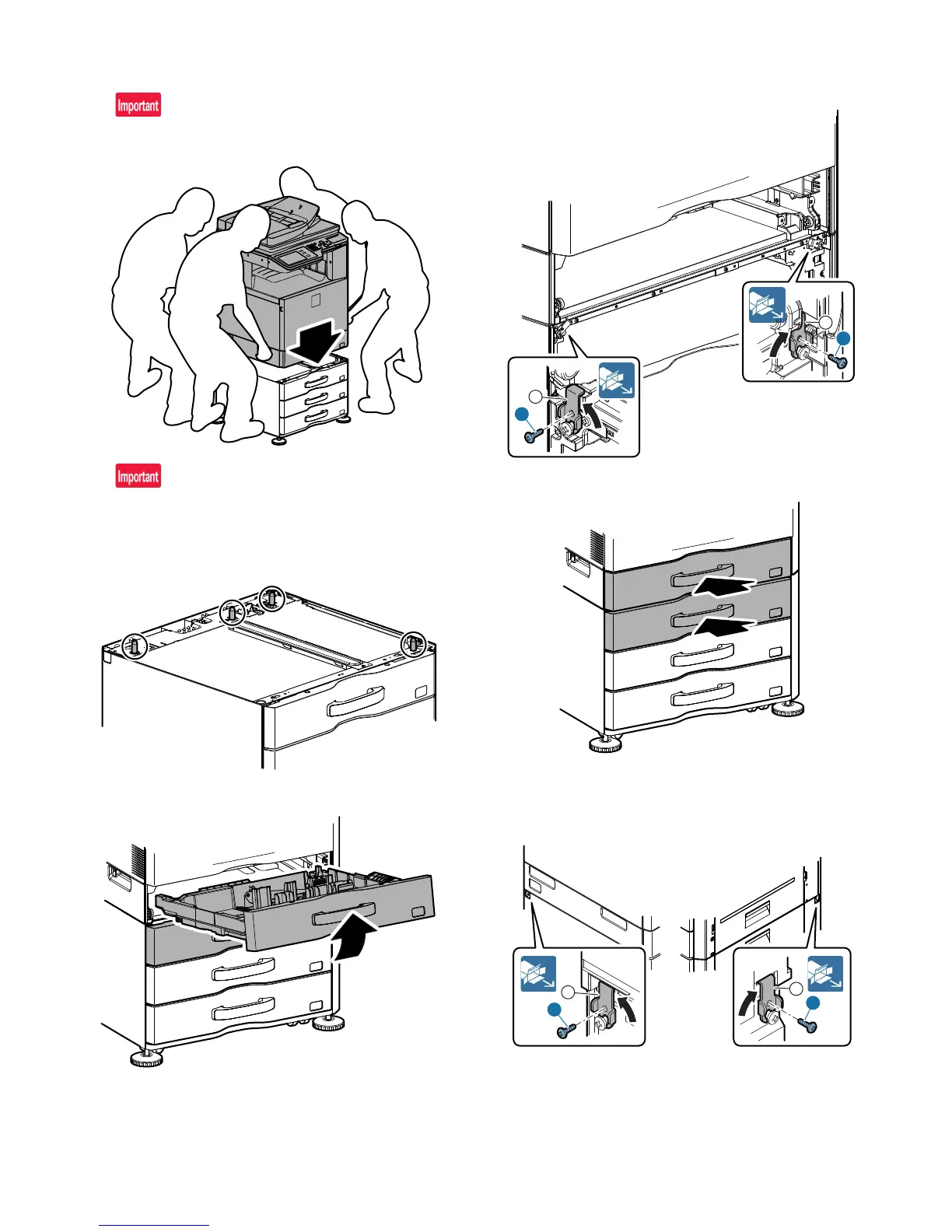

1) Put the main unit on the desk unit.
Use man power of four persons or more to lift the main unit.
Place the main unit on the desk unit slowly by fitting the exter-
nal lines. Check to insure that the positioning pin on the top of
the desk unit is securely engaged in the positioning groove of
the main unit.
2) Remove the tray 1 and the tray 2.
3) Raise the linkage plates on the right and left sides of the front
side of the desk unit, and fix them with the fixing screws
included in the package.
4) Attach the tray 1 and the tray 2.
5) Raise the linkage plates on the right and left sides of the rear
side of the desk unit, and fix them with the fixing screws
included in the package.
