MX-M264U MX-M264U/M314U/M354U/M264N/M314N/M354N (MAIN UNIT) 2 – 1
MX-M264U
Service Manual
[2] MX-M264U/M314U/M354U/M264N/M314N/M354N (MAIN UNIT)

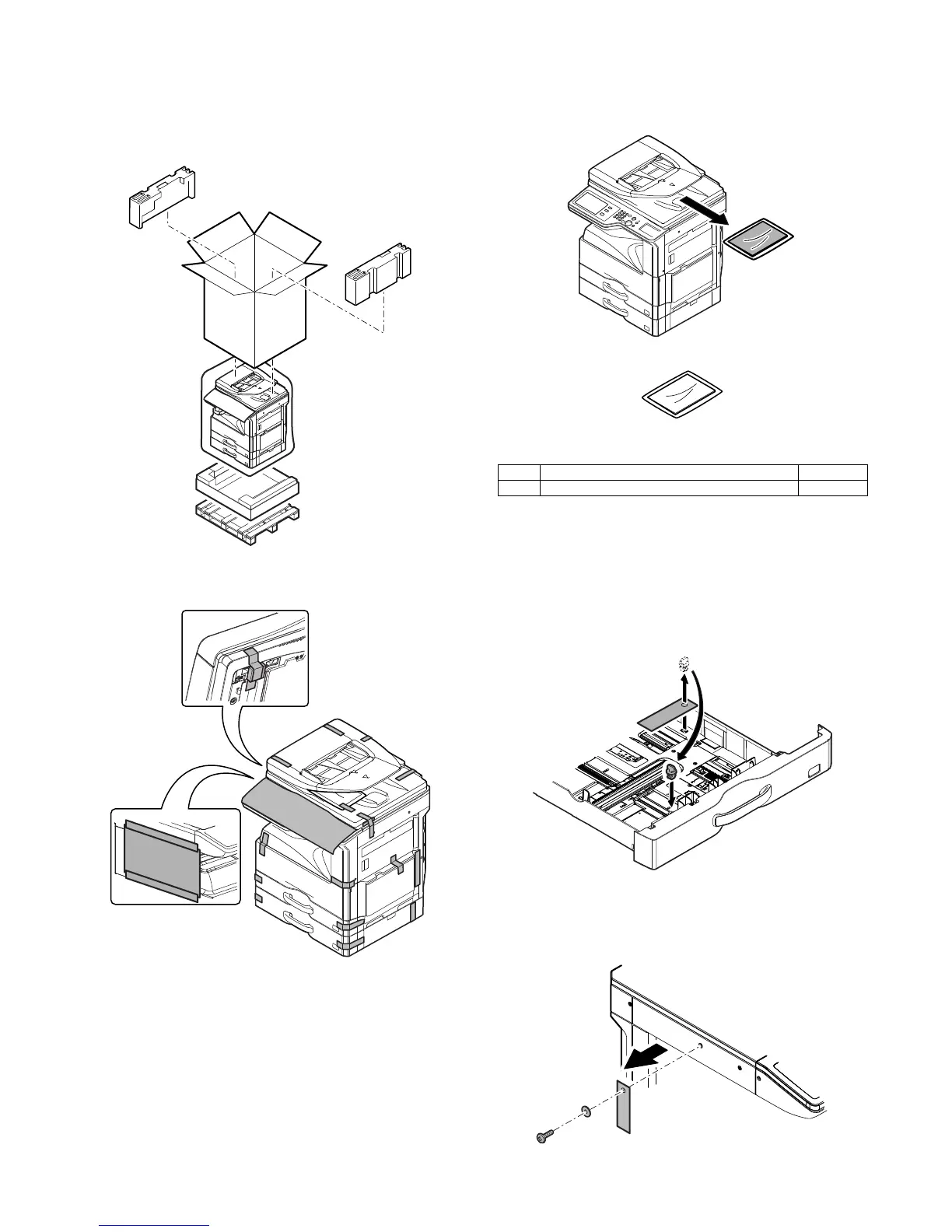

1. Unpacking
A. Unpacking
B. Fixing tape and protection material removal
C. Packed items check
D. Lock release
(1) Tray rotation plate lock release
1) Pull out the tray. Turn the fixing material and remove it.
Remove the caution label.
Attach the removed fixing material to the position shown in the
figure for future use.
Close the tray which was pulled out.
(2) Scanner (2/3 mirror unit) lock release
1) Remove the optical unit fixing screw, and remove the note
label.
No. Name Quantity
1 Operation manual 1
To Next Page
