MX-M264U Dehumidifying heater kit 23 – 2
2. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.

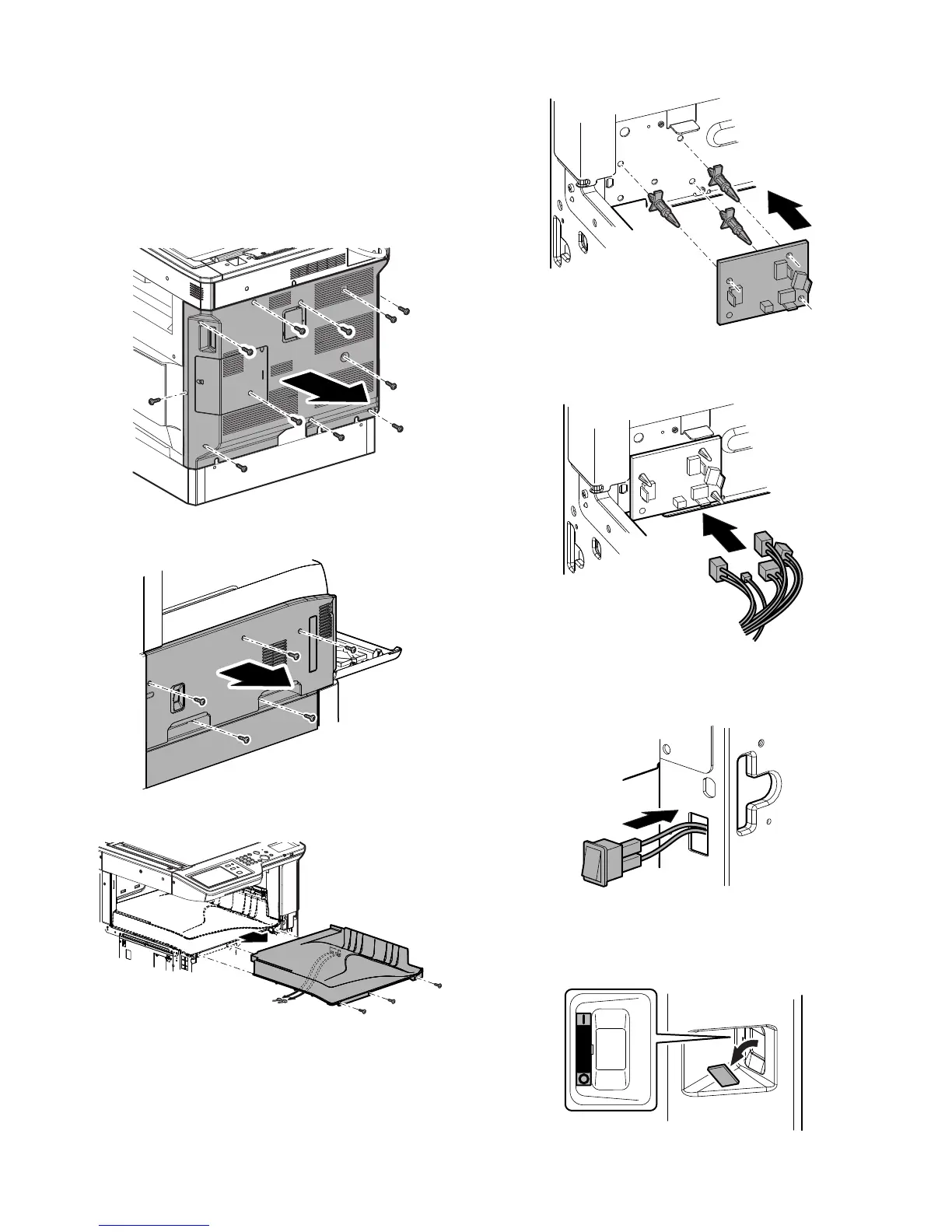

A. Heater electric component kit installation
(1) External fixture removal
1) Remove the rear cabinet.
2) Remove the left cabinet.
3) Remove the paper exit tray.
(2) WH PWB attachment
1) Attach the supporter, and attach the WH PWB.
2) Connect the harnesses bundled with an omega clamp to the
WH PWB according to the connector shapes and colors.
NOTE: Connectors CN3 and CN4 can be used commonly.
(3) Dehumidifier heater control switch attachment
1) Connect the WH harness to the dehumidifier heater control
switch, and attach the dehumidifier heater control switch.
2) Cut away the dehumidifier heater control switch section on the
rear cabinet.
Attach the dehumidifier heater control switch label to the rear
cabinet.
DH POWER
