Sharp MX-M264N Installation Manual

MX-M264U AR-SU1 (STAMP UNIT) 16 – 1
MX-M264U
Service Manual
[16] AR-SU1 (STAMP UNIT)

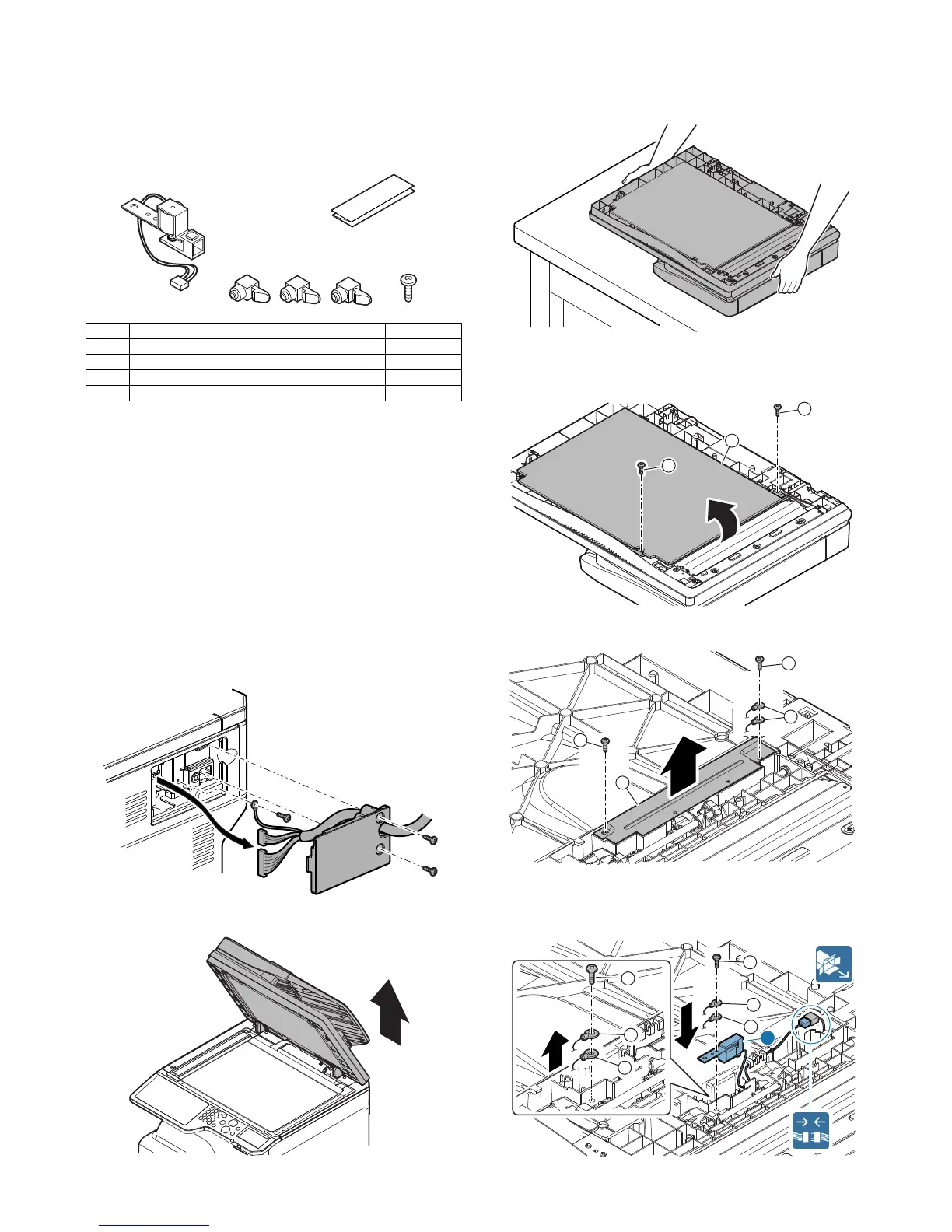

1. Unpacking
A. Packed items check
*1: When replacing the stamp cartridge, Refer to “Stamp cartridge
replacement” in the “Operation Guide” (PDF document). The user
must be notified of that. (Do not refer to “Stamp cartridge replace-
ment procedure” (package part).)
*2: This is not used.
2. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.
A. RSPF unit removal
1) Remove the rear upper cabinet cover. Remove the earth wire,
and disconnect the connector.
2) Remove the RSPF unit from the main unit.
3) Put the RSPF unit on a stable table with the OC mat upside.
B. Stamp unit attachment
1) Open the OC mat.
2) Remove the sensor cover.
3) Remove the screw from the stamp unit mounting section. Use
the removed screw to attach the stamp unit together with the
earth wire, and connect the connector.
No. Name Quantity
1 Stamp unit 1
2 Stamp cartridge replacement procedure
*1
1
3 Stamp cartridge 3
4 Installing screw
*2
1
1
2
34
1
1
2
3
1
1
2
1
2
2
4
5
4
3

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
