Sharp MX-M264N Installation Manual

MX-M264U MX-FX11 (FACSIMILE EXPANSION KIT) 14 – 1
MX-M264U
Service Manual
[14] MX-FX11 (FACSIMILE EXPANSION KIT)

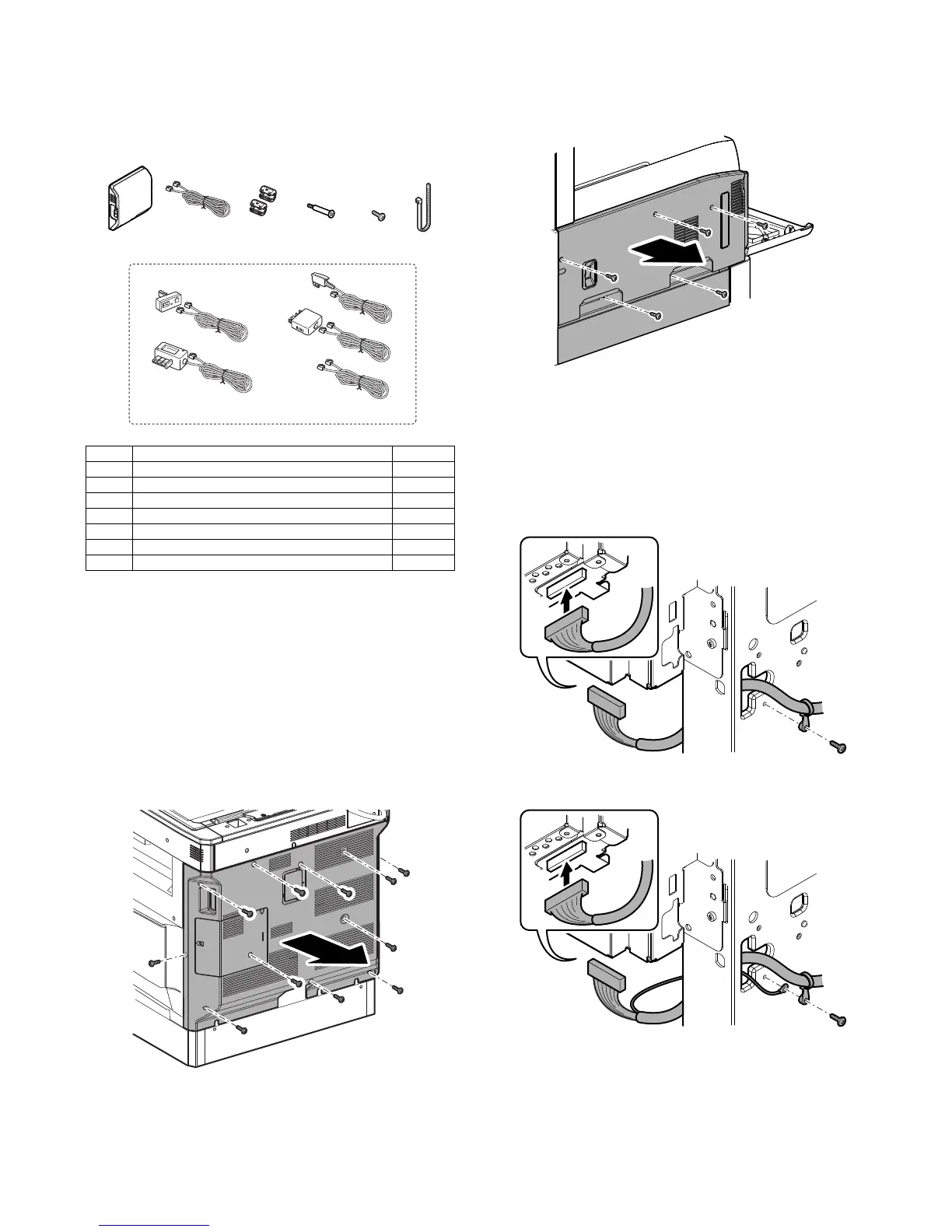

1. Unpacking
A. Packed items check
* Brazil, South Africa only
2. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.
A. Rear cabinet and left cabinet removal
1) Remove the rear cabinet.
2) Remove the left cabinet.
B. I/F cable connection
1) Pass the I/F cable through the hole in the frame to connect to
the connector.
Fix the binding band (and FG line (Taiwan, Brazil, South
Africa)) with the M3 screw included in the package.
NOTE: Check to confirm that it is securely connected.
Except Taiwan, Brazil, South Africa
Taiwan, Brazil, South Africa
No. Name Quantity
1Fax unit 1
2 Line cable 1
3 Ferrite core 2
4 Step screw (M3) 1 (2)*
5 M3 screw 1
6 Binding band 1
7 Line cable 1
214356
7
U.K
France
Germany
Australia
For othe destinations

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
