Sharp MX-M264N Installation Manual

MX-M264U MX-KB14 (KEYBOARD) 22 – 1
MX-M264U
Service Manual
[22] MX-KB14 (KEYBOARD)

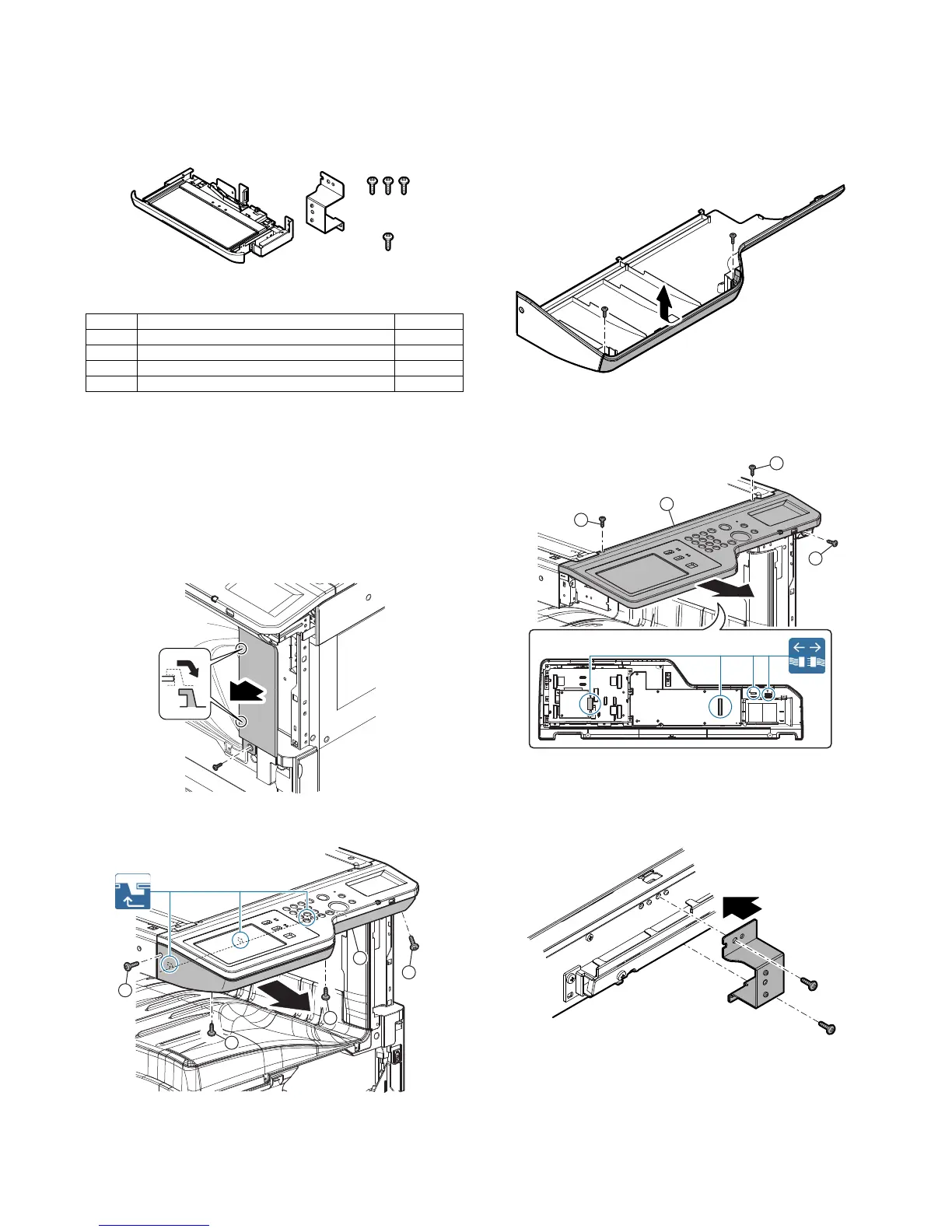

1. Unpacking
A. Check the packed items
2. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.
A. External fixture removal
1) Remove the front cabinet upper.
2) Remove the operation panel base plate.
3) Remove the operation panel base plate B from the operation
panel base plate A.
MEMO: When attaching the keyboard, the operation panel
base plate B is not used.
B. Operation panel removal
1) Remove the operation panel unit.
C. Keyboard unit attachment
1) Attach the keyboard unit mounting plate and fix it with the fix-
ing screw (M4 x 8 S-tight).
No. Name Quantity
1 Keyboard unit 1
2 Keyboard unit mounting plate 1
3 Fixing screw (M4 x 8 S-tight) 3
4 Fixing screw (M3 x 8 S-tight) 1
1
2
3
4
1
1
2
1
1
1
1
2
1

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
