MX-M264U Dehumidifying heater kit 23 – 1
MX-M264U
Service Manual
[23] Dehumidifying heater kit

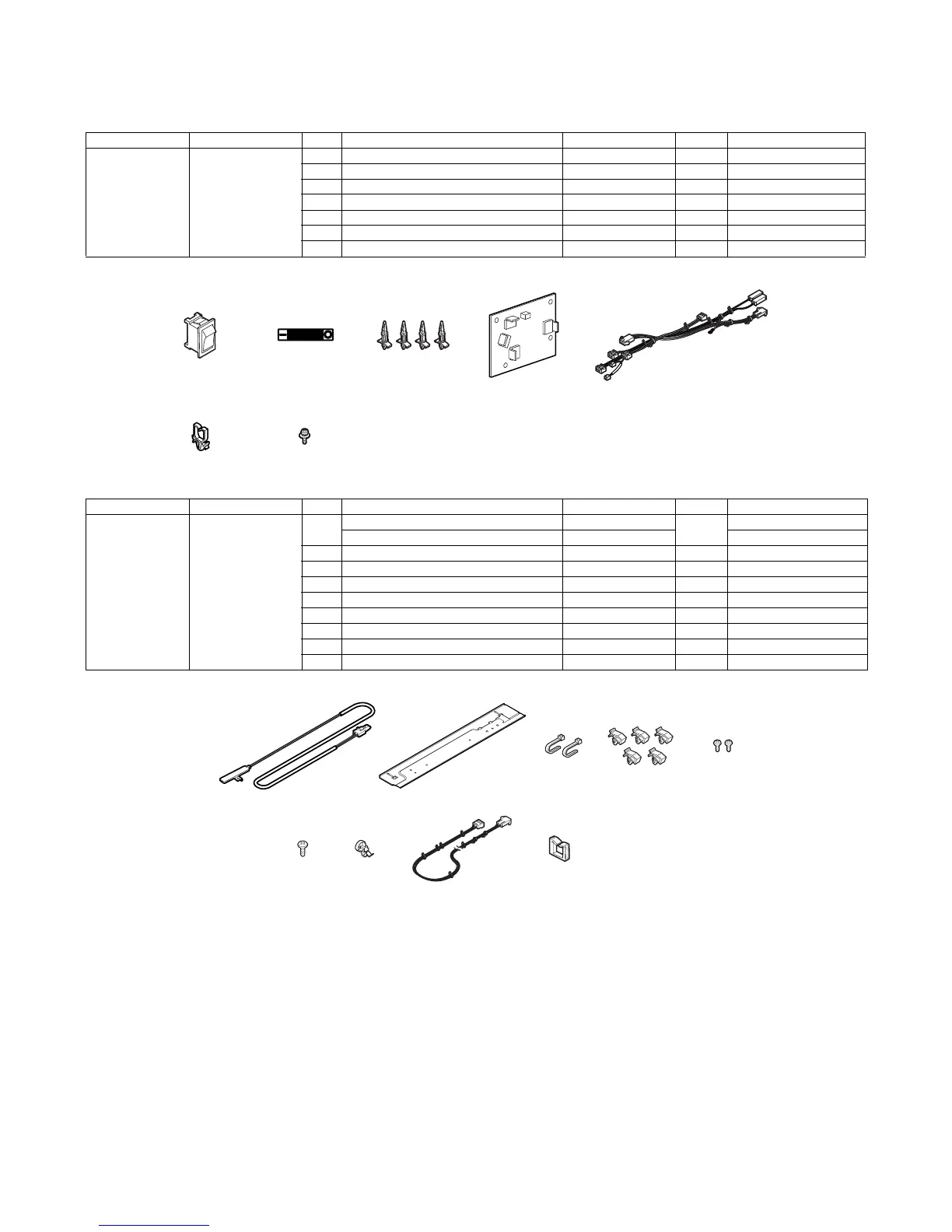

1. Parts list
Kit name Kit code No. Part name Part code Q'ty Remarks
Heater electric
component kit
DKIT-0425FCZZ 1 Dehumidifier heater control switch QSW-C9294QCZZ 1
2 Dehumidifier heater control switch label TLABZ5256FCZZ 1
3 Supporter LSUPP0140FCPZ 4 3 本のみ使用
4 WH PWB CPWBF1935FCE1 1
5 WH harness DHAI-4701FCPZ 1 Not used.
6 Clamp LHLDW2037FCPZ 1 Not used.
7 Screw XBPS730P08KS0 1 Not used.
DH POWER
1324
7
5
6
Kit name Kit code No. Part name Part code Q'ty Remarks
Scanner heater kit DKIT-0427FC11
(120V series)
DKIT-0427FC12
(230V series)
1 Scanner heater (120V) RHETP0129FCPZ 1
Scanner heater (230V) RHETP0130FCPZ
2 Heater fixing plate LPLTM6923FCZZ 1
3 Banding band LBNDJ0013FCZ1 2
4 Clamp LHLDW7011XCZZ 5
5 Screw (M3 x 4 Round-tipped) LX-BZ1041FCZZ 2
6 Screw (M4 x 6 Bind machine screw) XBBS740P06000 1
7 Snap band LBNDJ0043FCZZ 1
8 SCN-WH harness DHAI-4702FCPZ 1 Not used.
9 Edge holder LBSHC0353FCZZ 1 Not used.
5
67 9
23
4
8
1
