MX-M264U MX-FR37U (DATA SECURITY KIT) 17 – 1
MX-M264U
Service Manual
[17] MX-FR37U (DATA SECURITY KIT)
1. Unpacking
A. Packed items check
2. Installation
NOTE: To install the MX-FR37U (DATA SECURITY KIT), the MX-
HD12 (HARD DISK EXPANSION KIT) is required.
NOTE: Before installing the data security kit, be sure to perform
backup of data stored in the memory (including HDD) of the
main unit.
When the data security kit is installed, all the job data
stored in the memory (including HDD) of the main unit will
be lost.
NOTE: If the LINE indicator or the DATA indicator for the printer
and image transmission on the operation panel is lit or
blinking, data that has not been processed remains in the
memory of the main unit (including HDD). Output or trans-
mit all the data to clear the data remaining in the main unit
and then start installation.
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.

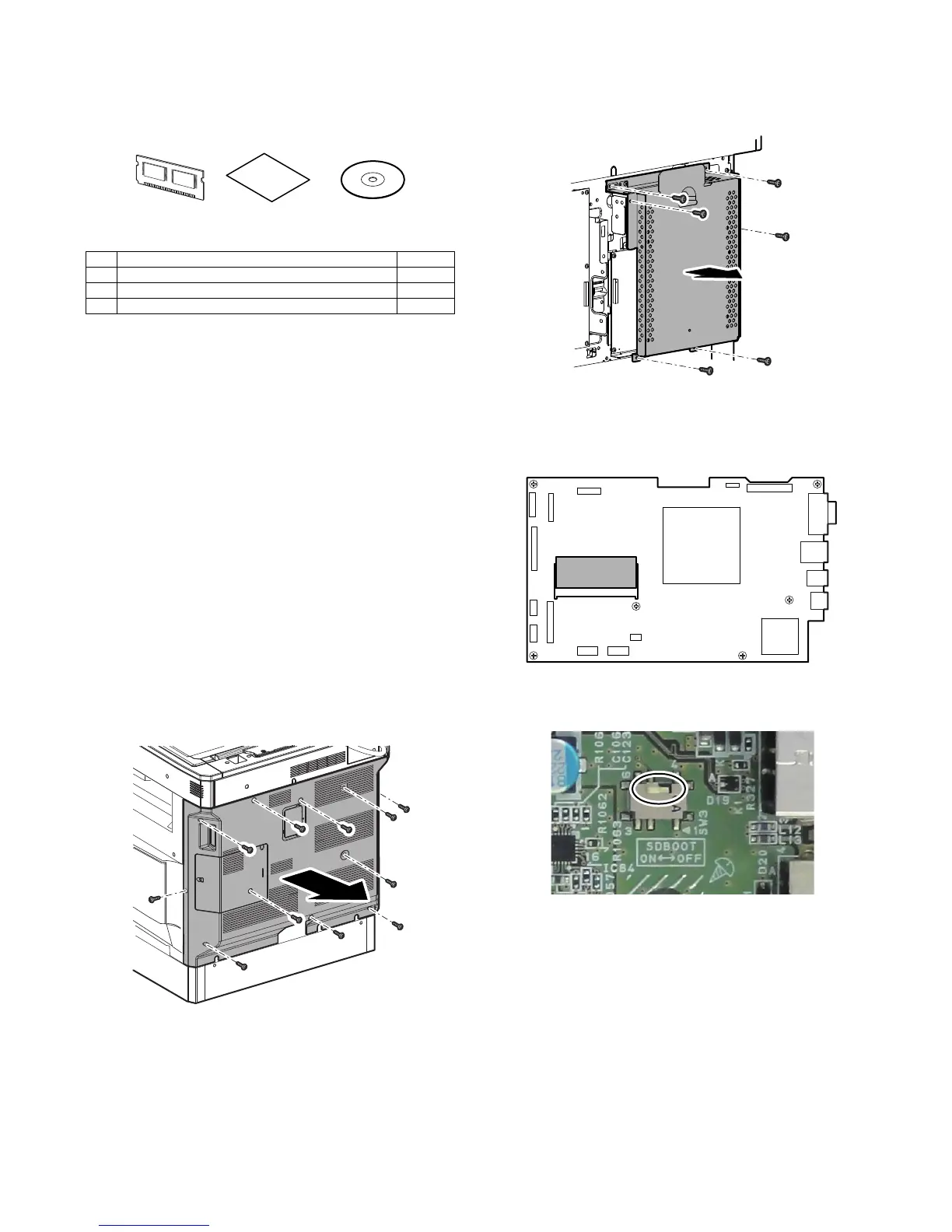

A. Rear cabinet and shield plate removal
1) Remove the rear cabinet.
2) Remove the shield plate.
B. Program ROM attachment
1) Attach the program ROM to the OPT ROM slot of the MFP
control PWB.
2) Set the BOOT SW on the right lower side of the MFP control
PWB to OFF.
No. Name Quantity
1Program ROM 1
2 Product key sheet 1
3 User manual (CD-ROM) 1
