Sharp MX-M264N Installation Manual

MX-M264U MX-DS16/DS17 (LOW STAND/HIGH STAND) 6 – 1
MX-M264U
Service Manual
[6] MX-DS16/DS17 (LOW STAND/HIGH STAND)

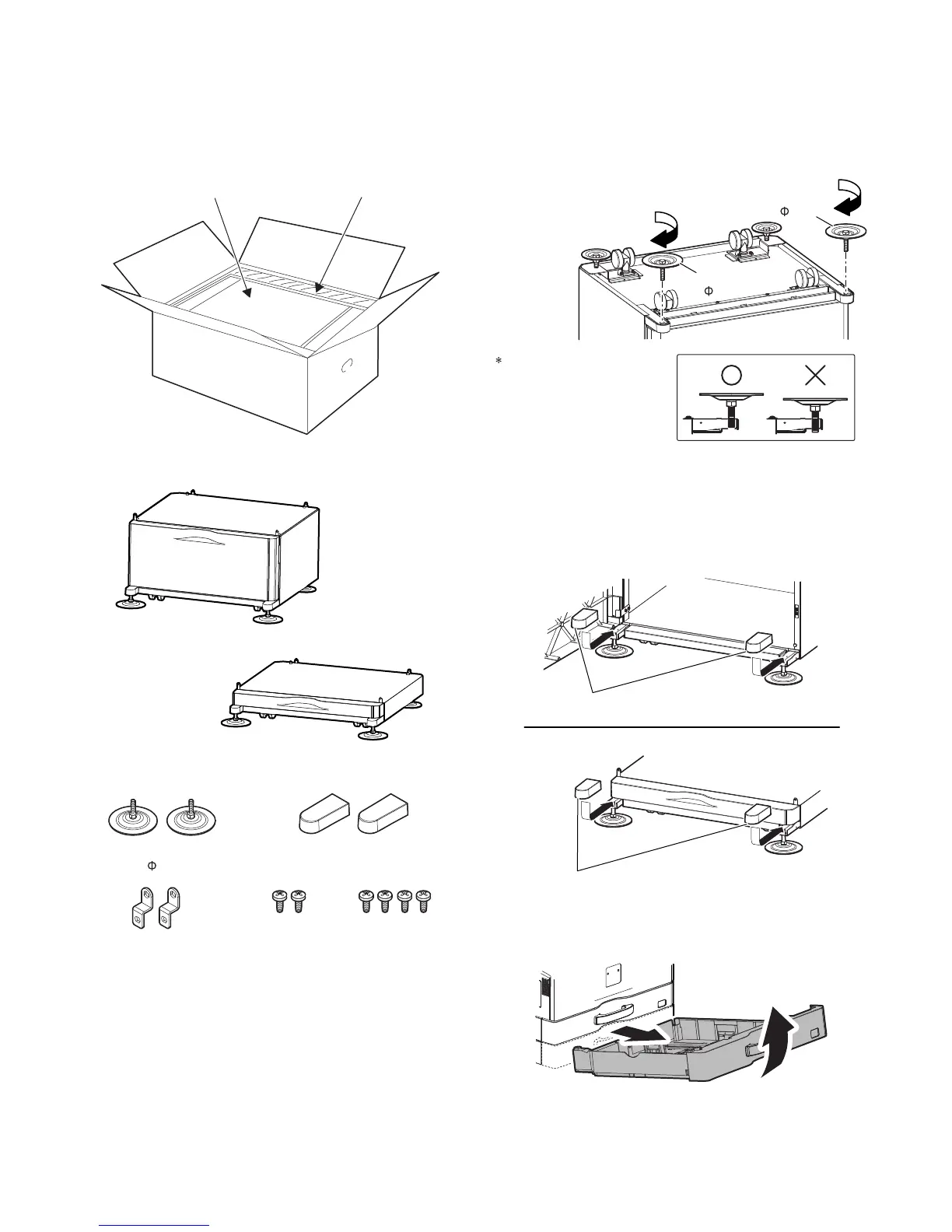

1. Unpacking
Unpack the package, and check to confirm that all the parts are
provided.
Packed parts
2. Installation
1) Attach the adjusters.
Attach the front adjusters (2 pcs.) as shown in the figure below.
2) Attach the adjuster covers.
Put the desk on the floor in the normal state, and open the
door.
Slide the adjuster covers (2 pcs.) as shown in the figure below
and attach them. Then, close the door.
3) Remove the paper tray.
Pull out the paper feed unit tray from the copier until it stops.
Lift it and remove it from the copier.
Machine stand
Packed parts add
MX-DS16
MX-DS17
Front adjusters: 2 pcs.
Adjuster covers: 2 pcs.
Copier connecting fixtures:
2 pcs.
Screws (S tight):
2pcs.
Screws (P tight):
4 pcs.
( 110)
Front
adjuster
Front
adjuster
Rear side
Front side
Screw the adjusters into
the hole so that the adjuster
tips do not extend out from
the hole.
( 110)
( 110)
Front side
Adjuster covers
Adjuster covers
Front side
MX-DS17
MX-DS16

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
