Sharp MX-M264N Installation Manual

MX-M264U MX-TR11 (JOB SEPARATOR) 9 – 1
MX-M264U
Service Manual
[9] MX-TR11 (JOB SEPARATOR)

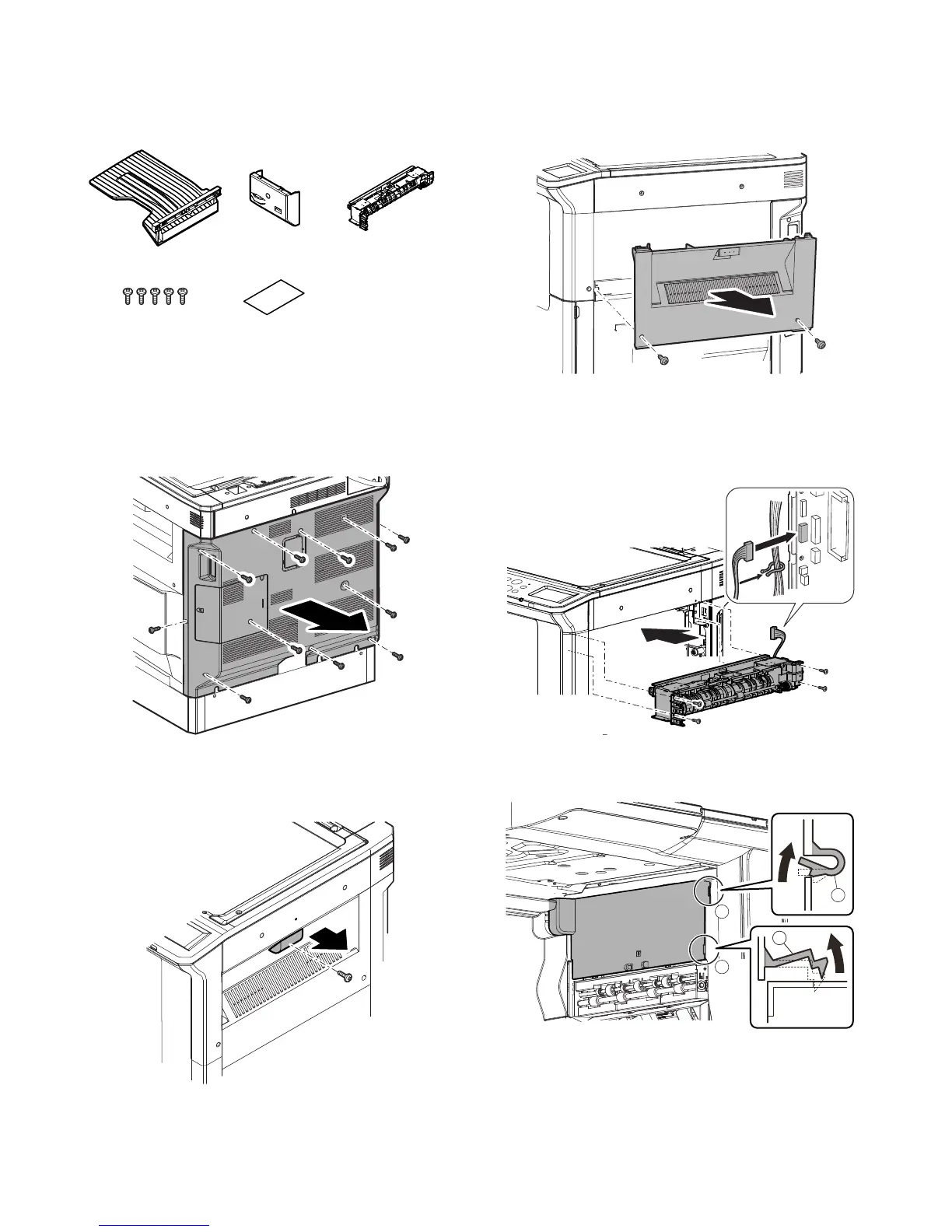

1. Parts included
2. Installation
NOTE: Turn off the main switch of the machine and then remove
the power plug of the machine from the outlet.
1) Remove the rear cabinet.
2) Remove the right cabinet lever cover.
(Dispose of the part after installation)
(M4 x 12 P tight)
3) Remove the right cabinet AS.
M4 x 10 P tight (2pcs)
4) Install the second paper exit UN.
M4 x 10 S tight (4pcs)
5) Connect the second paper exit UN connector to MCU UN.
Fixation treatment of the harness is required.
6) Disengage the pawls in the sequence of (1) and (2) and
remove the paper exit dummy cover.
Job separator unit
Second paper
exit tray holder
Second paper exit unit
M4x10(5pcs.)
Mylar
*Not used.
1
2
11
2

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
