MX-M264U MX-HD12 (HARD DISK EXPANSION KIT) 21 – 1
MX-M264U
Service Manual
[21] MX-HD12 (HARD DISK EXPANSION KIT)

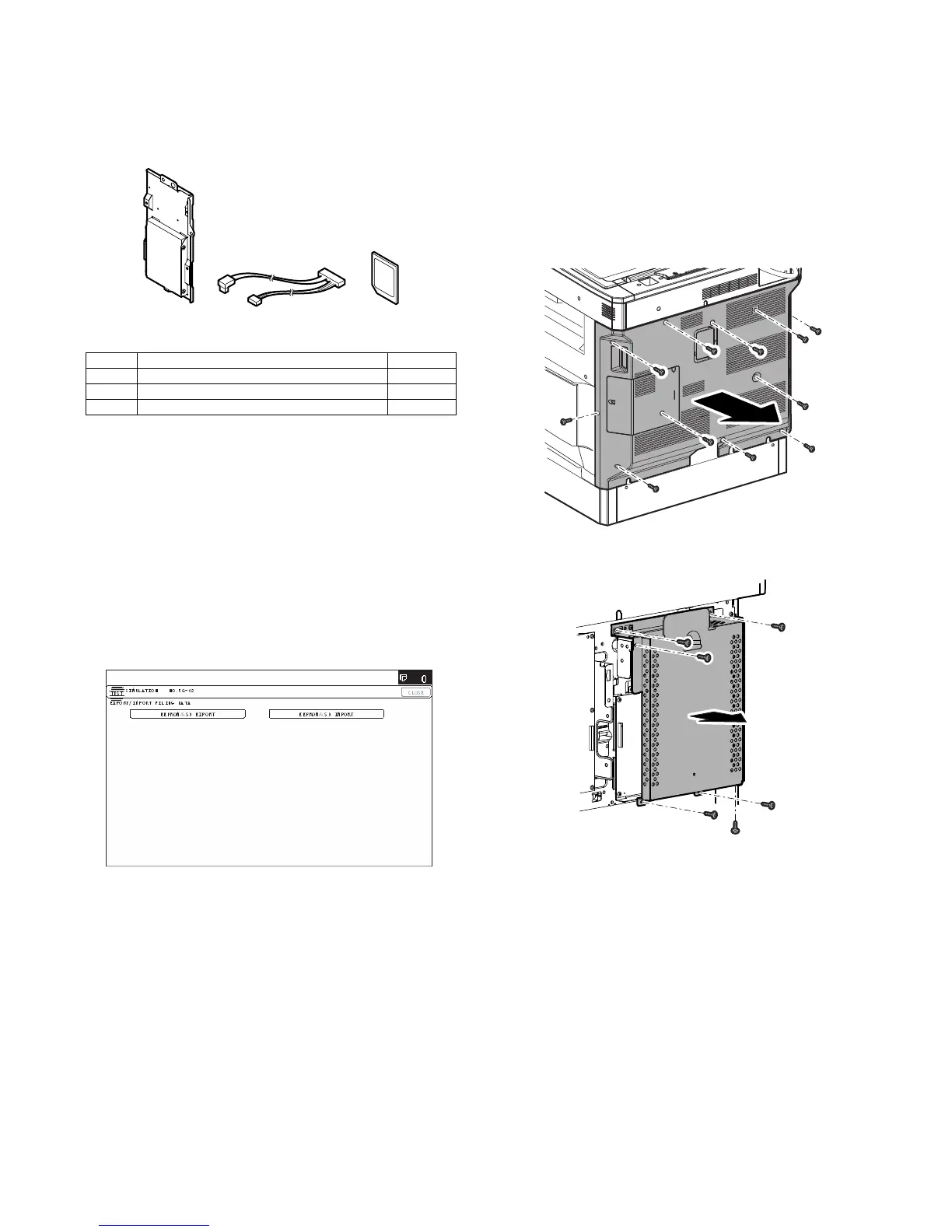

1. Unpacking
A. Packed items check
2. User data backup
NOTE: When installing a HDD option to a machine which has been
used by a user, the backup procedure of the user data
must be performed.
When installing a HDD option to a machine which has not
been used, the procedure is not required.
1) Use SIM56-2 to backup the SD card data into a USB memory.
Insert a USB memory to the machine, and enter the SIM56-2
mode.
Select [EEPROM & SD EXPORT], and press [EXECUTE] key
and then [YES] key.
When the backup operation is completed, "COMPLETE" is dis-
played. Check to confirm the display.
2) When the address book has been registered, use the storage
backup function to backup the address book data.
3) When the home screen of the operation panel has been cus-
tomized, use the device cloning function to backup the SD
card data.
NOTE: The backup data must be restored to the machine
after installing an option HDD.
(Refer to the page of "4. User data restore.")
4) If there are some FAX/IFAX image data, use SIM66-62 to
backup the image data into a USB memory. Then give the PDF
file to the user.
NOTE: The FAX/IFAX receive data can be transferred to a
USB memory, but cannot be restored.
3. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.
A. Rear cabinet and shield plate removal
1) Remove the rear cabinet.
2) Remove the shield plate.
No. Name Quantity
1 HDD unit 1
2 SATA cable 1
3 SD card 1
To Next Page
