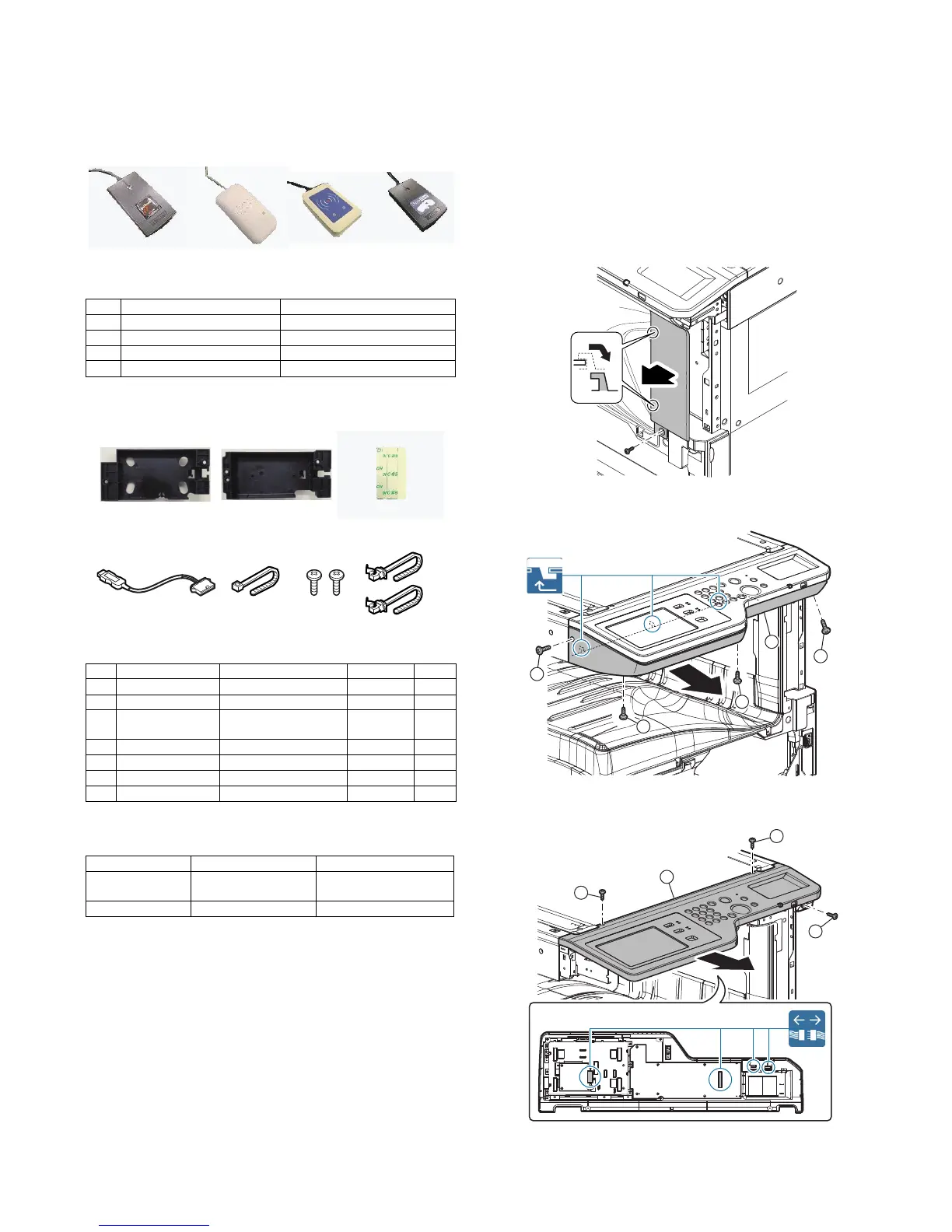

MX-M264U IC card reader 24 – 1
MX-M264U
Service Manual
[24] IC card reader
1. Preparation
A. Supported IC card readers
B. Necessary parts
MEMO: There are two kinds of card reader holders. Choose the
suitable one according to the card reader to be installed.
2. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.
A. Operation panel removal
1) Remove the front cabinet upper.
2) Remove the operation panel base plate.
3) Remove the operation panel unit.
No. Manufacturer Model Name
1 RFIDeas RDR-6081AKU
2 Equitrac Y591-EHID-201 v01
3Elatec TWN3
4 RFIDeas RDR-7582AKU
No. Parts code Parts name Price rank Q’ty
1 LHLDZ0171QSZZ IC Card reader holder B 1
2 LHLDZ0172QSZZ IC card reader holder C 1
3 PTEP-0325FCZZ Card reader fixing tape
(Double-stick tape)
AP 2
4 DHAI-4709FCPZ USB mini harness-AR BP 1
5 LBNDJ0013FCZ1 Binding band AE 1
6 XEBS730P08000 Screw (M3 x 8 P tight) AC 2
7 LBNDJ0071FCZZ Binding band AC 2
Parts code Parts name Supported IC card
LHLDZ0171QSZZ IC card reader holder B RDR-6081AKU, TWN3,
RDR-7582AKU
LHLDZ0172QSZZ IC card reader holder C Y591-EHID-201 v01
1234
123
45 76
1
1
2
1
1
1
1
2
1
