Sharp MX-M264N

MX-M264U MX-FN23 (FINISHER) 7 – 1
MX-M264U
Service Manual
[7] MX-FN23 (FINISHER)

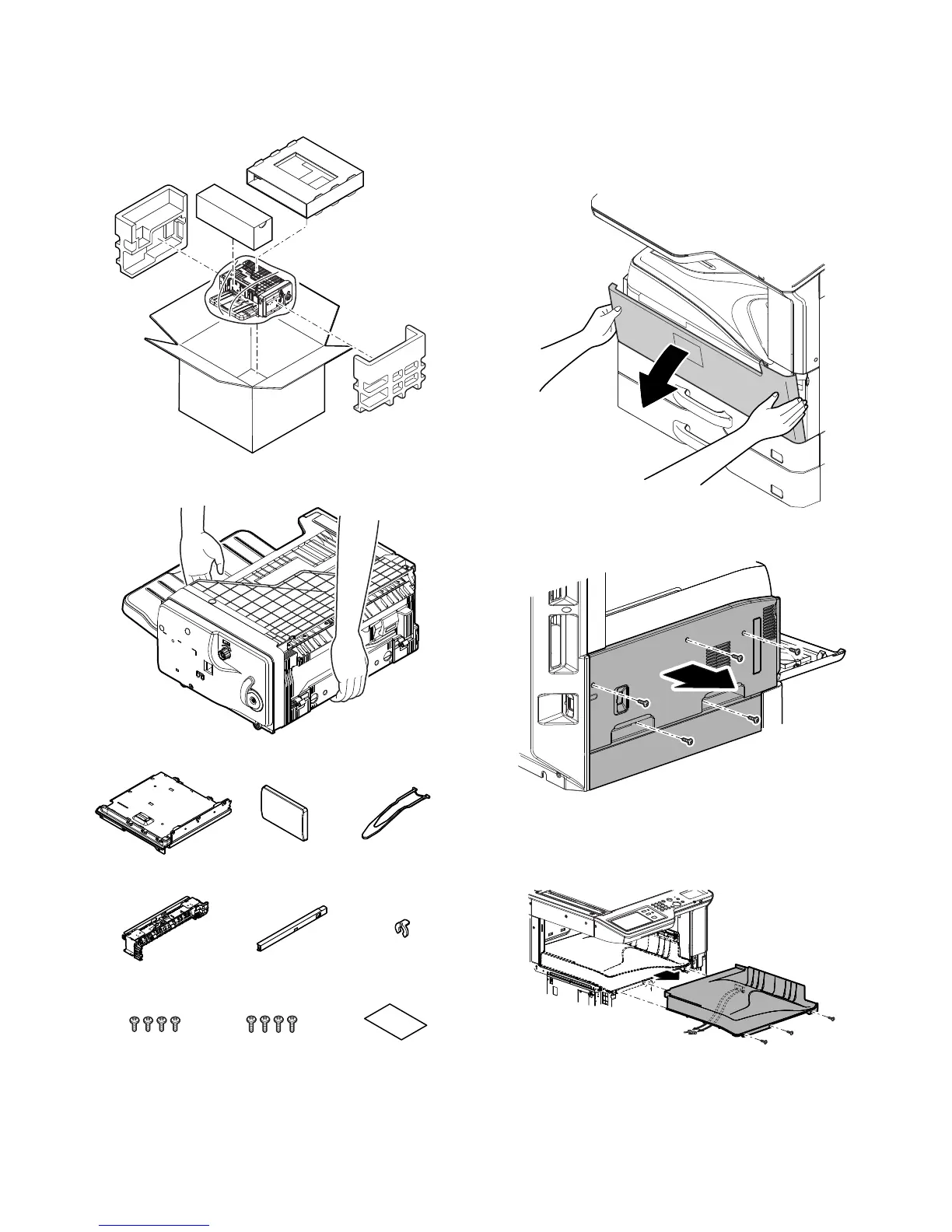

1. Unpacking
MEMO: When removing the finisher, put your hand beneath the
unit and lift it up as shown below.
Check to confirm that all the packed parts are provided.
2. Installation
NOTE: Turn off the main switch of the machine and then remove
the power plug of the machine from the outlet.
1) Open the front cover.
2) Remove the screws, and remove the left cabinet.
3) Remove the screw which are fixing the paper exit tray.
Remove the paper exit tray by using care for the tray paper
presence detection harness which is connected to the back
side of the paper exit tray.
FIN connection unit FIN front cover
Second paper exit unit
Paper holding arm
Rail dummy cover
M3x8Stight bind
(4 pcs.)
M3 x 10 S tight bind
(4 pcs.)
Resin grip
Staple position label
