Sharp MX-M264N Installation Manual

MX-M264U MX-FN23 (FINISHER) 7 – 2

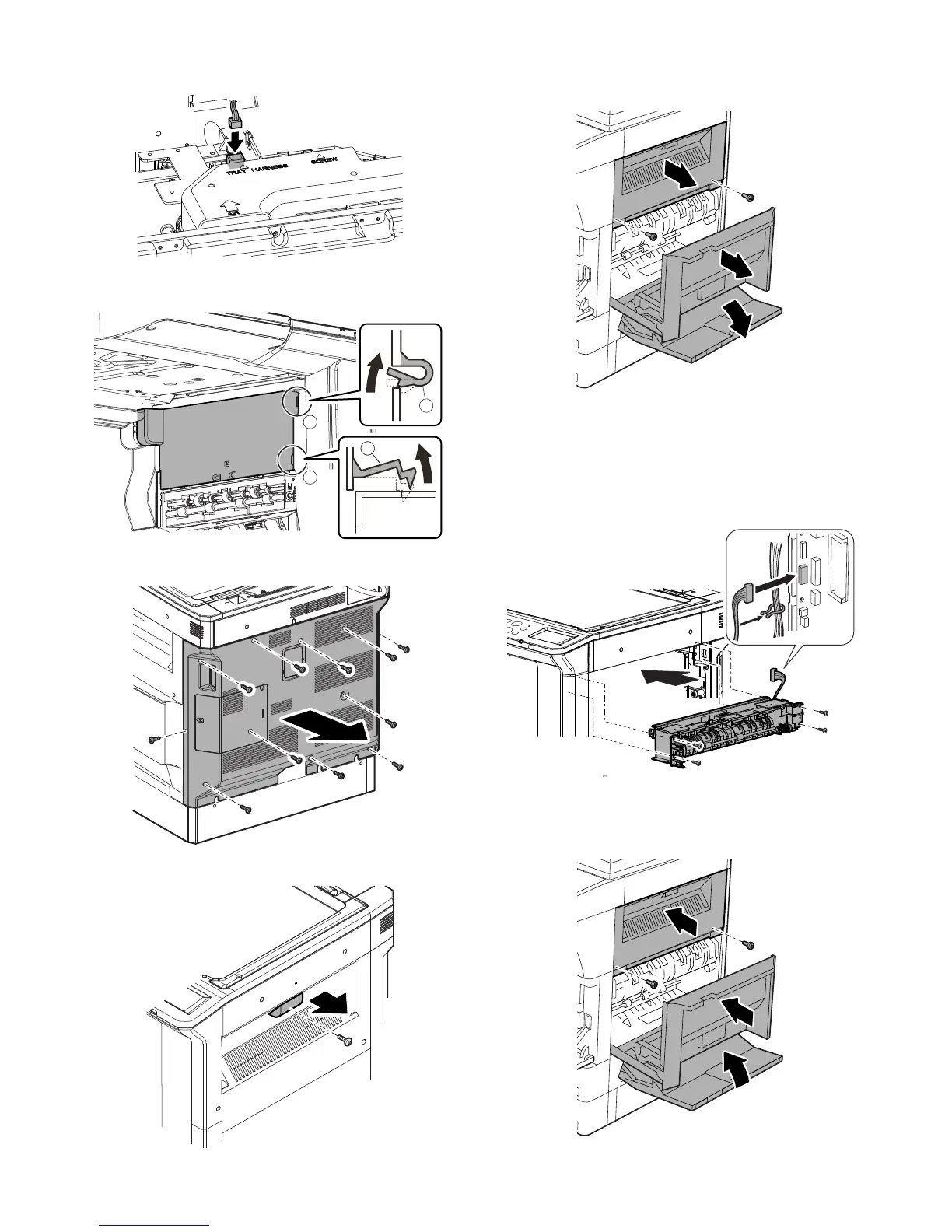

4) Insert the tray paper presence detection harness into the
dummy connector on the fan duct.
5) Disengage the pawls in the sequence of (1) and (2) and
remove the paper exit dummy cover.
6) Remove the screw and remove the rear cabinet.
7) Remove the screw, and remove the right cabinet lever cover.
8) Open the manual feed tray and the right door.
Remove the two screws, and remove the right cabinet.
9) Pass the harness (packed together with the unit) of the second
paper exit unit though inside of the frame plate as shown in the
figure.
Install the second paper exit unit to the machine, and fix it with
the four M4 S tight screws which are packed together with the
finisher. Connect the connector of the harness.
10) Install the right cabinet to the original position, and fix it with
two screws.
Close the right door and the manual paper feed tray.
1
2
11
2

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
