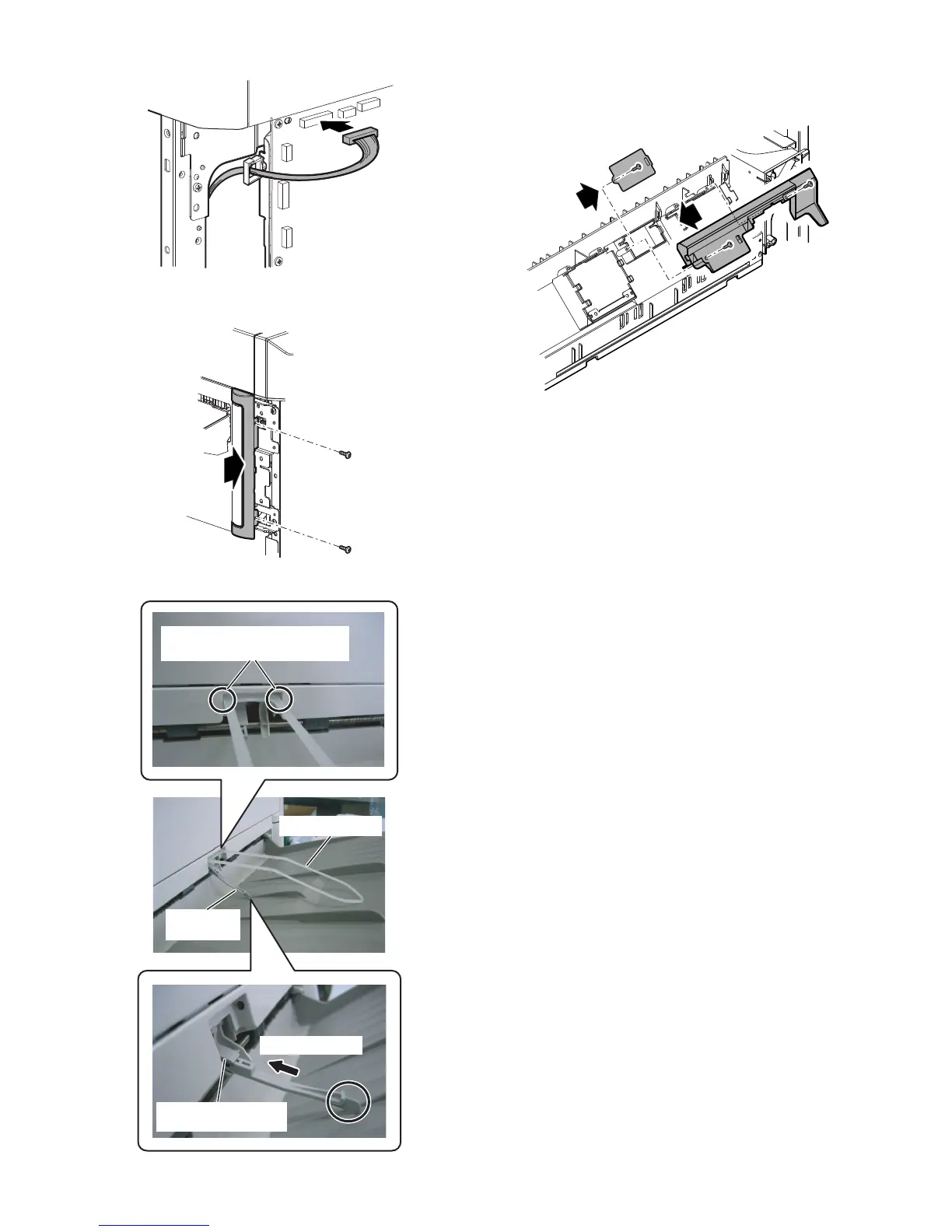

MX-M264U MX-TE10 (EXIT TRAY UNIT) 8 – 2
7) Wiring
8) Install the paper exit right cover sub and tightening the screw.
3 x 4 screw (S) 2PCS
9) Install the right paper exit actuator and the paper holding arm.
10) Remove the screw and remove the paper exit fan connector
sheet.
11) Install the harness cover OP and tightening the screw.
Paper holding arm
Right paper
exit actuator
Insertion direction
Right paper exit paper
full detection fulcrum
Insert it to the hole of the paper
exit right cover (R side, F side)
