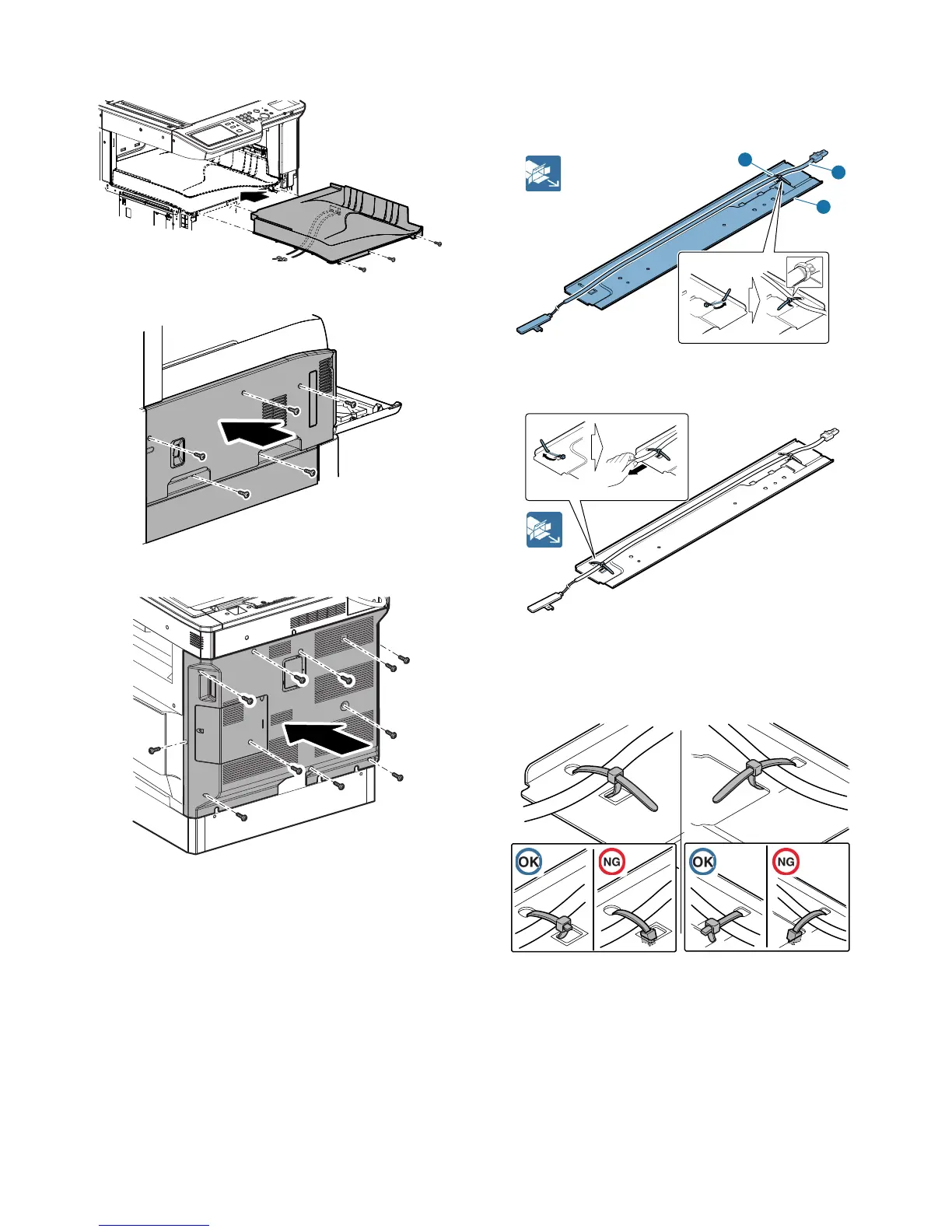

MX-M264U Dehumidifying heater kit 23 – 3
(4) External fixture attachment
1) Attach the paper exit tray
2) Attach the left cabinet.
3) Attach the rear cabinet.
B. Scanner heater kit installation
(1) Scanner heater unit assembly
1) Secure the marking position on the harness of the scanner
heater to the heater fixing plate with the banding band.
2) Extend the harness, and secure the other position of it with
banding band.
3) Tighten the snap band and cut its tip to approx. 5 mm or less.
Slide the banding band head to the square hole (Part that is
enclosed by the mark).
NOTE: The banding band head and cut tip must not protrude
behind the heater fixing plate.
