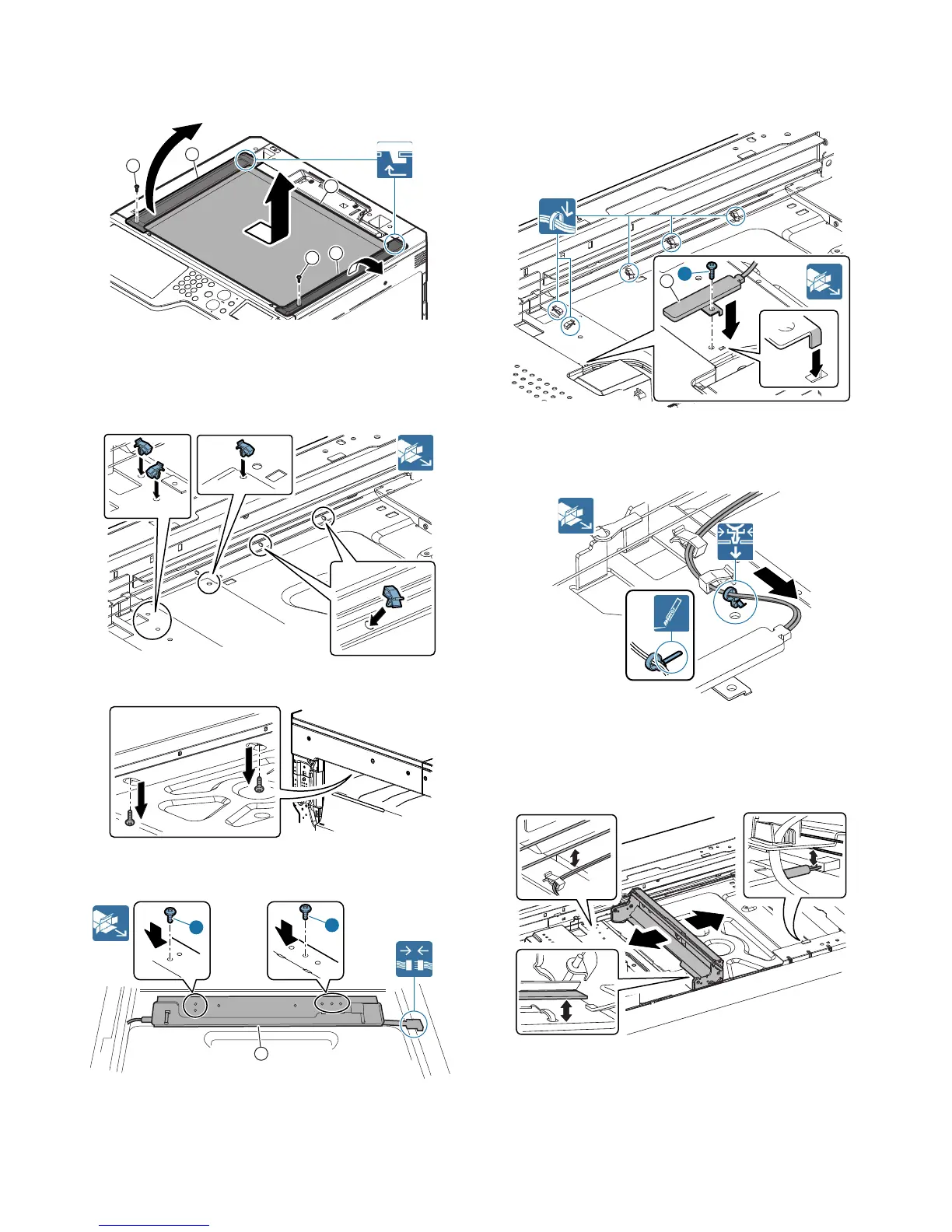

MX-M264U Dehumidifying heater kit 23 – 4

(2) Table glass removal

1) Remove the glass holder. Remove the table glass and the

SPF glass.

(3) Scanner heater unit attachment

1) Attach the clamp to the scanner frame.

NOTE: When installing, be careful to prevent damage of the

wire.

2) Remove two screws from the scanner bottom.

3) Connect the harness of the scanner heater. Attach the scanner

heater unit, and fixing the screw (M3 x 4 Round-tipped).

4) Attach the scanner heater and secure it with the screw (M4 x 6

Bind machine screw). Pass the harness through the clamp.

NOTE: The convex part of the scanner heater must be

inserted into the hole of the scanner frame.

5) Tighten the loose scanner heater harness by pulling it in the

arrow direction and secure it with the snap band then cut its tip

to approx. 5 mm or less.

6) Move the lamp unit by hand and check that it move smoothly in

all movable area.

NOTE: Check that there is no interference of the harness of

the scanner heater in the wire and the 2/3 mirror unit.
