Sharp MX-M314N Service Manual

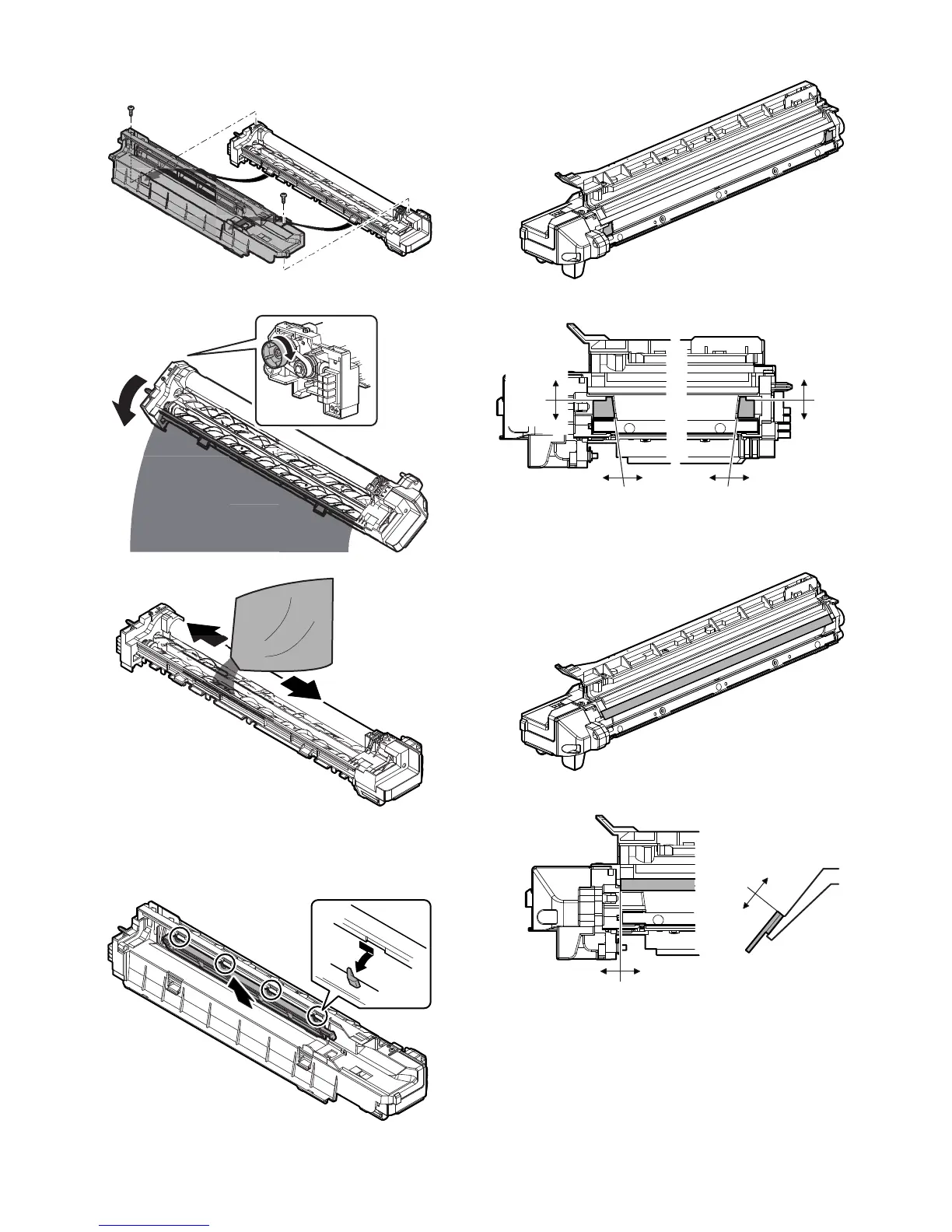

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 4
2. Developing section
A. Developer
Turn the MG roller to discharge developer.
B. Toner filter unit
With the guide AS (cover) removed, replace it.
When replacing, clean the guide AS.
C. DV side sheet F/ DV side sheet R
DV side sheet F/ DV side sheet R attachment reference
D. DV blade
DV blade attachment reference
00.5 0 0.5
0
0.3
0
0.3
Projection edge
reference
Projection edge
reference
Molt
edge
reference
Molt
edge
reference
0
0.5
[Cross-section]
0
0.5
Bump
reference
Rib reference

Sharp MX-M314N Specifications

General

Print Technology	Laser
Print Speed	31 ppm
Standard Paper Capacity	1100 sheets
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	31 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Network Connectivity	Ethernet
Functions	Print, Copy, Scan, Fax
Warm-up Time	20 seconds
Fax Transmission Speed	33.6 Kbps
Max Paper Size	A3
Scanner Type	Color
Display	7-inch color touchscreen
Original Size	A3
Operating System Compatibility	Windows, Mac, Linux
