Sharp MX-M314N Service Manual

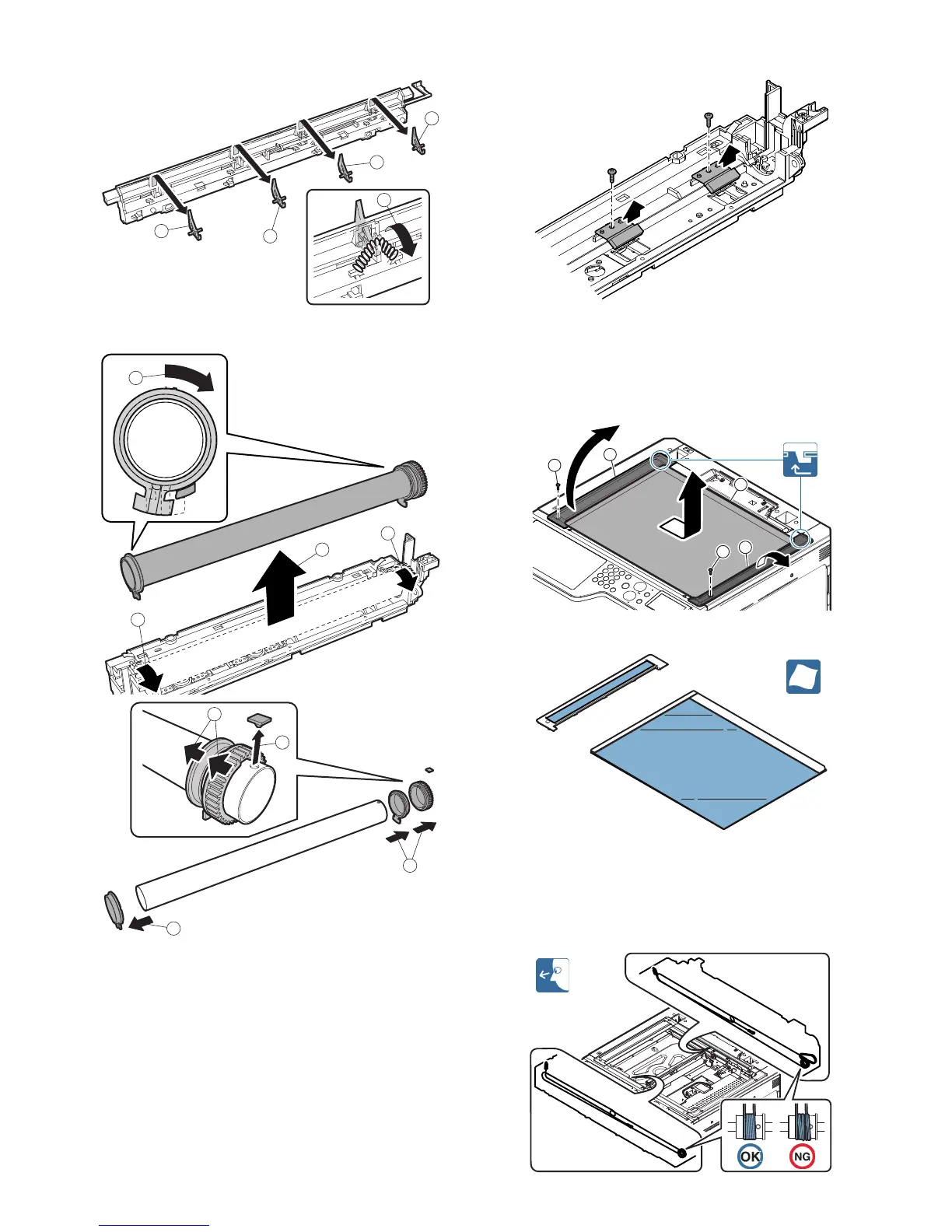

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 7
H. Fusing separation pawl (upper)
I. Upper heat roller
J. Thermistor cleaning pad
4. Optical section
A. Table glass, SPF glass
1) Remove the glass holder. and the table glass. Remove the
table glass, and the SPF glass.
2) Clean the both surfaces of the table glass, and the SPF glass.
B. Drive belt, Drive wire
1) Remove the table glass.
2) Check the tension of the drive belt and the drive wire. Check to
confirm that the drive wire in the winding pulley is wound with-
out clearance.
2
2
2
2
1
1
1
1
2
1
2
3
3
1
4
5
2
3

Sharp MX-M314N Specifications

General

Print Technology	Laser
Print Speed	31 ppm
Standard Paper Capacity	1100 sheets
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	31 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Network Connectivity	Ethernet
Functions	Print, Copy, Scan, Fax
Warm-up Time	20 seconds
Fax Transmission Speed	33.6 Kbps
Max Paper Size	A3
Scanner Type	Color
Display	7-inch color touchscreen
Original Size	A3
Operating System Compatibility	Windows, Mac, Linux
