Sharp MX-M314N Service Manual

MX-M264U EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 10

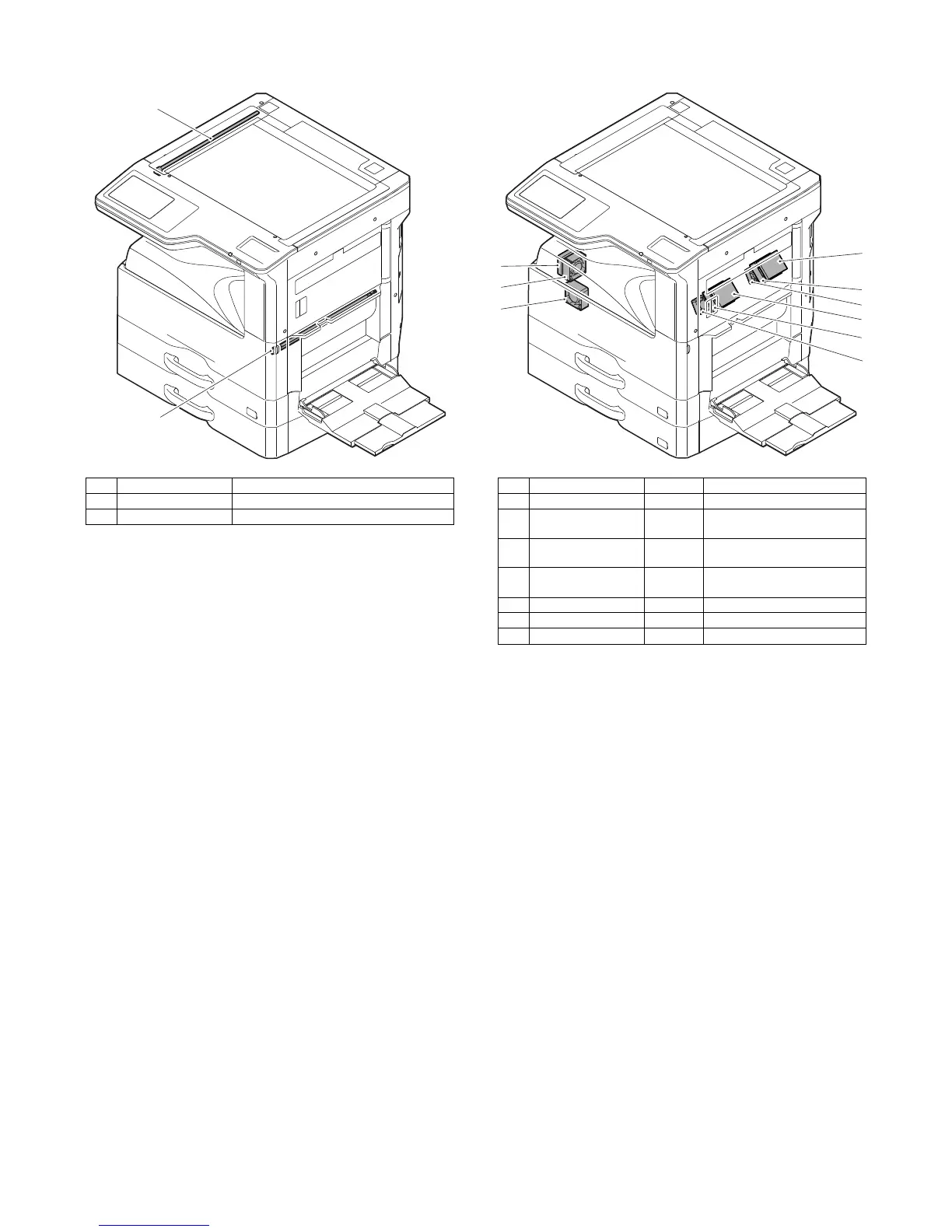

11. Lamp 12. Fan/Filter
No. Name Function and operation
1 Copy lamp Image exposure lamp
2 Heater lamp Fusing heat lamp
1
2
No. Name Code Function and operation
1 Fusing fan FUFM1/2 Cools the inside of the unit.
2 Power supply cooling
fan 1
PSFM1 Cools the inside of the unit.
3 Power supply cooling
fan 2
PSFM2 Cools the inside of the unit.
4 Paper exit fan POFM1 Cools the inside of the unit.
(31cpm/35cpm machine only)
5 Paper exit fan POFM2 Cools the inside of the unit.
6Ozone filter
7Ozone filter
7
2
3
4
6
1
1
5
6

Sharp MX-M314N Specifications

General

Print Technology	Laser
Print Speed	31 ppm
Standard Paper Capacity	1100 sheets
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	31 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Network Connectivity	Ethernet
Functions	Print, Copy, Scan, Fax
Warm-up Time	20 seconds
Fax Transmission Speed	33.6 Kbps
Max Paper Size	A3
Scanner Type	Color
Display	7-inch color touchscreen
Original Size	A3
Operating System Compatibility	Windows, Mac, Linux
