Sharp MX-M314N Service Manual

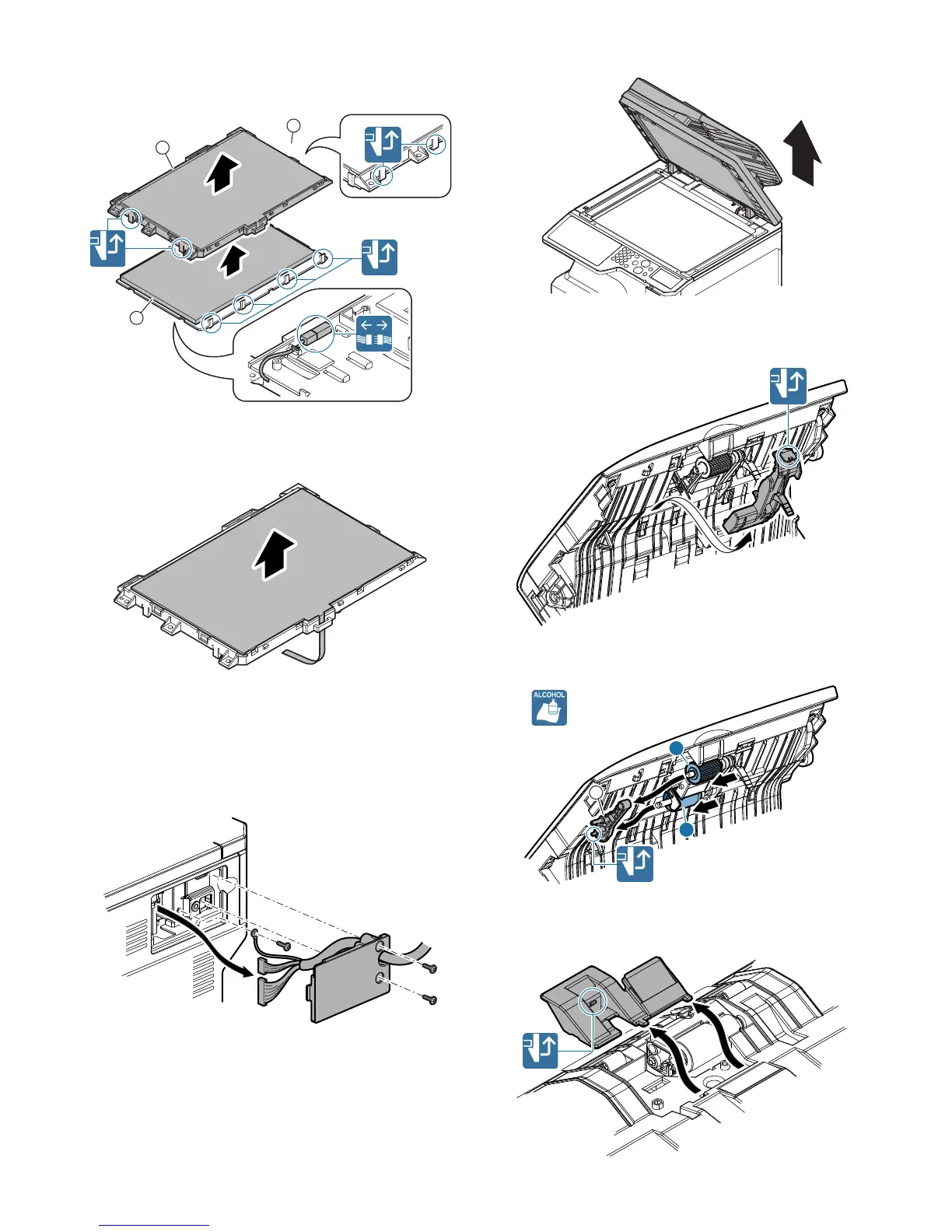

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 22
3) Remove the holder, and remove the LCD.
CAUTION: Use enough care not to put finger prints on the LCD sur-
face.
4) Remove the touch panel.
CAUTION: Use enough care not to put finger prints on the touch
panel surface.
14. RSPF
A. RSPF unit
1) Remove the rear upper cabinet.
2) Disconnect the connector. Remove the harness guide.
3) Remove the RSPF unit from the machine.
(1) Document pickup roller, Paper feed roller
1) Open the paper feed unit, and remove the cover.
2) Remove the holder, and remove the document pickup roller,
and the paper feed roller.
(2) Separation roller, Torque limiter SPF
1) Open the paper feed unit, and remove the cover.
1
2
2
2
2
1

Sharp MX-M314N Specifications

General

Print Technology	Laser
Print Speed	31 ppm
Standard Paper Capacity	1100 sheets
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	31 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Network Connectivity	Ethernet
Functions	Print, Copy, Scan, Fax
Warm-up Time	20 seconds
Fax Transmission Speed	33.6 Kbps
Max Paper Size	A3
Scanner Type	Color
Display	7-inch color touchscreen
Original Size	A3
Operating System Compatibility	Windows, Mac, Linux
