Sharp MX-M314N Service Manual

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 21

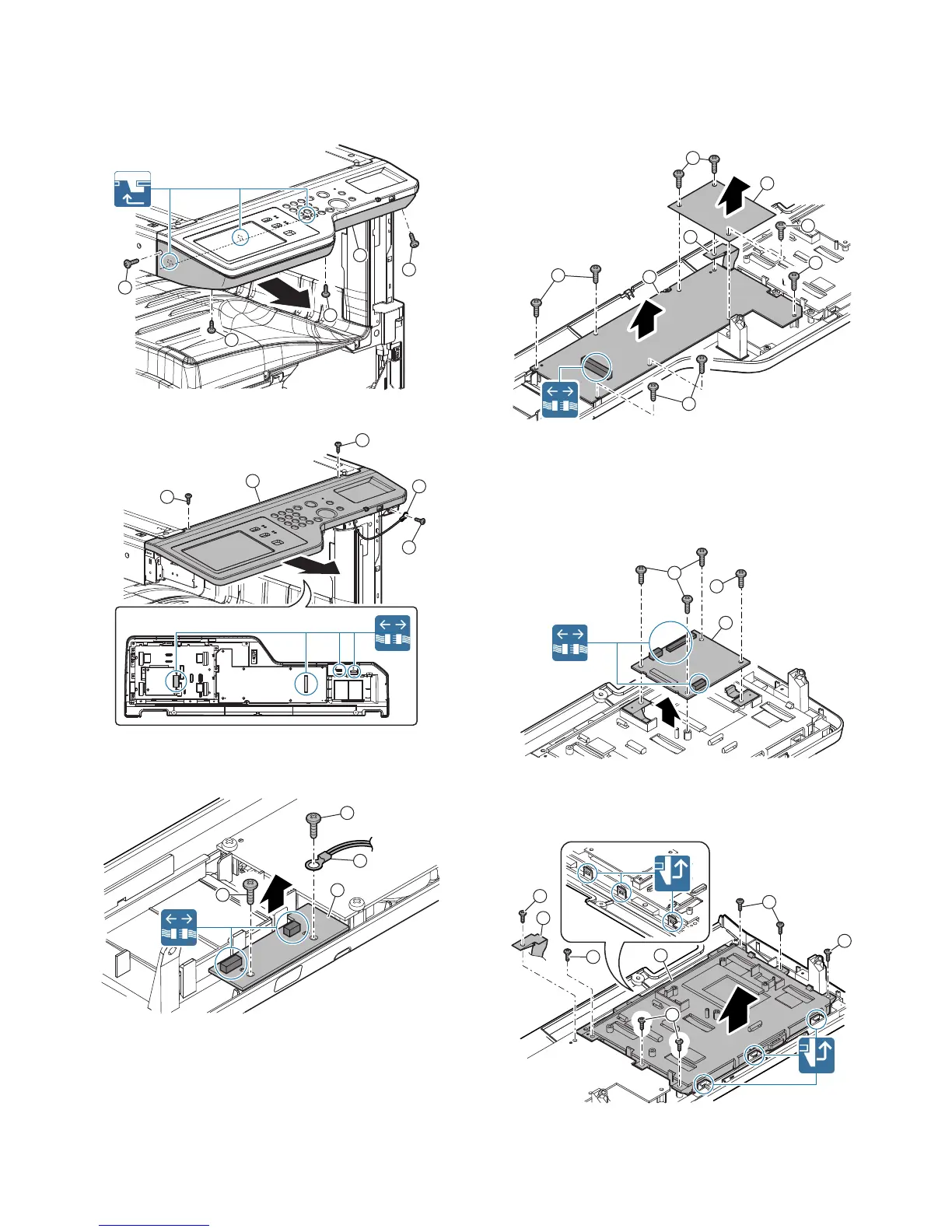

13. Operation section
A. Operation panel unit
1) Remove the front cabinet upper.
2) Remove the operation panel base plate.
3) Remove the operation panel unit.
B. USB I/F PWB
1) Remove the USB I/F PWB.
C. KEY PWB
1) Remove the Mylar, the earth sheet, and remove the KEY
PWB.
CAUTION: When installing, be careful of the overlapping sequence
of the Mylar and the earth sheet.
D. LVDS PWB, LCD, Touch panel
1) Remove the screw, disconnect the connector, and remove the
LVDS PWB.
CAUTION: When installing, be careful of the overlapping sequence
of the earth sheet.
2) Remove the screw, and remove the LCD holder.
CAUTION: When installing, be careful of the overlapping sequence
of the earth sheet.
