MX-M264U ADJUSTMENTS AND SETTINGS 5 – 8

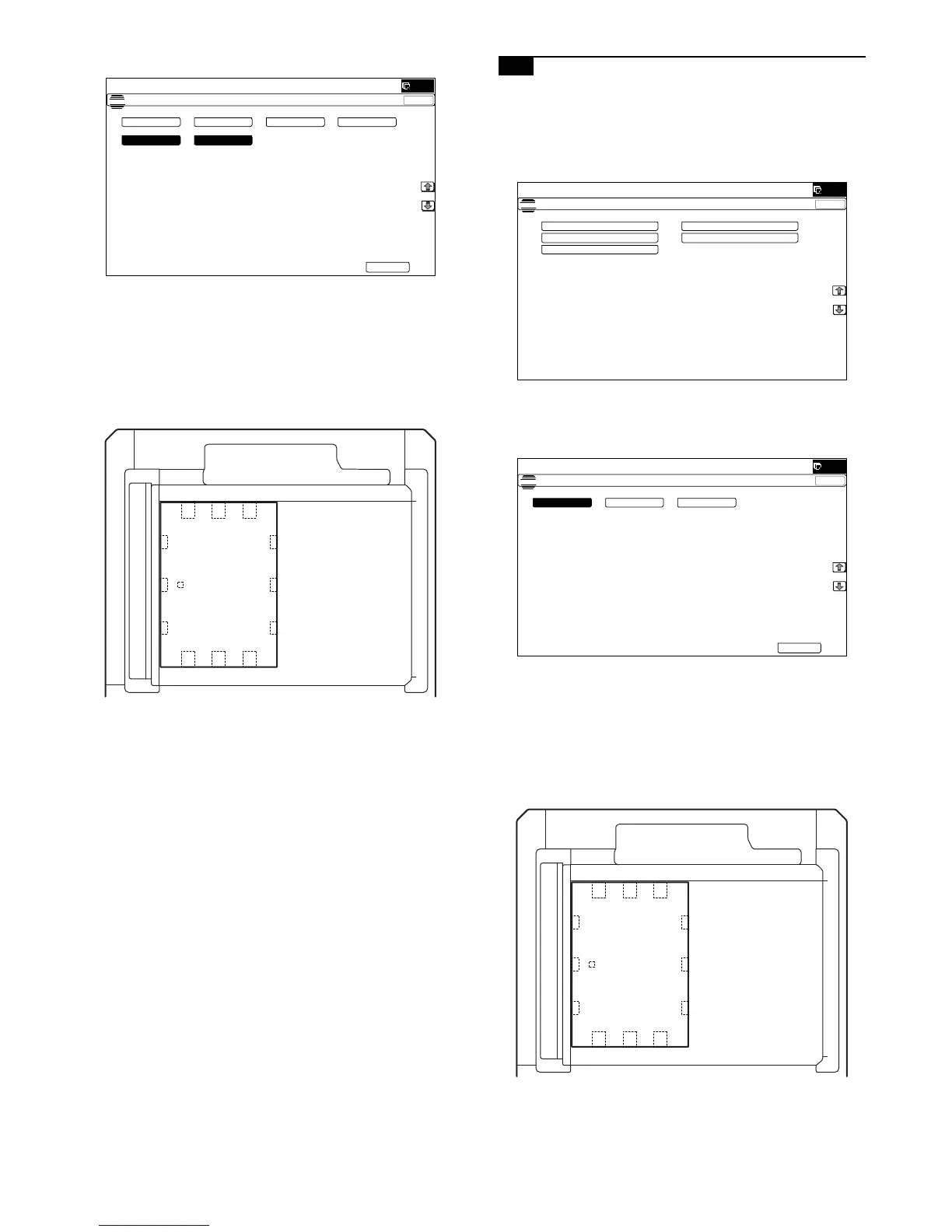

4) Select a paper feed tray to be adjusted.
5) Press [EXECUTE] key.
The adjustment pattern is printed out.
6) Set the adjustment pattern on the document table.
CAUTION: Fit the adjustment pattern correctly with the document
guide.
In this case, put 5 sheets of white paper on the printed
adjustment pattern.
7) Press [EXECUTE] key.
The following item is automatically adjustment.
* Print image lead edge image position adjustment
* Print image off-center adjustment
8) Press [OK] key.
The adjustment result becomes valid.
Perform procedures 4) to 7) for each paper feed tray.
3-B Copy mode image lead edge position,
image loss, void area, image off-center, sub
scanning direction image magnification
ratio automatic adjustment (Scanner)
(Document table mode)
1) Enter the SIM50-28 mode.
2) Select [OC ADJ] with the key.
3) Select the paper feed tray with paper in it with the key.
(Any paper size will do.)
4) Press [EXECUTE] key.
The adjustment pattern is printed out.
5) Set the adjustment pattern on the document table.
CAUTION: Fit the adjustment pattern correctly with the document
guide.
In this case, put 5 sheets of white paper on the printed
adjustment pattern.
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(


(;(&87(



0)7 &6 $'8&6
&6 &6
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(


2&$'- 63)$'-
6(78335,17$'- 5(68/7
'$7$



ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(


(;(&87(



0)7 &6 &6

Sharp MX-M314N Specifications

General

Print Technology	Laser
Print Speed	31 ppm
Standard Paper Capacity	1100 sheets
Duplex Printing	Yes
Max Scan Resolution	600 x 600 dpi
Copy Speed	31 cpm
Max Copy Resolution	600 x 600 dpi
Fax Capability	Optional
Network Connectivity	Ethernet
Functions	Print, Copy, Scan, Fax
Warm-up Time	20 seconds
Fax Transmission Speed	33.6 Kbps
Max Paper Size	A3
Scanner Type	Color
Display	7-inch color touchscreen
Original Size	A3
Operating System Compatibility	Windows, Mac, Linux
