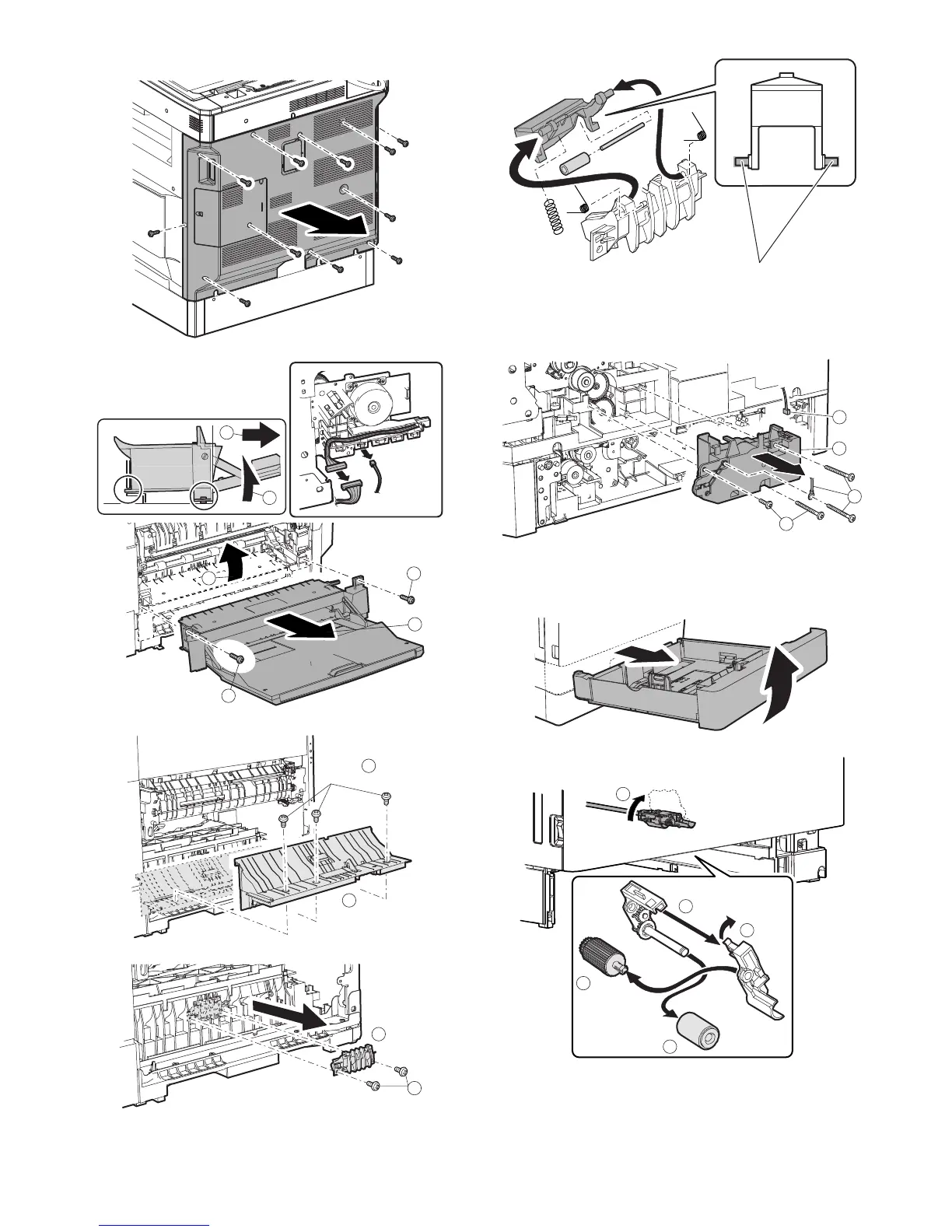

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 11
(2) Separation sheet
* Slightly apply grease GP501MR (UKOG-0012QSZZ) around the
axis. One rice grain for each.
Grease should not come out when assembling.
(3) Lift unit
B. Lower 500 sheets tray paper feed
(1) Paper feed roller/pickup roller
1
1
2
2
3
3
1)
1
2
2
1
1
1
1
2
1
3
2
4
4
