MX-M700N DSPF SECTION C – 17

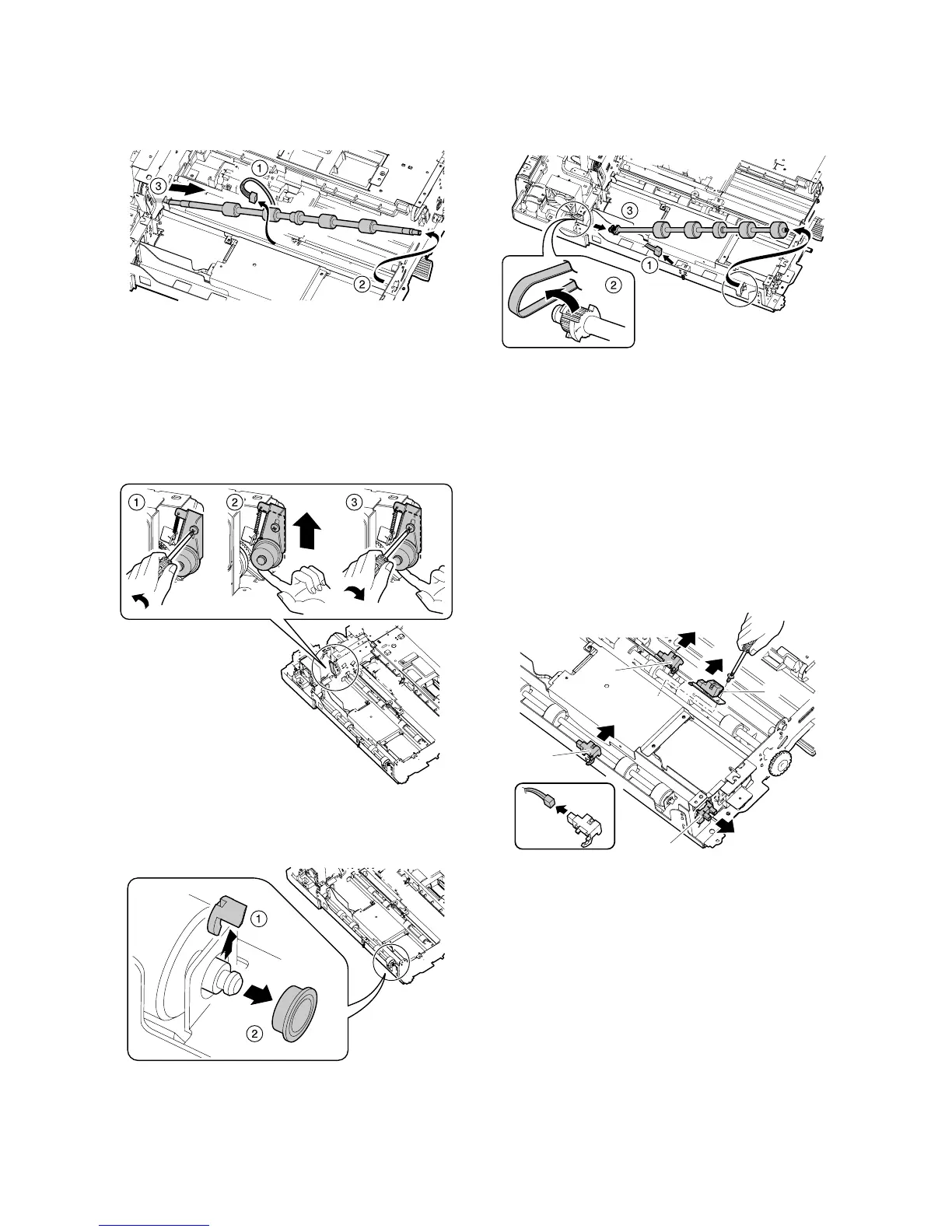

6) Disconnect the connector, and remove the No. 2 resist roller
drive in the arrow direction.
(5) Paper exit roller (Drive)
1) Remove the cabinet. (See “A-(1)-a. Cabinet”)
2) Remove the document tray unit.
(See “B-(1) Document tray unit”)
3) Loosen the screw, and lift the belt tension roller, and fix them
with the screws.
* When fixing, apply a tension to the spring.
4) Remove the resin E-ring, and remove the bearing.
5) Disconnect the connecter, and remove the paper exit roller
(Drive) in the arrow direction.
(6) DSPF document paper pass detector 3
(7) DSPF document paper pass detector 4
(8) DSPF paper exit detector
(9) DSPF open/close detector
1) Remove the cabinet. (See “A-(1)-a. Cabinet”)
2) Remove the document tray unit.
(See “B-(1) Document tray unit”)
3) Disconnect the connectors, and remove the DSPF document
paper pass detector 3 (A), the DSPF document paper pass
detector 4 (B), the DSPF paper exit detector (C), and the
DSPF open/close detector (D).
B
A
C
D
To Next Page
