Sharp MX-M620N

MX-M700N EXTERNAL VIEW AND INTERNAL STRUCTURE 5 – 19

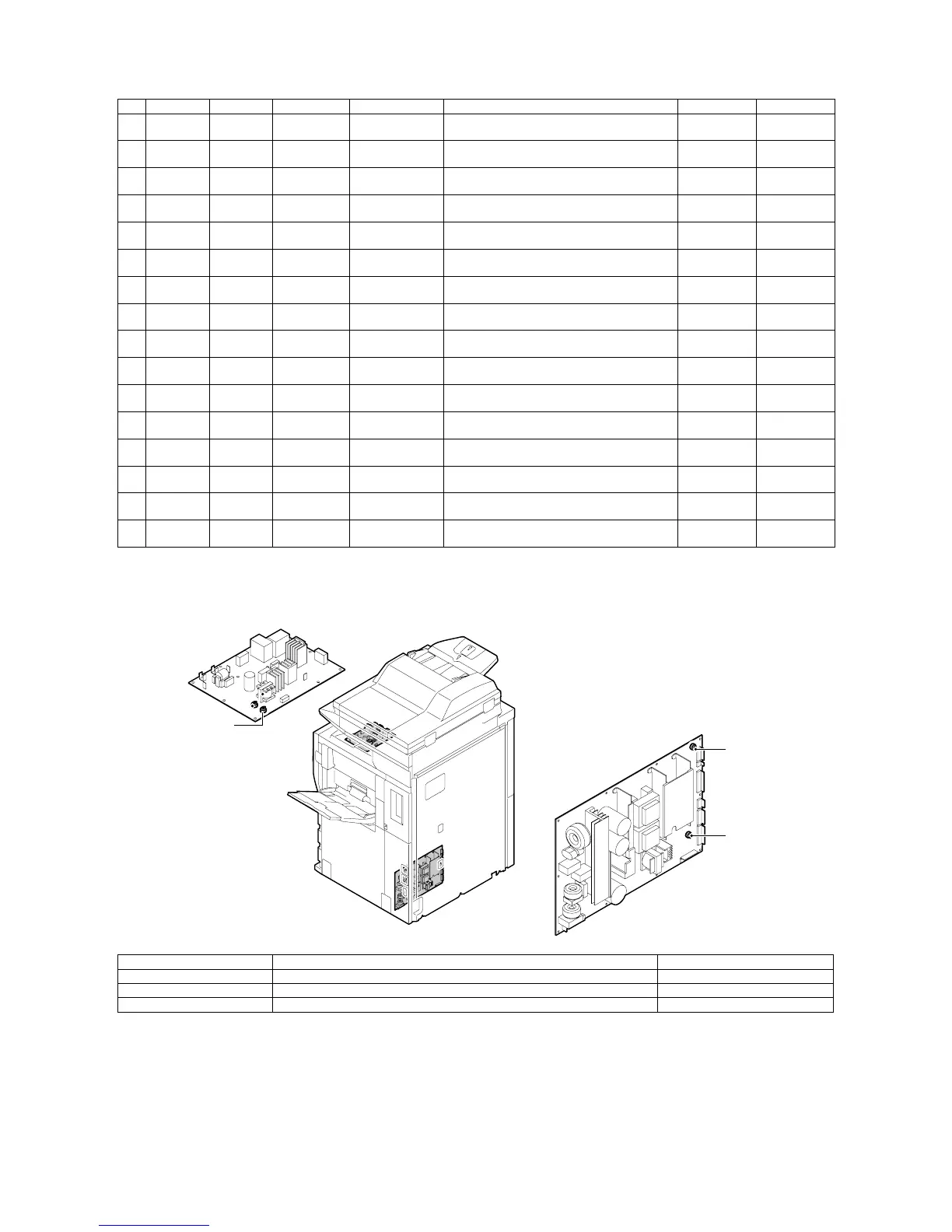

N. Adjustment volume
9 F1 Fuse Time lag 250V 15A DC power source overcurrent protection
(Main source)
DC main
power PWB
100V series
10 F2 Fuse Time lag 250V 3.15A Varistor overcurrent protection DC main
power PWB
100V series/
200V series
11 F3 Fuse Time lag 250V 5A MFP controller PWB power source protection
(12V1, 5V1)
DC main
power PWB
100V series/
200V series
12 F1 Fuse Time lag 250V 8A DC power source overcurrent protection
(Main source)
DC main
power PWB
200V series
13 F101 Fuse Time lag 250V 2A DC power source overcurrent protection
(Main source)
DC sub power
PWB
100V series/
200V series
14 F102 Fuse Time lag 250V 2A DC power source overcurrent protection
(Main source)
DC sub power
PWB
100V series/
200V series
15 F1 Fuse Immediate
decision type
250V 200mA LCD inverter circuit overcurrent protection LVDS/
INV
LCD INV PWB Common
16 F1 Fuse Time lag 250V 20A AC power source overcurrent protection
(Main source)
AC power
PWB EX100
100V system
17 F3 Fuse Time lag 250V 2.0A Thermal heater overcurrent protection AC power
PWB EX100
100V system
18 F5 Fuse Time lag 250V 2.5A MSW detection circuit overcurrent protection AC power
PWB EX100
100V system
19 F1, F2 Fuse Time lag 250V 10A AC power source overcurrent protection
(Main source)
AC power
PWBEX200
200V system
20 F3, F4 Fuse Time lag 250V 2.0A Thermal heater overcurrent protection AC power
PWBEX200
200V system
21 F5 Fuse Time lag 250V 2.5A MSW detection circuit overcurrent protection AC power
PWBEX200
200V system
22 HLTS1 Thermostat 120VAC 15A
240VAC 10A
Fusing roller overheat protection Fusing unit
23 HLTS2 Thermostat 120VAC 15A
240VAC 10A
Fusing roller overheat protection Fusing unit
24 HLTS3 Thermostat 120VAC 15A
240VAC 10A
Sub heat roller overheat protection Fusing unit
Name Function/Operation NOTE
RV102 DC sub power unit +12V power output voltage adjustment VR
RV201 DC main power unit +38V power output voltage adjustment VR
RV202 DC main power unit +24V power output voltage adjustment VR
No. Code Name Type Specifications Function/Operation Section NOTE
RV102
RV201
RV202
